Magnitude |
:3.4 |
| Date & Time (UTC) | 2010-08-23 21:22:54.4 |
| Date & Time (Local) | 1389/6/2 01:52:54.4 |

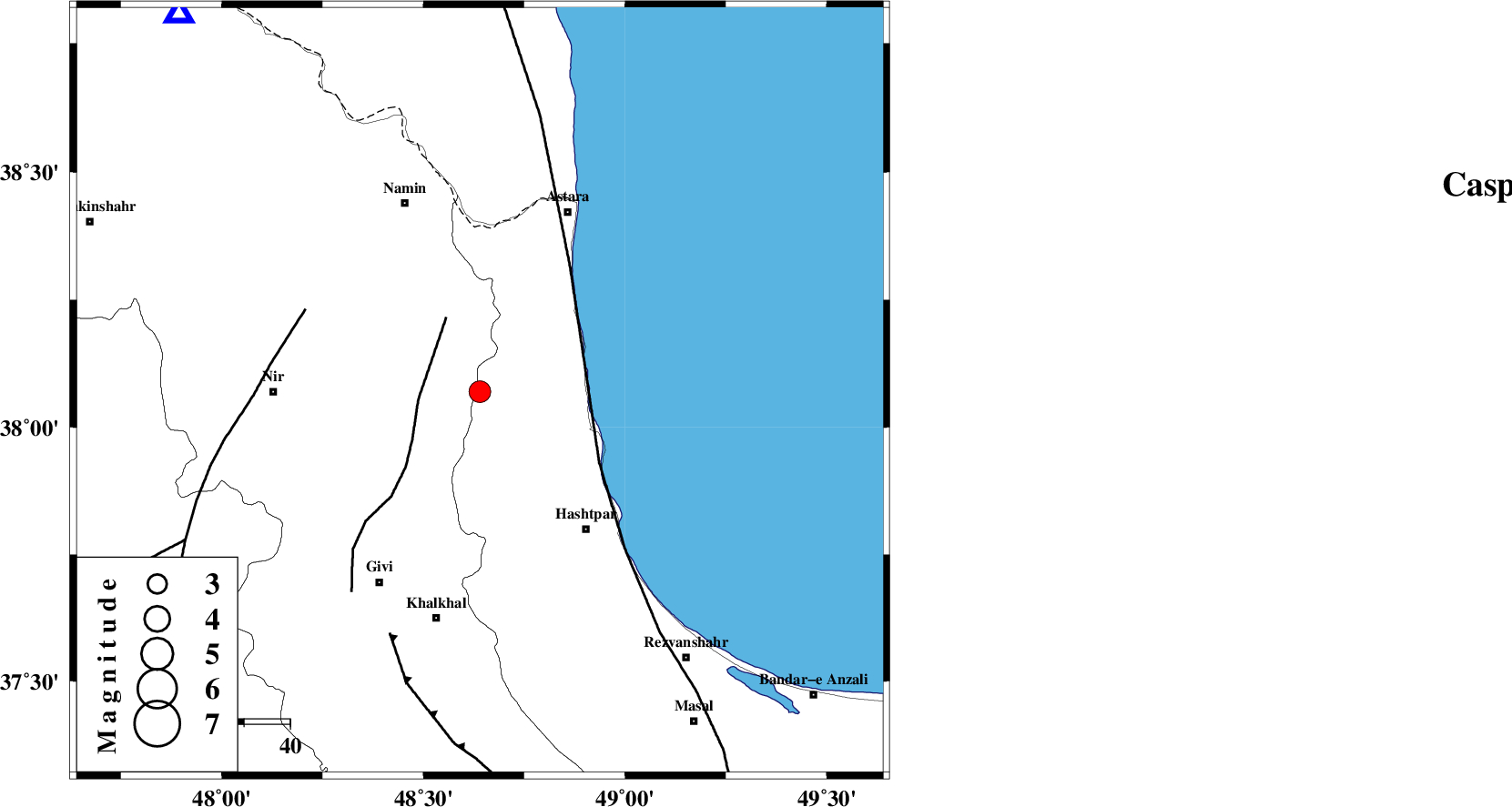

| Location | Lat:38.07 Lon: 48.64 |
| Region | Gilan Province, 44 km East of Nir |
Nearest Cities |
|
| 12 km East of Hir, Ardebil Province | |
| 18 km North East of Budalalu, Ardebil Province | |
| 22 km East of Mehmandust, Ardebil Province | |
| 24 km West of Hariq, Gilan Province | |
| 26 km South of Baibiglu, Ardebil Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 12 km | |
| TALESH_F (Length: 258 km) , Distance to epicenter: 30 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 42 km | |
| Number of Phases | 9 |
| RMS | 0.1 |
| Number of Stations | 9 |
| Error in Latitude | >4.1 km |
| Error in Longitude | 4 km |
| Error in Depth | 7.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 69525 | IIEES | THKV | N | 325.1 | 0.6 | 2010-08-23 21:24:25 | 2010-08-29 12:45:00 | n |
| 69526 | IIEES | THKV | E | 300.3 | 0.52 | 2010-08-23 21:24:25 | 2010-08-29 12:45:00 | n |
| 69527 | IIEES | CHTH | N | 113.1 | 0.67 | 2010-08-23 21:24:31 | 2010-08-29 12:45:00 | n |
| 69528 | IIEES | SNGE | N | 65.9 | 0.52 | 2010-08-23 21:24:33 | 2010-08-29 12:45:00 | n |
| 69529 | IIEES | SNGE | E | 67.8 | 0.52 | 2010-08-23 21:24:34 | 2010-08-29 12:45:00 | n |
| 69530 | IIEES | MAKU | N | 65.3 | 0.6 | 2010-08-23 21:24:48 | 2010-08-29 12:45:00 | n |
| 69531 | IIEES | DAMV | E | 48.3 | 0.52 | 2010-08-23 21:24:51 | 2010-08-29 12:45:00 | n |
| 69532 | IIEES | DAMV | N | 47.5 | 0.52 | 2010-08-23 21:24:52 | 2010-08-29 12:45:00 | n |
| 69533 | IIEES | ASAO | E | 45.6 | 0.68 | 2010-08-23 21:24:53 | 2010-08-29 12:45:00 | n |
| 69534 | IIEES | ASAO | N | 33.5 | 0.72 | 2010-08-23 21:25:00 | 2010-08-29 12:45:00 | n |
| 69535 | IIEES | GHVR | E | 66.4 | 0.64 | 2010-08-23 21:25:14 | 2010-08-29 12:45:00 | n |
| 69536 | IIEES | GHVR | N | 57.3 | 0.64 | 2010-08-23 21:25:19 | 2010-08-29 12:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2010-08-23 21:23:12 | -0.1 | y | 105 | 322 | |||
| IIEES | THKV | Z | Pn | E | 2010-08-23 21:23:41 | 0 | y | 312 | 139 | |||
| IIEES | CHTH | Z | Pn | E | 2010-08-23 21:23:43 | 0 | y | 327 | 137 | |||
| IIEES | SNGE | Z | Pn | E | 2010-08-23 21:23:46 | -0.1 | y | 350 | 200 | |||
| IIEES | MAKU | Z | Pn | E | 2010-08-23 21:23:49 | 0.2 | y | 372 | 294 | |||
| IIEES | DAMV | Z | Pn | E | 2010-08-23 21:23:53 | 0 | y | 402 | 131 | |||
| IIEES | ASAO | Z | Pn | E | 2010-08-23 21:23:54 | -0.1 | y | 410 | 162 | |||
| IIEES | GHVR | Z | Pn | E | 2010-08-23 21:24:00 | 0 | y | 462 | 149 | |||
| IIEES | KHMZ | Z | Pn | E | 2010-08-23 21:24:04 | 0.1 | y | 495 | 166 | |||
