Magnitude |
:4.2 |
| Date & Time (UTC) | 2010-07-23 00:56:40.9 |
| Date & Time (Local) | 1389/5/1 05:26:40.9 |
| Location | Lat:37.7 Lon: 56.97 |
| Region | Khorasan(north) Province, 17 km North of Ashkhaneh |
Nearest Cities |
|
| 6 km North of Pish qaleh, Khorasan(north) Province | |
| 17 km North of Ashkhaneh, Khorasan(north) Province | |
| 28 km South of Tangehzar, Khorasan(north) Province | |
| 29 km South West of Raz, Khorasan(north) Province | |
| 41 km North East of Shogan, Khorasan(north) Province | |
| Depth | 9 km |
| Agency | |

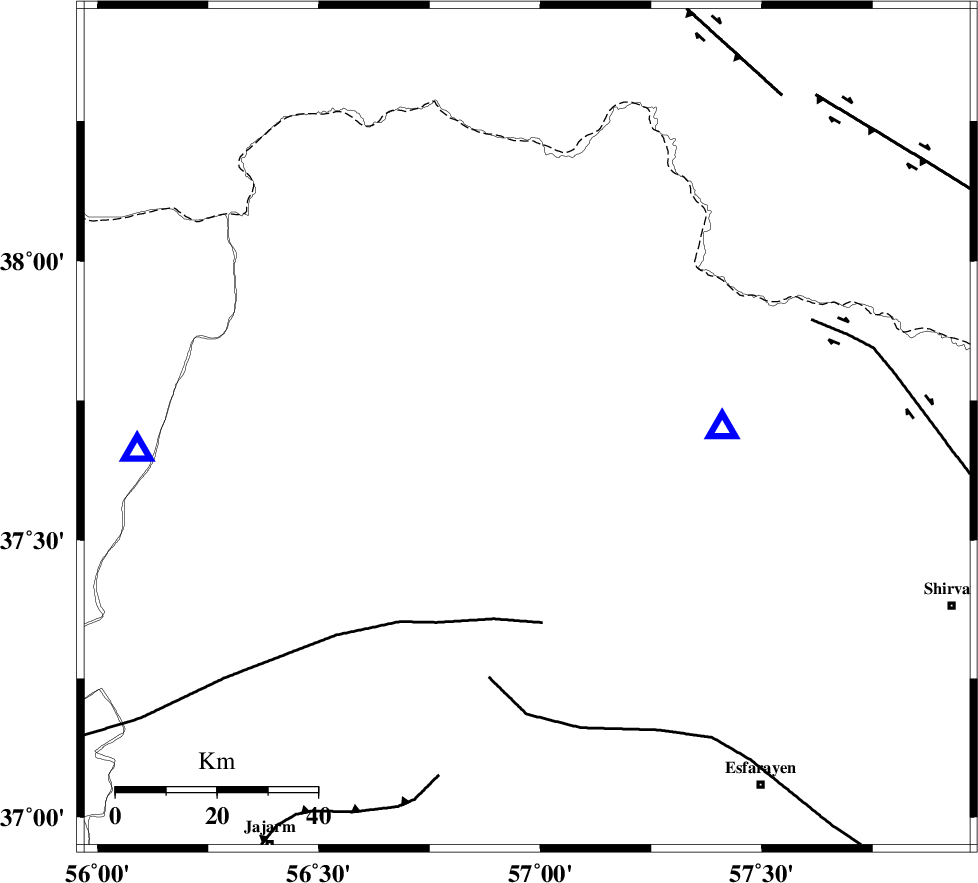

Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 39 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 50 km | |
| BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 60 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 10 |
| Error in Latitude | >8 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 66430 | IIEES | MRVT | E | 13699.5 | 0.28 | 2010-07-23 00:57:10 | 2010-07-23 01:16:00 | n |
| 66431 | IIEES | MRVT | N | 16085.8 | 0.6 | 2010-07-23 00:57:10 | 2010-07-23 01:16:00 | n |
| 66432 | IIEES | TABS | N | 338.2 | 0.8 | 2010-07-23 00:58:59 | 2010-07-23 01:16:00 | n |
| 66433 | IIEES | TABS | E | 153.6 | 0.76 | 2010-07-23 00:59:12 | 2010-07-23 01:16:00 | n |
| 66434 | IIEES | DAMV | E | 201.1 | 0.52 | 2010-07-23 00:59:15 | 2010-07-23 01:16:00 | n |
| 66435 | IIEES | DAMV | N | 239.4 | 0.68 | 2010-07-23 00:59:25 | 2010-07-23 01:16:00 | n |
| 66436 | IIEES | THKV | E | 170.7 | 0.64 | 2010-07-23 00:59:41 | 2010-07-23 01:16:00 | n |
| 66437 | IIEES | THKV | N | 147.8 | 0.68 | 2010-07-23 00:59:48 | 2010-07-23 01:16:00 | n |
| 66438 | IIEES | GHVR | E | 104.5 | 0.68 | 2010-07-23 00:59:56 | 2010-07-23 01:16:00 | n |
| 66439 | IIEES | GHVR | N | 61.1 | 0.68 | 2010-07-23 01:00:02 | 2010-07-23 01:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2010-07-23 00:56:48 | 0.1 | y | 39 | 90 | |||
| IIEES | MRVT | Z | Pg | E | 2010-07-23 00:56:54 | -0.3 | y | 77.4 | 267 | |||
| IIEES | MRVT | N | Sg | E | 2010-07-23 00:57:04 | 0.2 | y | 77.4 | 267 | |||
| IIEES | SHRO | Z | Pn | E | 2010-07-23 00:57:14 | -0.2 | y | 206 | 205 | |||
| IIEES | TABS | Z | Pn | E | 2010-07-23 00:57:45 | 0.2 | y | 450 | 178 | |||
| IIEES | DAMV | Z | Pn | E | 2010-07-23 00:57:51 | 0.2 | y | 502 | 244 | |||
| IIEES | CHTH | Z | Pn | E | 2010-07-23 00:57:58 | -0.2 | y | 558 | 251 | |||
| IIEES | THKV | Z | Pn | E | 2010-07-23 00:58:01 | -0.1 | y | 578 | 252 | |||
| IIEES | GHVR | Z | Pn | E | 2010-07-23 00:58:07 | 0.1 | y | 627 | 237 | |||
| IIEES | ASAO | Z | Pn | E | 2010-07-23 00:58:18 | 0.2 | y | 716 | 243 | |||
| IIEES | KRBR | Z | Pn | E | 2010-07-23 00:58:35 | 0 | y | 856 | 181 | |||
