Magnitude |
:3.2 |
| Date & Time (UTC) | 2009-10-05 05:08:42.4 |
| Date & Time (Local) | 1388/7/13 08:38:42.4 |

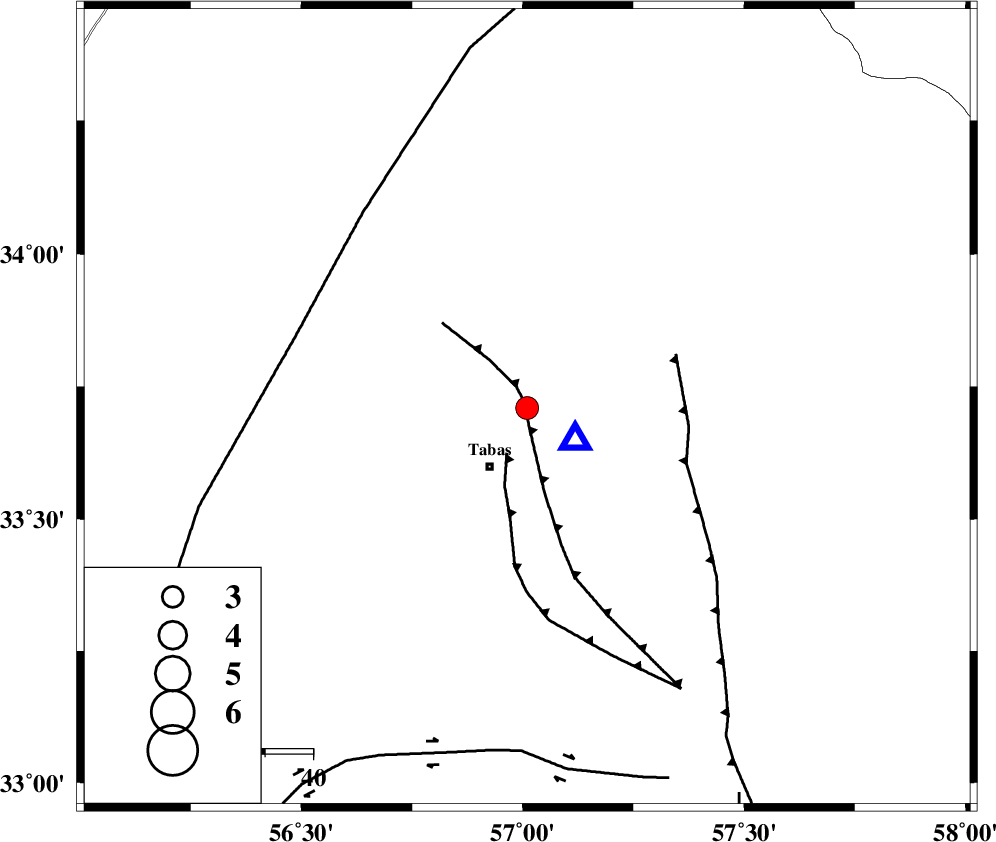

| Location | Lat:33.71 Lon: 57.01 |
| Region | Yazd Province, 15 km North of Tabas |
Nearest Cities |
|
| 15 km North of Tabas, Yazd Province | |
| 20 km North East of Oshtoqran, Yazd Province | |
| 21 km East of Jokhvah, Yazd Province | |
| 26 km South West of Reqqeh, Khorasan(center) Province | |
| 30 km North of Kerit, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 2 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 10 km | |
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 33 km | |
| Number of Phases | 7 |
| RMS | 0.6 |
| Number of Stations | 5 |
| Error in Latitude | >10.9 km |
| Error in Longitude | 7 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 59088 | IIEES | NASN | E | 19.9 | 0.25 | 2009-10-05 05:10:40 | 2010-02-08 11:55:00 | n |
| 59089 | IIEES | KRBR | N | 69.7 | 0.64 | 2009-10-05 05:10:46 | 2010-02-08 11:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2009-10-05 05:08:45 | -0.9 | y | 12.2 | 125 | |||
| IIEES | TABS | N | Sg | E | 2009-10-05 05:08:47 | -0.5 | y | 12.2 | 125 | |||
| IIEES | SHRO | Z | Pn | E | 2009-10-05 05:09:23 | -0.2 | y | 271 | 341 | |||
| IIEES | SHRT | Z | Pn | E | 2009-10-05 05:09:28 | 0.9 | y | 304 | 90 | |||
| IIEES | NASN | Z | Pn | E | 2009-10-05 05:09:40 | 0.3 | y | 405 | 257 | |||
| IIEES | NASN | N | Sg | E | 2009-10-05 05:10:35 | -0.4 | y | 405 | 257 | |||
| IIEES | KRBR | Z | Pn | E | 2009-10-05 05:09:42 | 0.9 | y | 414 | 183 | |||
