Magnitude |
:4.4 |
| Date & Time (UTC) | 2009-03-02 21:46:07.4 |
| Date & Time (Local) | 1387/12/13 01:16:07.4 |

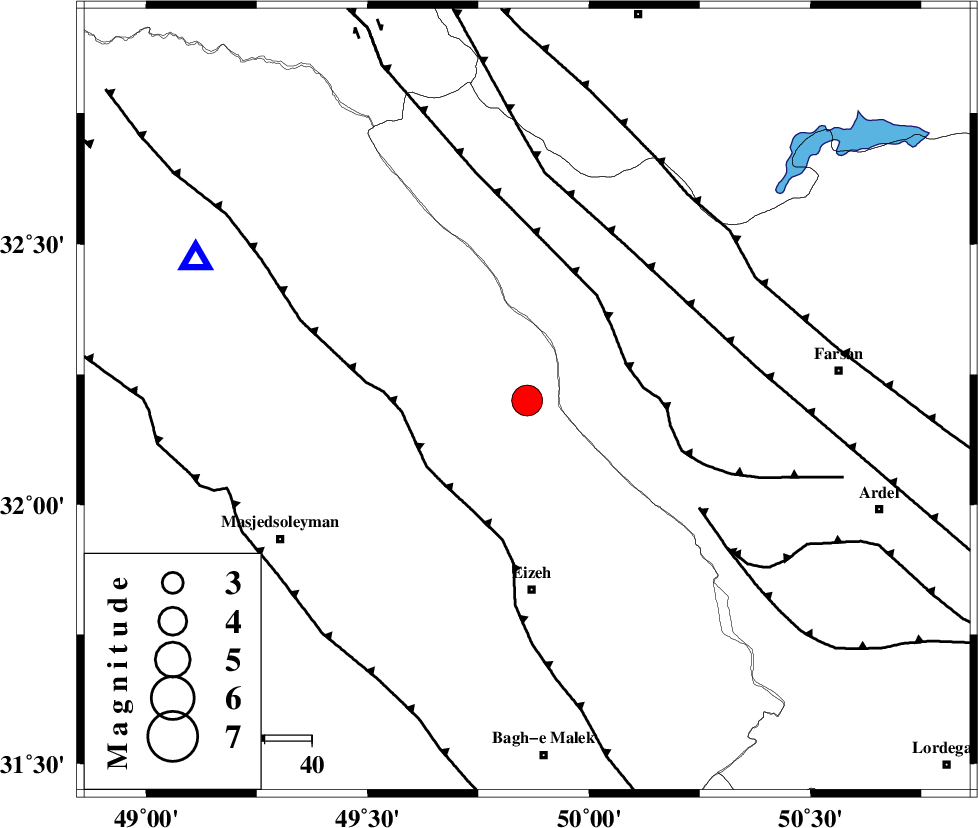

| Location | Lat:32.2 Lon: 49.86 |
| Region | 38 km South-West of Chelgard, Chaharmahal Bakhtiari Province |
Nearest Cities |
|
| 22 km North of Torshak, Khoozestan Province | |
| 30 km East of Paabshalal, Khoozestan Province | |
| 38 km North of Rasvand, Khoozestan Province | |
| 38 km South West of Chelgard, Chaharmahal Bakhtiari Province | |
| 39 km East of Qale-yekhvaju, Khoozestan Province | |
| Depth | 35 km |
| Agency | |
Faults within 150 km: |
|
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 22 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 25 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 39 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >7.9 km |
| Error in Longitude | 7.2 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 52084 | IIEES | SHGR | N | 21427 | 0.4 | 2009-03-02 21:46:43 | 2009-06-27 08:52:00 | n |
| 52085 | IIEES | SHGR | E | 16439.9 | 0.68 | 2009-03-02 21:46:47 | 2009-06-27 08:52:00 | n |
| 52086 | IIEES | GHVR | N | 1527 | 0.68 | 2009-03-02 21:47:39 | 2009-06-27 08:52:00 | n |
| 52087 | IIEES | GHVR | E | 1237.4 | 0.64 | 2009-03-02 21:47:42 | 2009-06-27 08:52:00 | n |
| 52088 | IIEES | SNGE | N | 436.4 | 0.72 | 2009-03-02 21:48:10 | 2009-06-27 08:52:00 | n |
| 52089 | IIEES | SNGE | E | 463.5 | 0.68 | 2009-03-02 21:48:12 | 2009-06-27 08:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2009-03-02 21:46:24 | -0.4 | y | 100 | 265 | |||
| IIEES | SHGR | N | Sg | E | 2009-03-02 21:46:37 | 0.3 | y | 100 | 265 | |||
| IIEES | GHVR | Z | Pn | E | 2009-03-02 21:46:49 | 0.9 | y | 284 | 27 | |||
| IIEES | GHVR | E | Sg | E | 2009-03-02 21:47:25 | 0 | y | 284 | 27 | |||
| IIEES | NASN | Z | Pn | E | 2009-03-02 21:46:48 | 0 | y | 285 | 76 | |||
| IIEES | SNGE | Z | Pn | E | 2009-03-02 21:47:02 | -0.1 | y | 397 | 325 | |||
| IIEES | THKV | Z | Pn | E | 2009-03-02 21:47:05 | 0 | y | 423 | 13 | |||
| IIEES | CHTH | Z | Pn | E | 2009-03-02 21:47:05 | -0.6 | y | 428 | 15 | |||
| IIEES | DAMV | Z | Pn | E | 2009-03-02 21:47:06 | -0.2 | y | 428 | 27 | |||
| IIEES | ZNJK | Z | Pn | E | 2009-03-02 21:47:16 | 0 | y | 508 | 348 | |||
