مشخصات زلزله

Magnitude	:3.6
Date & Time (UTC)	2007-12-06 21:02:04.1
Date & Time (Local)	1386/9/16  00:32:04.1

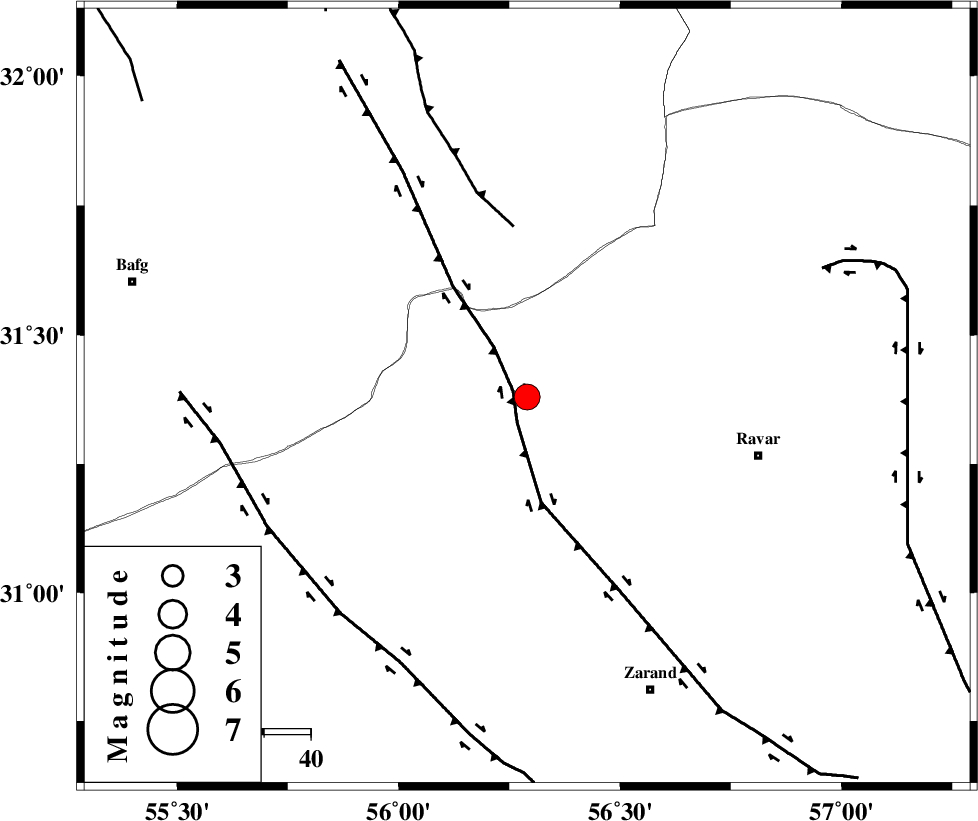

Location	Lat:31.38 Lon: 56.29
Region	50 km North-West of Ravar, Kerman Province
Nearest Cities
	2 km North of Jor, Kerman Province
	4 km of Kuhbanan, Kerman Province
	28 km North West of Toghroljerd, Kerman Province
	31 km East of Basab, Yazd Province
	33 km South of Asfih, Yazd Province
Depth	14 km
Agency
Faults within 150 km:
	KUHBANAN_F (Length: 189 km) , Distance to epicenter: 3 km
	JAFARABAD_F (Length: 60 km) , Distance to epicenter: 37 km
	DARIVAN_F (Length: 131 km) , Distance to epicenter: 62 km
Number of Phases	8
RMS	0.2
Number of Stations	7
Error in Latitude	>3.1 km
Error in Longitude	3.8 km
Error in Depth	6.4 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
40459	IIEES	KRBR	N	903.5	0.55	2007-12-06 21:02:57	2008-04-12 10:47:00	n
40460	IIEES	KRBR	E	1390.9	0.35	2007-12-06 21:02:57	2008-04-12 10:47:00	n
40461	IIEES	NASN	N	107	0.22	2007-12-06 21:03:51	2008-04-12 10:47:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KRBR	Z	Pg	E		2007-12-06 21:02:30	-0.1	y		161	164
IIEES	KRBR	N	Sg	E		2007-12-06 21:02:50	0.1	y		161	164
IIEES	NASN	Z	Pn	E		2007-12-06 21:02:57	0	y		365	297
IIEES	BNDS	Z	Pn	E		2007-12-06 21:03:06	-0.1	y		441	182
IIEES	GHIR	Z	Pn	E		2007-12-06 21:03:10	0	y		468	224
IIEES	ZHSF	Z	Pn	E		2007-12-06 21:03:10	0	y		473	113
IIEES	GHVR	Z	Pn	E		2007-12-06 21:03:24	0.3	y		584	307
IIEES	ASAO	Z	Pn	E		2007-12-06 21:03:36	-0.3	y		683	303
