Magnitude |
:3.4 |
| Date & Time (UTC) | 2006-10-07 18:15:31.2 |
| Date & Time (Local) | 1385/7/15 21:45:31.2 |

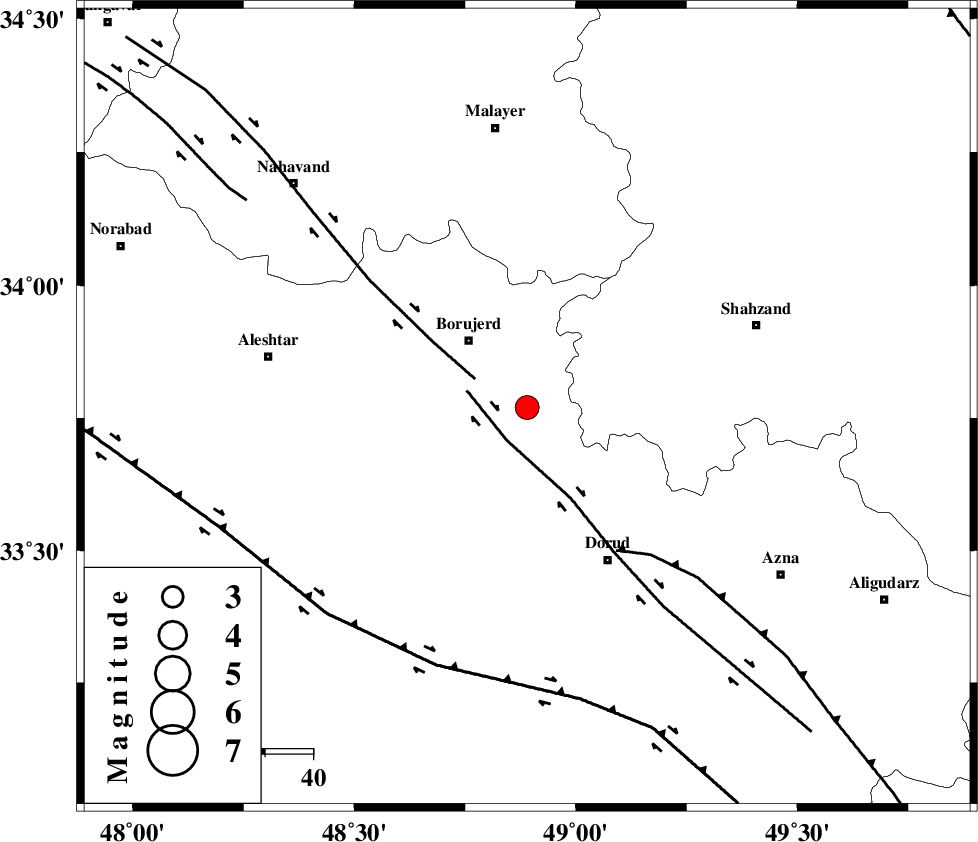

| Location | Lat:33.77 Lon: 48.89 |
| Region | 18 km South-East of Borujerd, Lorestan Province |
Nearest Cities |
|
| 11 km of Hemmatabad, Lorestan Province | |
| 11 km of Valanjerd, Lorestan Province | |
| 12 km North of Chalanchulan, Lorestan Province | |
| 16 km West of Hashian, Markazi Province | |
| 19 km South East of Borujerd, Lorestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DORUD (Length: 100 km) , Distance to epicenter: 8 km | |
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 12 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 35 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 36286 | IIEES | ASAO | E | 1006.7 | 0.56 | 2006-10-07 18:16:14 | 2007-01-07 07:24:00 | n |
| 36287 | IIEES | ASAO | N | 783.9 | 0.68 | 2006-10-07 18:16:16 | 2007-01-07 07:24:00 | n |
| 36288 | IIEES | SHGR | E | 850.3 | 0.36 | 2006-10-07 18:16:27 | 2007-01-07 07:24:00 | n |
| 36289 | IIEES | SHGR | N | 352.2 | 0.28 | 2006-10-07 18:16:27 | 2007-01-07 07:24:00 | n |
| 36290 | IIEES | SNGE | N | 401 | 0.54 | 2006-10-07 18:16:36 | 2007-01-07 07:24:00 | n |
| 36291 | IIEES | THKV | E | 154.8 | 0.6 | 2006-10-07 18:17:01 | 2007-01-07 07:24:00 | n |
| 36292 | IIEES | THKV | N | 129.6 | 0.52 | 2006-10-07 18:17:07 | 2007-01-07 07:24:00 | n |
| 36293 | IIEES | DAMV | N | 59.8 | 0.44 | 2006-10-07 18:17:16 | 2007-01-07 07:24:00 | n |
| 36294 | IIEES | DAMV | E | 58.8 | 0.72 | 2006-10-07 18:17:20 | 2007-01-07 07:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ASAO | Z | PG | E | 2006-10-07 18:15:53 | -0.3 | y | 136 | 50 | |||
| IIEES | ASAO | E | SG | E | 2006-10-07 18:16:10 | -0.1 | y | 136 | 50 | |||
| IIEES | SHGR | Z | PG | E | 2006-10-07 18:16:01 | 0 | y | 184 | 182 | |||
| IIEES | SNGE | Z | Pg | E | 2006-10-07 18:16:04 | -0.1 | y | 204 | 317 | |||
| IIEES | THKV | Z | PN | E | 2006-10-07 18:16:16 | 0.2 | y | 300 | 37 | |||
| IIEES | THKV | E | SG | E | 2006-10-07 18:16:55 | 0.2 | y | 300 | 37 | |||
| IIEES | DAMV | Z | PN | E | 2006-10-07 18:16:22 | 0.3 | y | 350 | 53 | |||
| IIEES | NASN | Z | PN | E | 2006-10-07 18:16:26 | -0.1 | y | 381 | 105 | |||
