مشخصات زلزله

Magnitude	:3.4
Date & Time (UTC)	2005-02-22 09:50:39.2
Date & Time (Local)	1383/12/4  13:20:39.2
Location	Lat:30.75 Lon: 56.88
Region
Nearest Cities
	9 km of Hejdak, Kerman Province
	10 km North of Khankuk, Kerman Province
	14 km of Hatkan, Kerman Province
	16 km North of Chatrud, Kerman Province
	20 km North of Hutak, Kerman Province
Depth	14 km
Agency

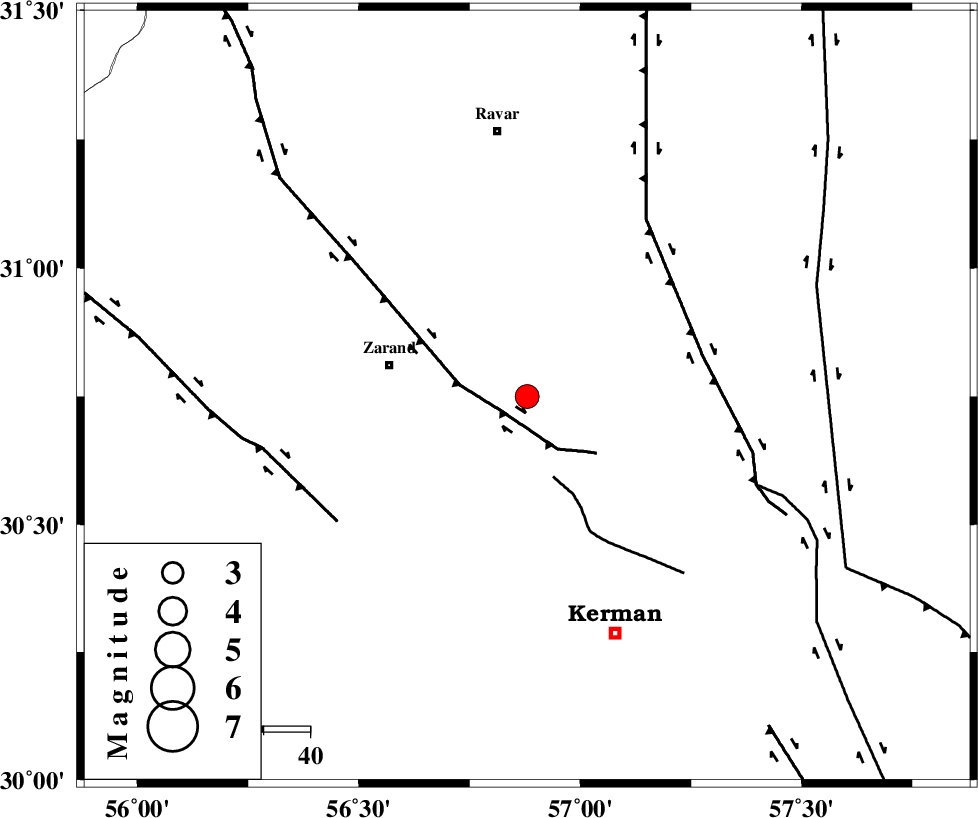

Faults within 150 km:
	KUHBANAN_F (Length: 189 km) , Distance to epicenter: 7 km
	CHATRUD_F (Length: 37 km) , Distance to epicenter: 18 km
	LAKARKUH_F (Length: 138 km) , Distance to epicenter: 39 km
Number of Phases	6
RMS	0.4
Number of Stations	4
Error in Latitude	>6.6 km
Error in Longitude	11 km
Error in Depth	17.7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
4876	IIEES	KRBR	N	1436.6	0.21	2005-02-22 09:51:19	2005-07-05 05:11:00	n
4877	IIEES	BNDS	N	74.2	0.56	2005-02-22 09:52:39	2005-07-05 05:11:00	n
4878	IIEES	ZHSF	N	73.4	0.51	2005-02-22 09:52:48	2005-07-05 05:11:00	n
4879	IIEES	NASN	N	78.9	0.54	2005-02-22 09:53:04	2005-07-05 05:11:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KRBR	Z	PG	E		2005-02-22 09:50:53	-0.7	y		85.37	188
IIEES	BNDS	Z	PN	E		2005-02-22 09:51:33	0.1	y		377.2	191
IIEES	BNDS	N	SG	E		2005-02-22 09:52:25	0.5	y		377.2	191
IIEES	ZHSF	Z	PN	E		2005-02-22 09:51:36	0.3	y		395.5	108
IIEES	NASN	Z	PN	E		2005-02-22 09:51:42	-0.4	y		448	302
IIEES	NASN	N	SG	E		2005-02-22 09:52:44	0.4	y		448	302
