Magnitude |
:3.2 |
| Date & Time (UTC) | 2024-01-06 17:25:56.7 |
| Date & Time (Local) | 1402/10/16 20:55:56.7 |

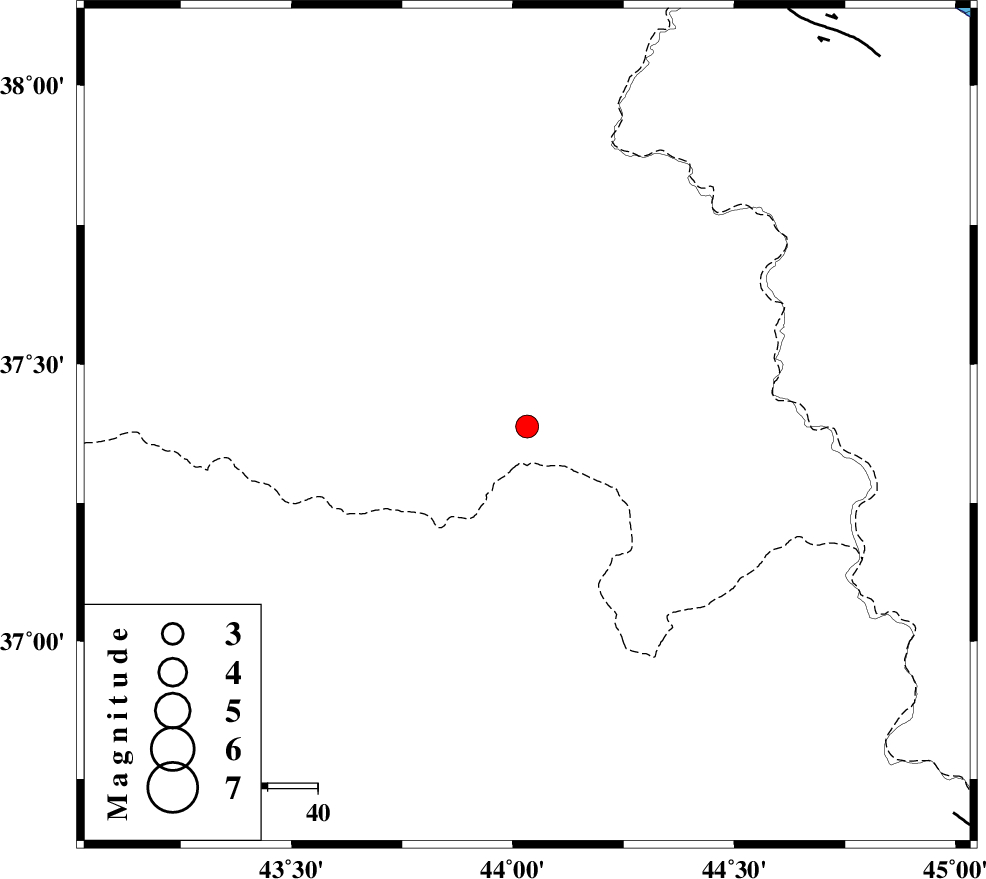

| Location | Lat:37.388 Lon: 44.032 |
| Region | Turkey, 93 km South-West of Orumiyeh |
Nearest Cities |
|
| 66 km South West of Sarv, Azarbaijan Gharbi Province | |
| 71 km South West of Movana, Azarbaijan Gharbi Province | |
| 72 km South West of Ravand sofla, Azarbaijan Gharbi Province | |
| 72 km West of Silvaneh, Azarbaijan Gharbi Province | |
| 73 km North West of Razhan, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| SALMAS (Length: 20 km) , Distance to epicenter: 97 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 115 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 126 km | |
| Number of Phases | 12 |
| RMS | 0.3 |
| Number of Stations | 12 |
| Error in Latitude | >2 km |
| Error in Longitude | 2 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 190076 | IIEES SC | MAHB | Z | 1 | 1 | 2024-01-06 17:26:24 | 2024-01-07 04:35:00 | n |
| 190077 | IIEES SC | SRSL | Z | 1 | 1 | 2024-01-06 17:26:26 | 2024-01-07 04:35:00 | n |
| 190078 | IIEES SC | MRD | Z | 0.3 | 1 | 2024-01-06 17:26:30 | 2024-01-07 04:35:00 | n |
| 190079 | IIEES SC | GURO | Z | 0.2 | 1 | 2024-01-06 17:26:31 | 2024-01-07 04:35:00 | n |
| 190080 | IIEES SC | GNI | Z | 0.1 | 1 | 2024-01-06 17:26:43 | 2024-01-07 04:35:00 | n |
| 190081 | IIEES SC | DHR | Z | 0.2 | 1 | 2024-01-06 17:26:50 | 2024-01-07 04:35:00 | n |
| 190082 | IIEES SC | GRMI | Z | 0.03 | 1 | 2024-01-06 17:26:50 | 2024-01-07 04:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MAHB | Z | EPg | E | 2024-01-06 17:26:24 | 0.8 | y | 0 | 164 | 115 | ||
| IIEES SC | AZR | Z | EPg | E | 2024-01-06 17:26:25 | -0.3 | y | 0 | 176 | 79 | ||
| IIEES SC | SRSL | Z | EPg | E | 2024-01-06 17:26:26 | -0.3 | y | 0 | 181 | 136 | ||
| IIEES SC | MRD | Z | EPn | E | 2024-01-06 17:26:30 | 0.2 | y | 0 | 208 | 45 | ||
| IIEES SC | GURO | Z | EPn | E | 2024-01-06 17:26:31 | 0 | y | 0 | 218 | 306 | ||
| IIEES SC | MAKU | Z | EPn | E | 2024-01-06 17:26:32 | 0.1 | y | 0 | 226 | 15 | ||
| IIEES SC | GNI | Z | EPn | E | 2024-01-06 17:26:43 | 0.1 | y | 0 | 313 | 11 | ||
| IIEES SC | DHR | Z | EPn | E | 2024-01-06 17:26:50 | 0.2 | y | 0 | 366 | 145 | ||
| IIEES SC | GRMI | Z | EPn | E | 2024-01-06 17:26:50 | -0.7 | y | 0 | 374 | 65 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2024-01-06 17:26:51 | -6 | n | 4 | 422 | 101 | ||
| IIEES SC | KCHF | Z | EPn | E | 2024-01-06 17:27:02 | 3 | n | 4 | 440 | 142 | ||
| IIEES SC | HGHA | Z | EPn | E | 2024-01-06 17:27:07 | 2.4 | n | 4 | 481 | 116 | ||
