Magnitude |
:3.1 |
| Date & Time (UTC) | 2023-07-20 04:12:27.3 |
| Date & Time (Local) | 1402/4/29 07:42:27.3 |

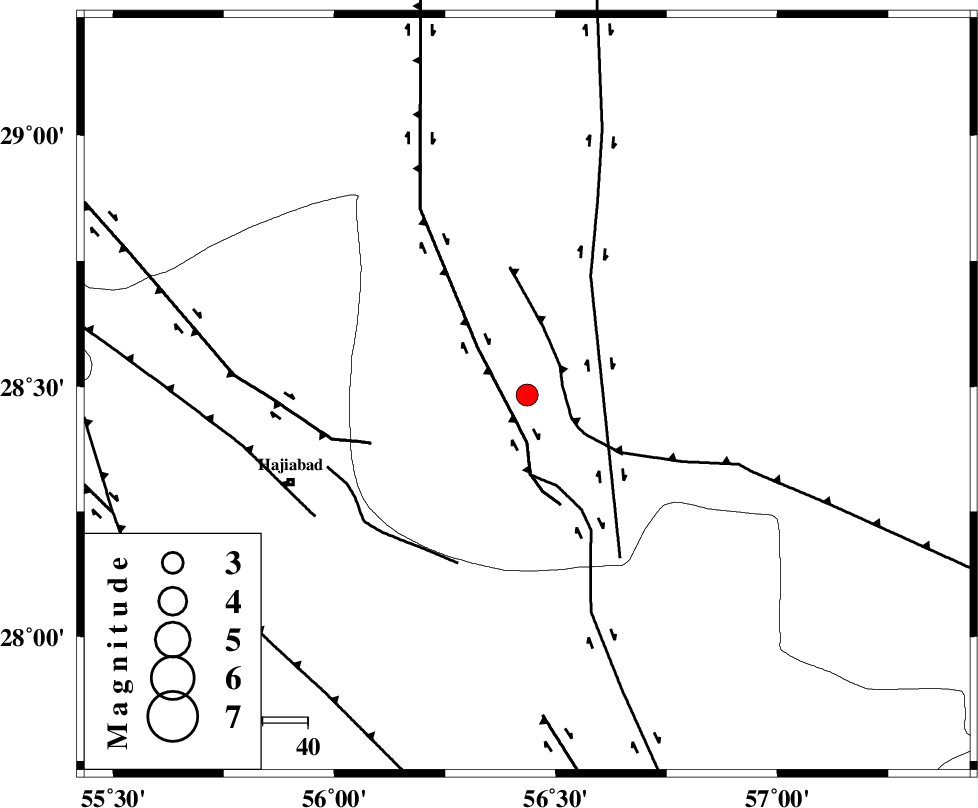

| Location | Lat:28.483 Lon: 56.435 |
| Region | Kerman Province, 56 km North-East of Hajiabad |
Nearest Cities |
|
| 6 km North of Shahmaran, Kerman Province | |
| 9 km North of Arzuieeh, Kerman Province | |
| 46 km North West of Sarkhan, Kerman Province | |
| 56 km North East of Fareqan, Hormozgan Province | |
| 56 km North East of Hajiabad, Hormozgan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 31 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 67 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 106 km | |
| Number of Phases | 20 |
| RMS | 0.5 |
| Number of Stations | 20 |
| Error in Latitude | >1.1 km |
| Error in Longitude | 1.1 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 184331 | IIEES SC | BNDS | Z | 0.8 | 1 | 2023-07-20 04:12:47 | 2023-07-22 09:43:00 | n |
| 184332 | IIEES SC | BNDS | Z | 0.8 | 1 | 2023-07-20 04:13:03 | 2023-07-22 09:43:00 | n |
| 184333 | IIEES SC | KBAM | Z | 0.4 | 1 | 2023-07-20 04:13:00 | 2023-07-22 09:43:00 | n |
| 184334 | IIEES SC | JSSH | Z | 0.1 | 1 | 2023-07-20 04:13:12 | 2023-07-22 09:43:00 | n |
| 184335 | IIEES SC | UOSS | Z | 0.03 | 1 | 2023-07-20 04:13:24 | 2023-07-22 09:43:00 | n |
| 184336 | IIEES SC | TAFT | Z | 0.03 | 1 | 2023-07-20 04:13:27 | 2023-07-22 09:43:00 | n |
| 184337 | IIEES SC | ZHSF | Z | 0.02 | 1 | 2023-07-20 04:13:30 | 2023-07-22 09:43:00 | n |
| 184338 | IIEES SC | BSRN | Z | 0.03 | 1 | 2023-07-20 04:13:33 | 2023-07-22 09:43:00 | n |
| 184339 | IIEES SC | YZKH | Z | 0.02 | 1 | 2023-07-20 04:13:33 | 2023-07-22 09:43:00 | n |
| 184340 | IIEES SC | AHRM | Z | 0.01 | 1 | 2023-07-20 04:13:37 | 2023-07-22 09:43:00 | n |
| 184341 | IIEES SC | KLNJ | Z | 0.02 | 1 | 2023-07-20 04:13:43 | 2023-07-22 09:43:00 | n |
| 184342 | IIEES SC | TABS | Z | 0.02 | 1 | 2023-07-20 04:13:47 | 2023-07-22 09:43:00 | n |
| 184343 | IIEES SC | NASN | Z | 0.01 | 1 | 2023-07-20 04:13:49 | 2023-07-22 09:43:00 | n |
| 184344 | IIEES SC | SRVN | Z | 0.02 | 1 | 2023-07-20 04:13:49 | 2023-07-22 09:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BNDS | Z | EPg | E | 2023-07-20 04:12:47 | -0.2 | y | 0 | 123 | 192 | ||
| IIEES SC | BNDS | Z | ESg | E | 2023-07-20 04:13:03 | 0.2 | y | 0 | 123 | 192 | ||
| IIEES SC | KRBR | Z | EPg | E | 2023-07-20 04:12:45 | -9.9 | n | 4 | 169 | 11 | ||
| IIEES SC | KBAM | Z | EPn | E | 2023-07-20 04:13:00 | -0.8 | y | 0 | 210 | 70 | ||
| IIEES SC | JSSH | Z | EPn | E | 2023-07-20 04:13:12 | -0.2 | y | 0 | 300 | 162 | ||
| IIEES SC | GHIR | Z | EPn | E | 2023-07-20 04:13:17 | 0 | y | 0 | 339 | 266 | ||
| IIEES SC | LMD1 | Z | EPn | E | 2023-07-20 04:13:18 | 0.5 | y | 0 | 346 | 249 | ||
| IIEES SC | MEH | Z | EPn | E | 2023-07-20 04:13:20 | -0.3 | y | 0 | 367 | 331 | ||
| IIEES SC | UOSS | Z | EPn | E | 2023-07-20 04:13:24 | 0.7 | y | 0 | 393 | 183 | ||
| IIEES SC | TAFT | Z | EPn | E | 2023-07-20 04:13:27 | -0.2 | y | 0 | 420 | 329 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2023-07-20 04:13:30 | 0.9 | y | 0 | 440 | 74 | ||
| IIEES SC | BSRN | Z | EPn | E | 2023-07-20 04:13:33 | 0.4 | y | 0 | 465 | 34 | ||
| IIEES SC | IRSR | Z | EPn | E | 2023-07-20 04:13:32 | -0.5 | y | 0 | 468 | 111 | ||
| IIEES SC | YZKH | Z | EPn | E | 2023-07-20 04:13:33 | -0.2 | y | 0 | 468 | 338 | ||
| IIEES SC | AHRM | Z | EPn | E | 2023-07-20 04:13:37 | -0.6 | y | 0 | 504 | 275 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2023-07-20 04:13:43 | -0.1 | y | 0 | 546 | 301 | ||
| IIEES SC | TABS | Z | EPn | E | 2023-07-20 04:13:47 | 0.7 | y | 0 | 576 | 7 | ||
| IIEES SC | NASN | Z | EPn | E | 2023-07-20 04:13:49 | 0.1 | y | 0 | 592 | 324 | ||
| IIEES SC | SRVN | Z | EPn | E | 2023-07-20 04:13:49 | 0.1 | y | 0 | 599 | 102 | ||
| IIEES SC | KKHK | Z | EPn | E | 2023-07-20 04:13:57 | -0.1 | y | 0 | 661 | 18 | ||
