Magnitude |
:3 |
| Date & Time (UTC) | 2018-09-21 18:36:29.5 |
| Date & Time (Local) | 1397/6/30 23:06:29.5 |

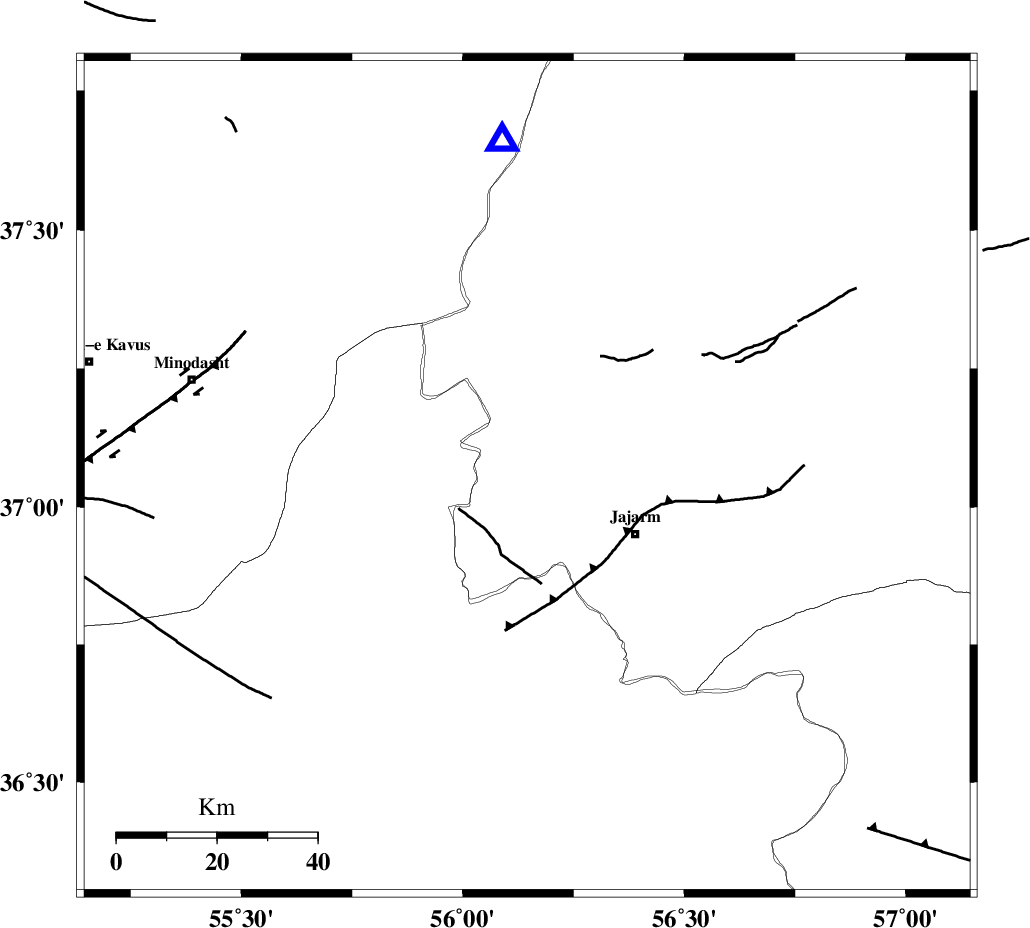

| Location | Lat:37.054 Lon: 56.145 |
| Region | Khorasan(north) Province, 25 km North-West of Jajarm |
Nearest Cities |
|
| 15 km North West of Garmeh, Khorasan(north) Province | |
| 25 km North West of Jajarm, Khorasan(north) Province | |
| 32 km North East of Nardin, Semnan Province | |
| 40 km East of Rezvan, Semnan Province | |
| 46 km North East of Qaleh qafeh, Semnan Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 15 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 23 km | |
| MEYAMEY_F (Length: 141 km) , Distance to epicenter: 59 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 12 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 5.8 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 136930 | IIEES | TABS | N | 14.3 | 0.56 | 2018-09-21 18:38:31 | 2018-09-22 06:36:00 | n |
| 136931 | IIEES | DAMV | N | 15.7 | 0.49 | 2018-09-21 18:38:31 | 2018-09-22 06:36:00 | n |
| 136932 | IIEES | DAMV | E | 22.6 | 0.49 | 2018-09-21 18:38:40 | 2018-09-22 06:36:00 | n |
| 136933 | IIEES | THKV | N | 12.5 | 0.41 | 2018-09-21 18:38:57 | 2018-09-22 06:36:00 | n |
| 136934 | IIEES | THKV | E | 13.9 | 0.47 | 2018-09-21 18:38:58 | 2018-09-22 06:36:00 | n |
| 136935 | IIEES | GHVR | E | 8.7 | 0.41 | 2018-09-21 18:39:06 | 2018-09-22 06:36:00 | n |
| 136936 | IIEES | GHVR | N | 8.4 | 0.49 | 2018-09-21 18:39:17 | 2018-09-22 06:36:00 | n |
| 136937 | IIEES | YZKH | E | 5.8 | 0.64 | 2018-09-21 18:39:13 | 2018-09-22 06:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2018-09-21 18:36:41 | -0.26 | y | 67.4 | 356 | |||
| IIEES | SHRO | Z | Pg | E | 2018-09-21 18:36:49 | -0.29 | y | 117 | 186 | |||
| IIEES | BJRD | Z | Pg | E | 2018-09-21 18:36:52 | 0.07 | y | 133 | 57 | |||
| IIEES | TABS | Z | Pn | E | 2018-09-21 18:37:26 | 0.52 | y | 388 | 167 | |||
| IIEES | DAMV | Z | Pn | E | 2018-09-21 18:37:28 | -0.13 | y | 407 | 248 | |||
| IIEES | CHTH | Z | Pn | E | 2018-09-21 18:37:36 | 0.38 | y | 467 | 256 | |||
| IIEES | THKV | Z | Pn | E | 2018-09-21 18:37:39 | 1.11 | y | 488 | 257 | |||
| IIEES | GHVR | Z | Pn | E | 2018-09-21 18:37:43 | -0.34 | y | 527 | 239 | |||
| IIEES | SHRT | Z | Pn | E | 2018-09-21 18:37:44 | 0.13 | y | 534 | 134 | |||
| IIEES | YZKH | Z | Pn | E | 2018-09-21 18:37:44 | -0.44 | y | 536 | 196 | |||
| IIEES | NASN | Z | Pn | E | 2018-09-21 18:37:47 | -0.41 | y | 562 | 214 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-09-21 18:38:00 | -0.43 | y | 666 | 269 | |||
