Magnitude
 :3.1
Date & Time (UTC) 2018-08-20 22:43:21.7
Date & Time (Local) 1397/5/30  03:13:21.7

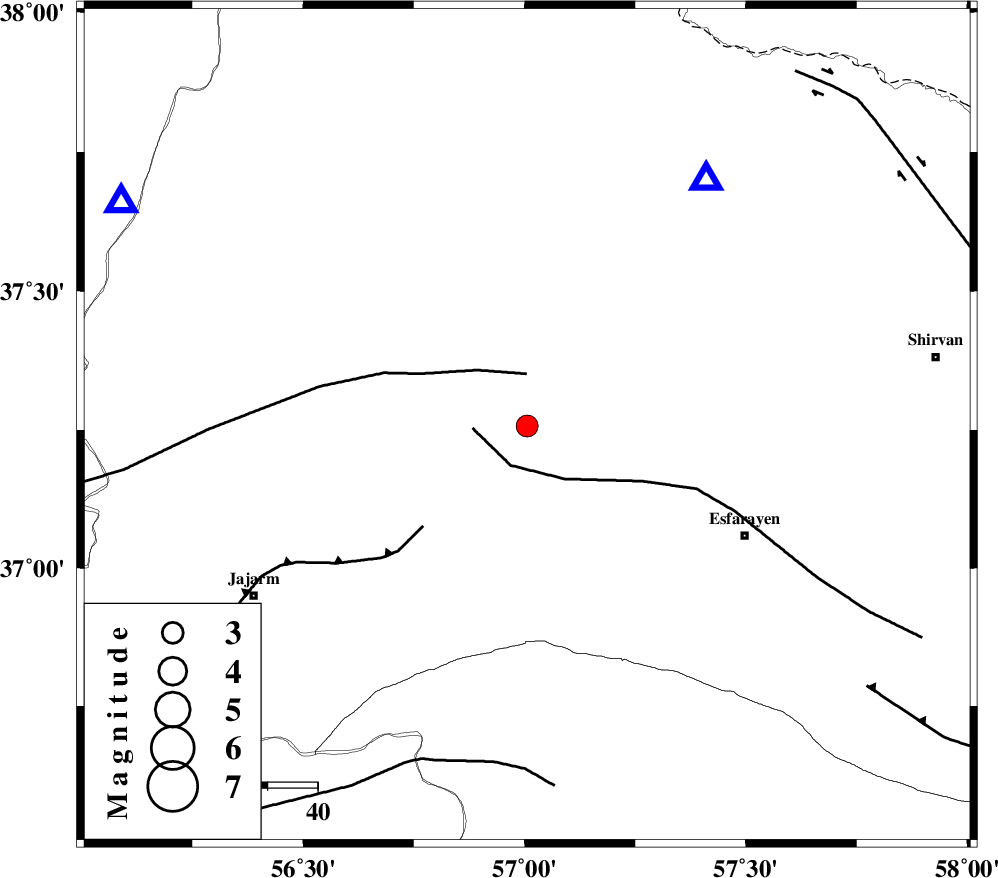

Location Lat:37.257 Lon: 57.006
Region Khorasan(north) Province, 33 km South of Ashkhaneh
Nearest Cities
18 km East of Shogan, Khorasan(north) Province
22 km North West of Cheharborj, Khorasan(north) Province
33 km South of Ashkhaneh, Khorasan(north) Province
34 km North West of Zarqabad, Khorasan(north) Province
37 km South West of Bojnurd, Khorasan(north) Province
Depth 15 km
Agency
Faults within 150 km:
ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 9 km
ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 10 km
JAJARAM_F (Length: 77 km) , Distance to epicenter: 29 km
Number of Phases 8
RMS 0.3
Number of Stations 6
Error in Latitude >2.7 km
Error in Longitude 3.1 km
Error in Depth 6.2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
135950IIEESTABSN 17.70.612018-08-20 22:45:282018-08-21 07:24:00n
135951IIEESSHRTE 8.30.892018-08-20 22:45:512018-08-21 07:24:00n
135952IIEESYZKHN 8.90.512018-08-20 22:46:192018-08-21 07:24:00n
135953IIEESYZKHE 12.80.512018-08-20 22:46:272018-08-21 07:24:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESBJRDZ Pg E2018-08-20 22:43:320.12y60.836
IIEESBJRDN S E2018-08-20 22:43:40-0.05y60.836
IIEESMRVTZ Pg E2018-08-20 22:43:37-0.24y92.6299
IIEESMRVTE Sg E2018-08-20 22:43:490.13y92.6299
IIEESTABSZ Pn E2018-08-20 22:44:190.32y400179
IIEESSHRTZ Pn E2018-08-20 22:44:310.19y499142
IIEESYZKHZ Pn E2018-08-20 22:44:410.03y583203
IIEESBSRNZ Pn E2018-08-20 22:44:45-0.68y618161
