Magnitude |
:2.2 |
| Date & Time (UTC) | 2018-08-19 20:51:18.8 |
| Date & Time (Local) | 1397/5/29 01:21:18.8 |

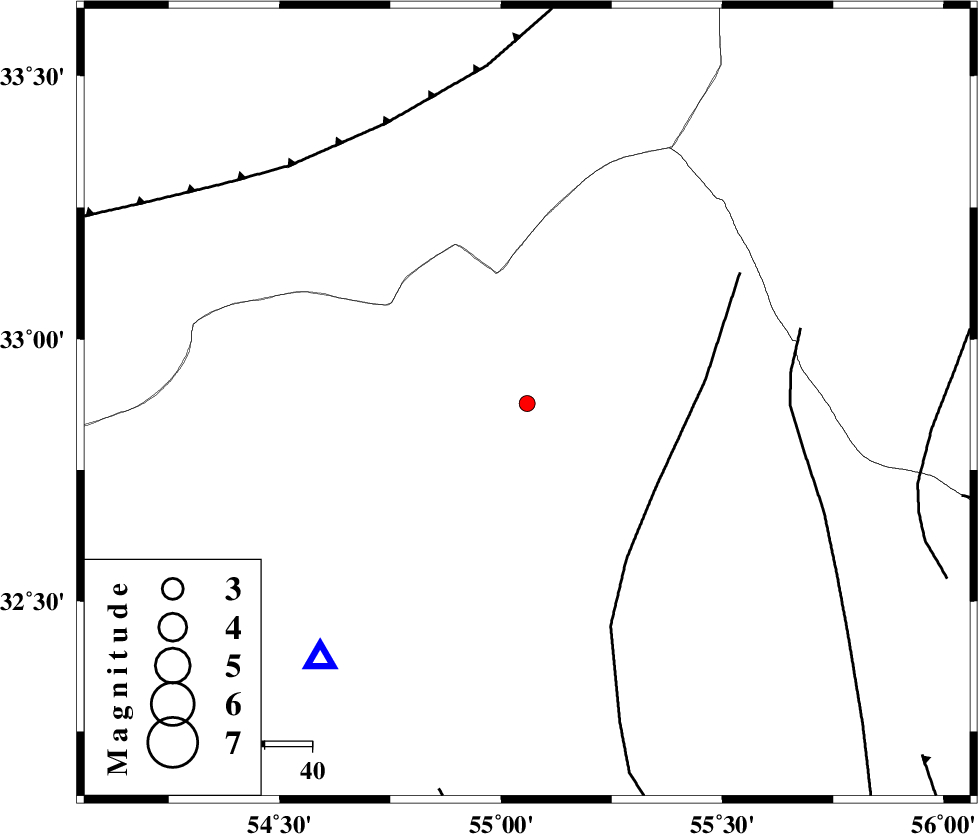

| Location | Lat:32.877 Lon: 55.059 |
| Region | Yazd Province, 116 km North-East of Ardakan |
Nearest Cities |
|
| 28 km South East of Hajiabad, Yazd Province | |
| 38 km North East of Zarrin, Yazd Province | |
| 49 km South West of Robat-e posht-e badam, Yazd Province | |
| 70 km South West of Mehranjan, Esfahan Province | |
| 70 km North East of Kharaneq, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 33 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 55 km | |
| BIABANAK_F (Length: 162 km) , Distance to epicenter: 66 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >5 km |
| Error in Longitude | 4 km |
| Error in Depth | 6.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135888 | IIEES | YZKH | E | 94.5 | 0.28 | 2018-08-19 20:51:40 | 2018-08-20 03:35:00 | n |
| 135889 | IIEES | NASN | N | 25.4 | 0.28 | 2018-08-19 20:52:19 | 2018-08-20 03:35:00 | n |
| 135890 | IIEES | NASN | E | 16.5 | 0.48 | 2018-08-19 20:52:20 | 2018-08-20 03:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2018-08-19 20:51:31 | 0.14 | y | 69.5 | 219 | |||
| IIEES | YZKH | N | Sg | E | 2018-08-19 20:51:39 | -0.1 | y | 69.5 | 219 | |||
| IIEES | TABS | Z | Pn | E | 2018-08-19 20:51:52 | 0.1 | y | 210 | 65 | |||
| IIEES | TABS | N | Sg | E | 2018-08-19 20:52:18 | -0.09 | y | 210 | 65 | |||
| IIEES | NASN | Z | Pn | E | 2018-08-19 20:51:52 | -0.05 | y | 211 | 268 | |||
