Magnitude |
:3.4 |
| Date & Time (UTC) | 2018-07-24 15:40:23.6 |
| Date & Time (Local) | 1397/5/2 20:10:23.6 |

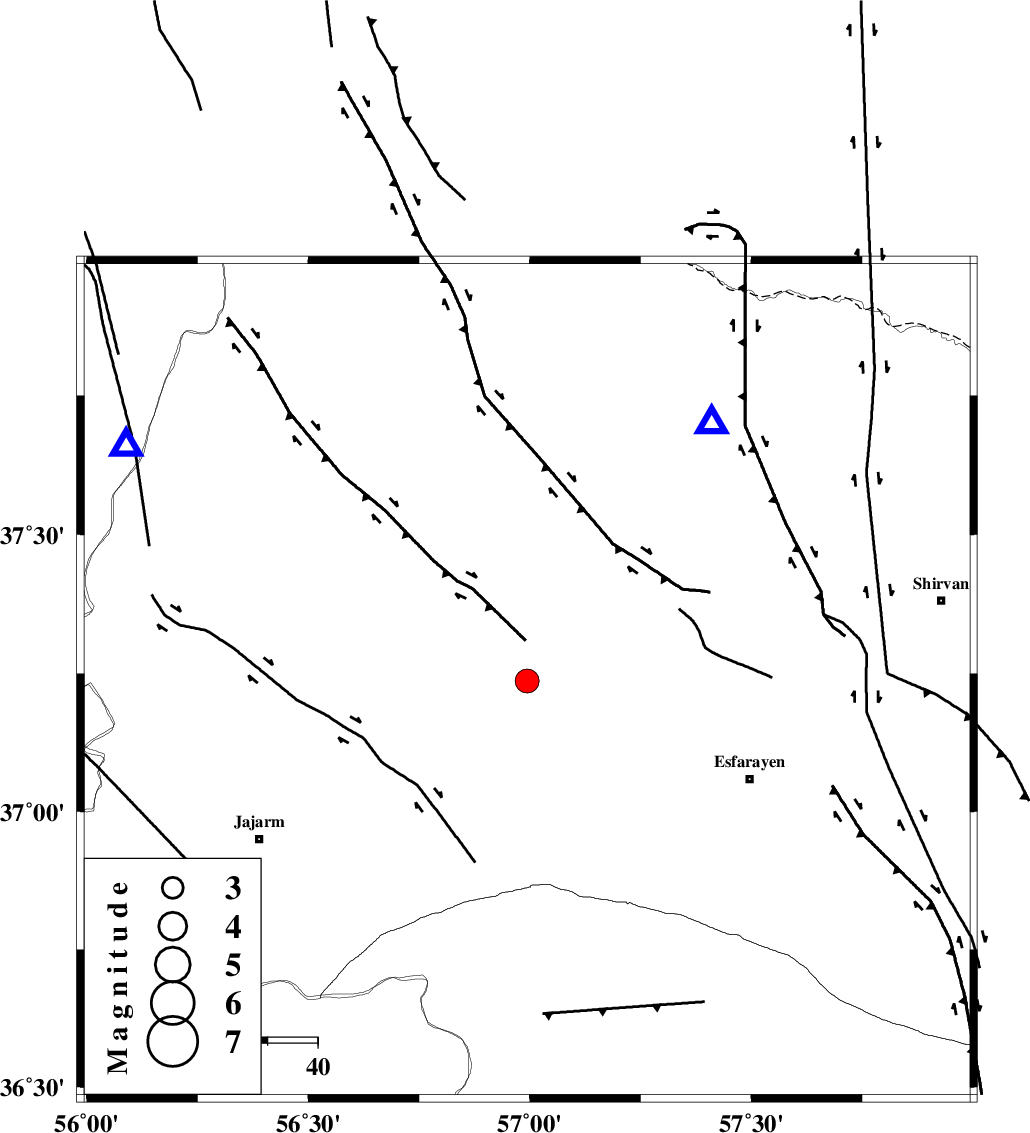

| Location | Lat:37.236 Lon: 56.994 |
| Region | Khorasan(north) Province, 35 km South of Ashkhaneh |
Nearest Cities |
|
| 18 km South East of Shogan, Khorasan(north) Province | |
| 22 km North West of Cheharborj, Khorasan(north) Province | |
| 33 km North West of Zarqabad, Khorasan(north) Province | |
| 35 km South of Ashkhaneh, Khorasan(north) Province | |
| 40 km North West of Eraj, Khorasan(north) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 6 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 13 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 27 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 5.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 135127 | IIEES | MRVT | E | 1118.1 | 0.43 | 2018-07-24 15:40:56 | 2018-07-25 09:14:00 | n |
| 135128 | IIEES | SHRO | E | 300 | 0.49 | 2018-07-24 15:41:25 | 2018-07-25 09:14:00 | n |
| 135129 | IIEES | TABS | N | 39.9 | 0.66 | 2018-07-24 15:42:28 | 2018-07-25 09:14:00 | n |
| 135130 | IIEES | DAMV | N | 35.4 | 0.45 | 2018-07-24 15:42:54 | 2018-07-25 09:14:00 | n |
| 135131 | IIEES | DAMV | E | 24.8 | 0.32 | 2018-07-24 15:43:00 | 2018-07-25 09:14:00 | n |
| 135132 | IIEES | GHVR | N | 16.3 | 0.57 | 2018-07-24 15:43:35 | 2018-07-25 09:14:00 | n |
| 135133 | IIEES | GHVR | E | 17.5 | 0.5 | 2018-07-24 15:43:37 | 2018-07-25 09:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2018-07-24 15:40:34 | -0.29 | y | 63.3 | 35 | |||
| IIEES | BJRD | N | Sg | E | 2018-07-24 15:40:43 | 0.05 | y | 63.3 | 35 | |||
| IIEES | MRVT | Z | Pg | E | 2018-07-24 15:40:39 | -0.03 | y | 92.8 | 301 | |||
| IIEES | MRVT | N | Sg | E | 2018-07-24 15:40:51 | 0.11 | y | 92.8 | 301 | |||
| IIEES | SHRO | Z | Pg | E | 2018-07-24 15:40:49 | -0.69 | y | 162 | 213 | |||
| IIEES | TABS | Z | Pn | E | 2018-07-24 15:41:21 | 0.41 | y | 398 | 178 | |||
| IIEES | DAMV | Z | Pn | E | 2018-07-24 15:41:31 | 0 | y | 484 | 250 | |||
| IIEES | SHRT | Z | Pn | E | 2018-07-24 15:41:33 | 0.02 | y | 498 | 142 | |||
| IIEES | CHTH | Z | Pn | E | 2018-07-24 15:41:39 | 0.25 | y | 545 | 256 | |||
| IIEES | GHVR | Z | Pn | E | 2018-07-24 15:41:46 | 0.22 | y | 602 | 241 | |||
| IIEES | BSRN | Z | Pn | E | 2018-07-24 15:41:48 | 0.44 | y | 616 | 161 | |||
