Magnitude |
:2.2 |
| Date & Time (UTC) | 2018-07-02 10:46:14.9 |
| Date & Time (Local) | 1397/4/11 15:16:14.9 |

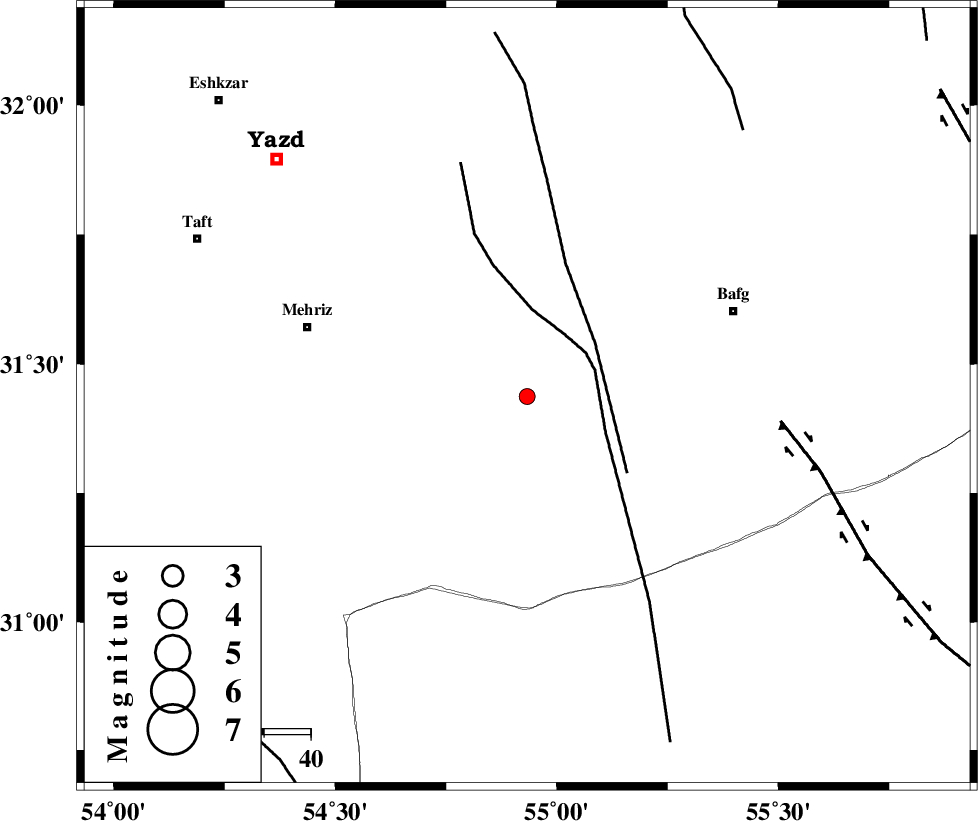

| Location | Lat:31.437 Lon: 54.933 |
| Region | Yazd Province, 48 km South-West of Bafq |
Nearest Cities |
|
| 12 km North of Bahadoran, Yazd Province | |
| 48 km South West of Bafq, Yazd Province | |
| 49 km South East of Mehriz, Yazd Province | |
| 52 km South West of Mobarake, Yazd Province | |
| 62 km South East of Mohammadabad, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ANAR_F (Length: 127 km) , Distance to epicenter: 16 km | |
| ANAR_F (Length: 91 km) , Distance to epicenter: 19 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 55 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >3.7 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 5.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 134153 | IIEES | KRBR | E | 15.7 | 0.57 | 2018-07-02 10:47:30 | 2018-07-03 04:09:00 | n |
| 134154 | IIEES | KRBR | N | 15.6 | 0.57 | 2018-07-02 10:47:31 | 2018-07-03 04:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pn | E | 2018-07-02 10:46:52 | -0.1 | y | 238 | 132 | |||
| IIEES | KRBR | N | Sg | E | 2018-07-02 10:47:22 | 0.1 | y | 238 | 132 | |||
| IIEES | NASN | Z | Pn | E | 2018-07-02 10:46:54 | 0.17 | y | 251 | 308 | |||
| IIEES | NASN | N | Sg | E | 2018-07-02 10:47:26 | -0.1 | y | 251 | 308 | |||
| IIEES | TABS | Z | Pn | E | 2018-07-02 10:47:02 | 0.2 | y | 320 | 39 | |||
| IIEES | BSRN | Z | Pn | E | 2018-07-02 10:47:12 | -0.32 | y | 402 | 81 | |||
