Magnitude |
:3.1 |
| Date & Time (UTC) | 2018-06-08 02:23:30.0 |
| Date & Time (Local) | 1397/3/18 06:53:30.0 |

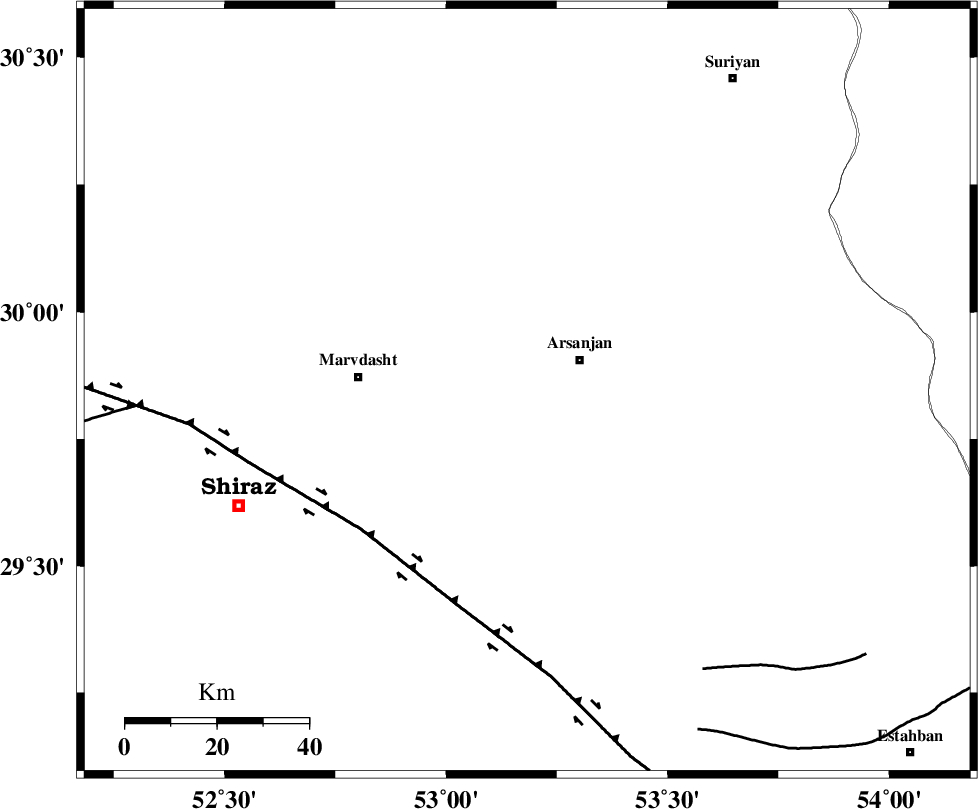

| Location | Lat:29.845 Lon: 53.183 |
| Region | Fars Province, 13 km -West of Arsanjan |
Nearest Cities |
|
| 11 km North of Khabriz, Fars Province | |
| 13 km West of Arsanjan, Fars Province | |
| 16 km North West of Shurab, Fars Province | |
| 18 km West of Aliabad-e malek, Fars Province | |
| 26 km South of Naeimabad, Fars Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| SARVESTAN_F (Length: 94 km) , Distance to epicenter: 33 km | |
| HZF3 (Length: 197 km) , Distance to epicenter: 35 km | |
| BAKHTEGAN_F (Length: 94 km) , Distance to epicenter: 60 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 133303 | IIEES | AHRM | N | 103.7 | 0.55 | 2018-06-08 02:24:37 | 2018-06-09 06:00:00 | n |
| 133304 | IIEES | AHRM | E | 88.5 | 0.65 | 2018-06-08 02:24:39 | 2018-06-09 06:00:00 | n |
| 133305 | IIEES | KRBR | N | 61.1 | 0.45 | 2018-06-08 02:25:18 | 2018-06-09 06:00:00 | n |
| 133306 | IIEES | KRBR | E | 49.9 | 0.52 | 2018-06-08 02:25:20 | 2018-06-09 06:00:00 | n |
| 133307 | IIEES | BNDS | N | 33 | 0.75 | 2018-06-08 02:25:31 | 2018-06-09 06:00:00 | n |
| 133308 | IIEES | BNDS | E | 28.1 | 0.3 | 2018-06-08 02:25:31 | 2018-06-09 06:00:00 | n |
| 133309 | IIEES | KHMZ | E | 9.8 | 0.19 | 2018-06-08 02:25:41 | 2018-06-09 06:00:00 | n |
| 133310 | IIEES | KHMZ | N | 6.7 | 0.48 | 2018-06-08 02:25:43 | 2018-06-09 06:00:00 | n |
| 133311 | IIEES | ASAO | E | 5.5 | 0.36 | 2018-06-08 02:26:03 | 2018-06-09 06:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2018-06-08 02:23:58 | -0.04 | y | 174 | 186 | |||
| IIEES | GHIR | Z | Sg | E | 2018-06-08 02:24:19 | 0.21 | y | 174 | 186 | |||
| IIEES | AHRM | Z | Pn | E | 2018-06-08 02:24:03 | 0.07 | y | 213 | 240 | |||
| IIEES | AHRM | N | Sg | E | 2018-06-08 02:24:30 | -0.17 | y | 213 | 240 | |||
| IIEES | NASN | Z | Pn | E | 2018-06-08 02:24:18 | -0.51 | y | 330 | 354 | |||
| IIEES | KRBR | Z | Pn | E | 2018-06-08 02:24:20 | -0.06 | y | 346 | 87 | |||
| IIEES | BNDS | Z | Pn | E | 2018-06-08 02:24:26 | -0.3 | y | 399 | 132 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-06-08 02:24:43 | 0.24 | y | 529 | 326 | |||
| IIEES | TABS | Z | Pn | E | 2018-06-08 02:24:47 | 0.46 | y | 563 | 40 | |||
| IIEES | ASAO | Z | Pn | E | 2018-06-08 02:24:52 | 0.35 | y | 600 | 331 | |||
| IIEES | SNGE | Z | Pn | E | 2018-06-08 02:25:17 | 0.19 | y | 800 | 318 | |||
