Magnitude |
:3.5 |
| Date & Time (UTC) | 2018-05-20 05:58:29.9 |
| Date & Time (Local) | 1397/2/30 10:28:29.9 |

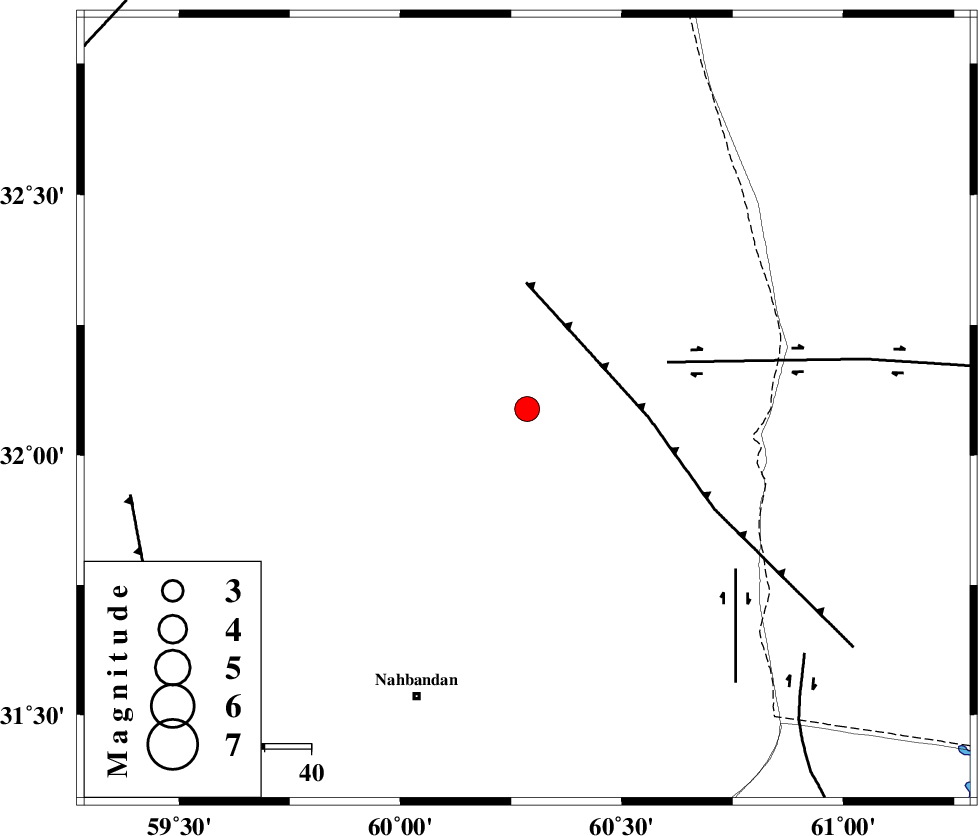

| Location | Lat:32.089 Lon: 60.286 |
| Region | Khorasan(south) Province, 66 km North-East of Nehbandan |
Nearest Cities |
|
| 37 km North East of Shusef, Khorasan(south) Province | |
| 39 km South West of Dorj, Khorasan(south) Province | |
| 66 km North East of Nehbandan, Khorasan(south) Province | |
| 70 km South East of Salmabad, Khorasan(south) Province | |
| 75 km South East of Sarbisheh, Khorasan(south) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| E_NEH_F (Length: 148 km) , Distance to epicenter: 2 km | |
| W_NEH_F (Length: 158 km) , Distance to epicenter: 71 km | |
| SEFIDABAD_F (Length: 26 km) , Distance to epicenter: 87 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 5.3 km |
| Error in Depth | 8.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 131895 | IIEES | SHRT | E | 262.3 | 0.51 | 2018-05-20 05:59:24 | 2018-05-20 06:39:00 | n |
| 131896 | IIEES | SHRT | N | 307.5 | 0.44 | 2018-05-20 05:59:26 | 2018-05-20 06:39:00 | n |
| 131897 | IIEES | KRBR | N | 91.5 | 0.4 | 2018-05-20 06:00:37 | 2018-05-20 06:39:00 | n |
| 131898 | IIEES | KRBR | E | 73.6 | 0.8 | 2018-05-20 06:00:41 | 2018-05-20 06:39:00 | n |
| 131899 | IIEES | YZKH | N | 30.6 | 0.7 | 2018-05-20 06:01:17 | 2018-05-20 06:39:00 | n |
| 131900 | IIEES | YZKH | E | 43.3 | 0.7 | 2018-05-20 06:01:19 | 2018-05-20 06:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pg | E | 2018-05-20 05:58:48 | -0.59 | y | 110 | 263 | |||
| IIEES | BSRN | N | Sg | E | 2018-05-20 05:59:02 | -0.01 | y | 110 | 263 | |||
| IIEES | SHRT | Z | Pg | E | 2018-05-20 05:58:58 | -0.04 | y | 173 | 0 | |||
| IIEES | SHRT | E | Sg | E | 2018-05-20 05:59:19 | 0.1 | y | 173 | 0 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-05-20 05:59:12 | -0.25 | y | 279 | 170 | |||
| IIEES | TABS | Z | Pn | E | 2018-05-20 05:59:20 | 0.25 | y | 343 | 301 | |||
| IIEES | KRBR | Z | Pn | E | 2018-05-20 05:59:29 | 1 | y | 410 | 236 | |||
| IIEES | YZKH | Z | Pn | E | 2018-05-20 05:59:44 | -0.09 | y | 538 | 275 | |||
| IIEES | SHRO | Z | Pn | E | 2018-05-20 05:59:50 | -0.11 | y | 587 | 319 | |||
| IIEES | MRVT | Z | Pn | E | 2018-05-20 06:00:07 | -0.23 | y | 727 | 329 | |||
