Magnitude |
:3 |
| Date & Time (UTC) | 2018-04-22 00:06:45.3 |
| Date & Time (Local) | 1397/2/2 04:36:45.3 |

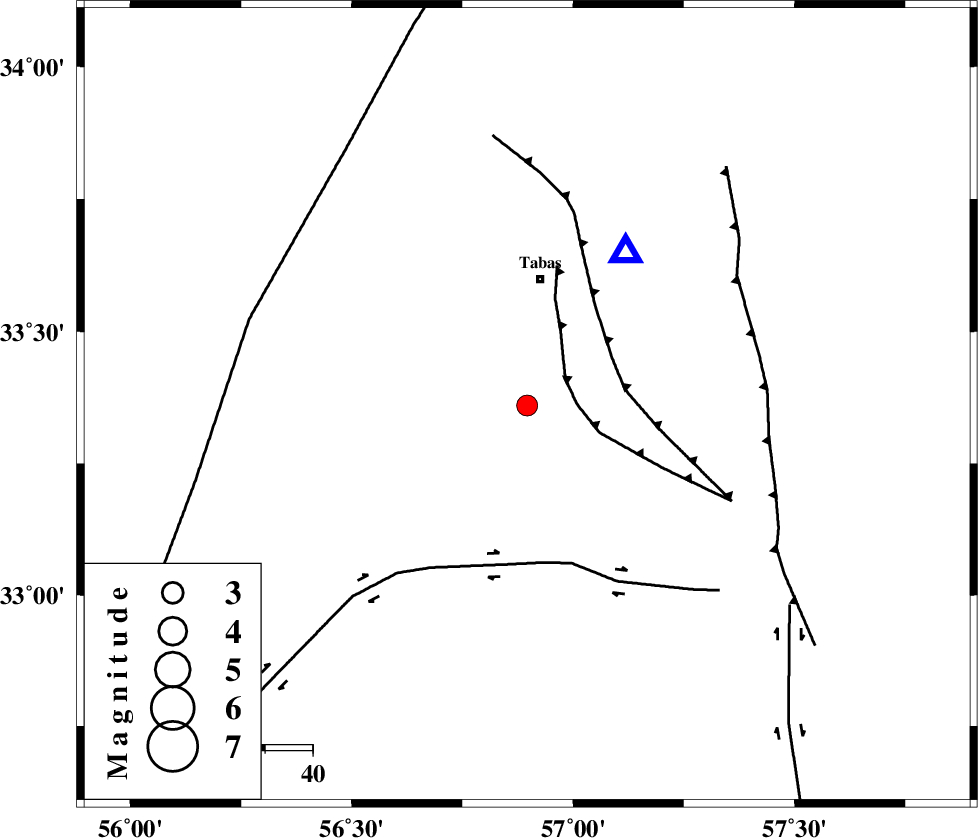

| Location | Lat:33.36 Lon: 56.896 |
| Region | Yazd Province, 27 km South of Tabas |
Nearest Cities |
|
| 11 km of Kerit, Yazd Province | |
| 22 km South of Oshtoqran, Yazd Province | |
| 27 km South of Tabas, Yazd Province | |
| 42 km South East of Jokhvah, Yazd Province | |
| 56 km North West of Dihuk, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 10 km | |
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 20 km | |
| CHESHMEH_ROSTAM_ (Length: 142 km) , Distance to epicenter: 33 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 130523 | IIEES | YZKH | N | 68.6 | 0.48 | 2018-04-22 00:07:58 | 2018-04-22 06:02:00 | n |
| 130524 | IIEES | YZKH | E | 66.2 | 0.62 | 2018-04-22 00:07:59 | 2018-04-22 06:02:00 | n |
| 130525 | IIEES | BSRN | E | 45.9 | 0.33 | 2018-04-22 00:08:02 | 2018-04-22 06:02:00 | n |
| 130526 | IIEES | BSRN | N | 66.6 | 0.51 | 2018-04-22 00:08:07 | 2018-04-22 06:02:00 | n |
| 130527 | IIEES | SHRO | E | 37.2 | 0.48 | 2018-04-22 00:08:23 | 2018-04-22 06:02:00 | n |
| 130528 | IIEES | SHRT | E | 29 | 0.52 | 2018-04-22 00:08:30 | 2018-04-22 06:02:00 | n |
| 130529 | IIEES | KRBR | N | 48.5 | 0.42 | 2018-04-22 00:08:37 | 2018-04-22 06:02:00 | n |
| 130530 | IIEES | KRBR | E | 60.4 | 0.42 | 2018-04-22 00:08:41 | 2018-04-22 06:02:00 | n |
| 130531 | IIEES | DAMV | N | 5.4 | 0.7 | 2018-04-22 00:09:29 | 2018-04-22 06:02:00 | n |
| 130532 | IIEES | DAMV | E | 7.5 | 0.61 | 2018-04-22 00:09:30 | 2018-04-22 06:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2018-04-22 00:06:52 | -0.2 | y | 38.1 | 33 | |||
| IIEES | YZKH | Z | Pn | E | 2018-04-22 00:07:23 | 0.07 | y | 241 | 244 | |||
| IIEES | BSRN | Z | Pn | E | 2018-04-22 00:07:25 | -0.13 | y | 260 | 126 | |||
| IIEES | BSRN | N | Sg | E | 2018-04-22 00:07:58 | -0.28 | y | 260 | 126 | |||
| IIEES | SHRO | Z | Pn | E | 2018-04-22 00:07:31 | 0.25 | y | 305 | 345 | |||
| IIEES | SHRT | Z | Pn | E | 2018-04-22 00:07:32 | 0.56 | y | 317 | 83 | |||
| IIEES | KRBR | Z | Pn | E | 2018-04-22 00:07:40 | 0.37 | y | 375 | 182 | |||
| IIEES | NASN | Z | Pn | E | 2018-04-22 00:07:41 | -0.3 | y | 387 | 262 | |||
| IIEES | MRVT | Z | Pn | E | 2018-04-22 00:07:52 | -0.2 | y | 483 | 352 | |||
| IIEES | DAMV | Z | Pn | E | 2018-04-22 00:07:57 | -0.2 | y | 518 | 300 | |||
