Magnitude |
:2.5 |
| Date & Time (UTC) | 2017-07-18 12:22:37.4 |
| Date & Time (Local) | 1396/4/27 16:52:37.4 |
| Location | Lat:37.264 Lon: 56.823 |
| Region | Khorasan(north) Province, 33 km South-West of Ashkhaneh |
Nearest Cities |
|
| 9 km of Shogan, Khorasan(north) Province | |
| 33 km South West of Ashkhaneh, Khorasan(north) Province | |
| 36 km North West of Cheharborj, Khorasan(north) Province | |
| 46 km South West of Pish qaleh, Khorasan(north) Province | |
| 47 km North West of Zarqabad, Khorasan(north) Province | |
| Depth | 15 km |
| Agency | |

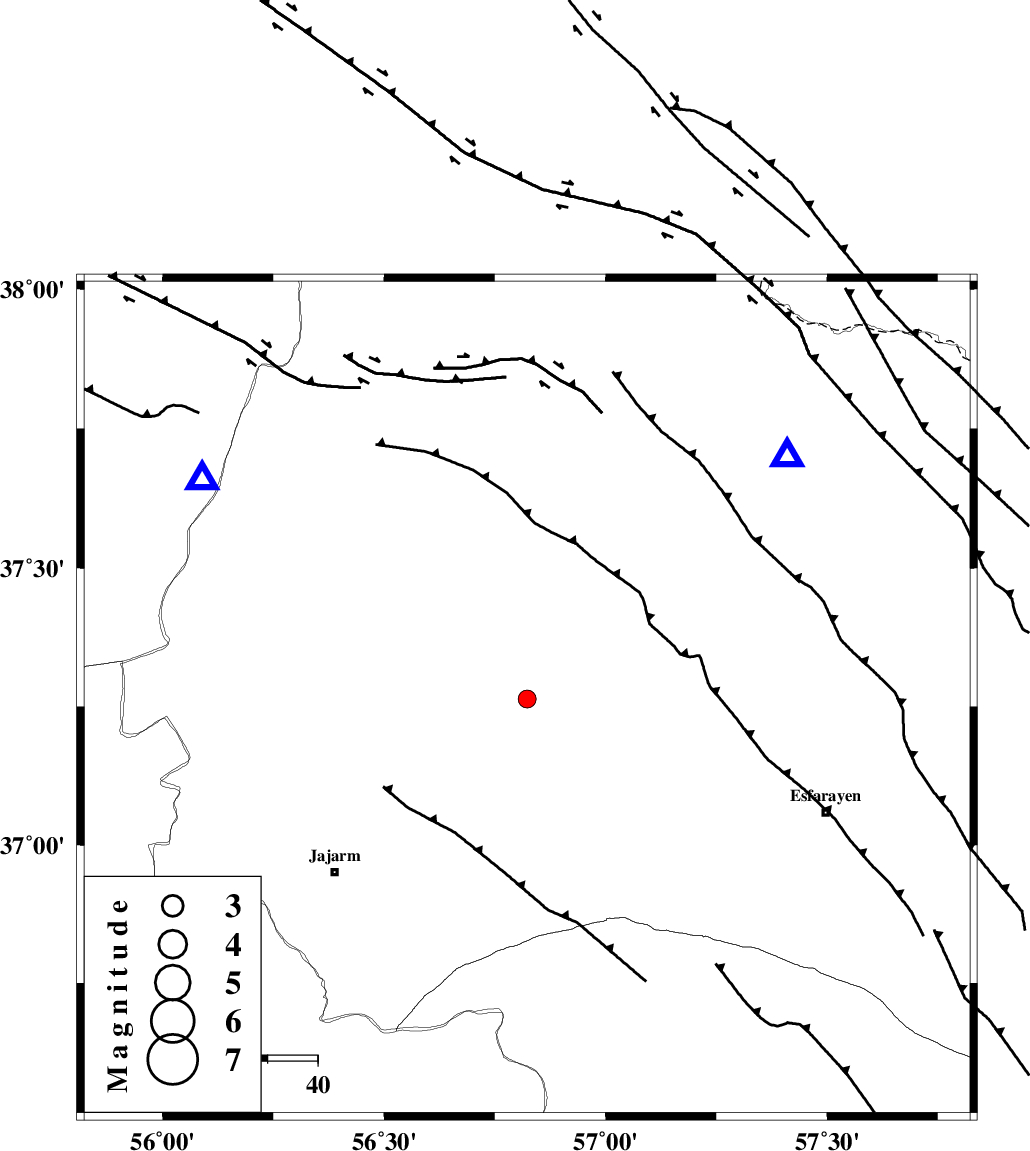

Faults within 150 km: |
|
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 5 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 11 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 21 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 117771 | IIEES | BJRD | E | 450.7 | 0.19 | 2017-07-18 12:23:01 | 2017-07-19 07:56:00 | n |
| 117772 | IIEES | BJRD | N | 251.5 | 0.46 | 2017-07-18 12:23:05 | 2017-07-19 07:56:00 | n |
| 117773 | IIEES | MRVT | E | 241.7 | 0.39 | 2017-07-18 12:23:02 | 2017-07-19 07:56:00 | n |
| 117774 | IIEES | MRVT | N | 139.4 | 0.4 | 2017-07-18 12:23:05 | 2017-07-19 07:56:00 | n |
| 117775 | IIEES | SHRO | E | 49.4 | 0.46 | 2017-07-18 12:23:27 | 2017-07-19 07:56:00 | n |
| 117776 | IIEES | SHRO | N | 56.7 | 0.26 | 2017-07-18 12:23:28 | 2017-07-19 07:56:00 | n |
| 117777 | IIEES | TABS | N | 7.8 | 0.65 | 2017-07-18 12:24:40 | 2017-07-19 07:56:00 | n |
| 117778 | IIEES | TABS | E | 4.8 | 0.61 | 2017-07-18 12:24:43 | 2017-07-19 07:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2017-07-18 12:22:49 | -0.12 | y | 70.8 | 47 | |||
| IIEES | MRVT | Z | Pg | E | 2017-07-18 12:22:51 | 0.11 | y | 78.3 | 304 | |||
| IIEES | SHRO | Z | Pg | E | 2017-07-18 12:23:03 | -0.31 | y | 157 | 208 | |||
| IIEES | TABS | Z | Pn | E | 2017-07-18 12:23:35 | 0.32 | y | 402 | 176 | |||
| IIEES | BSRN | Z | Pn | E | 2017-07-18 12:24:02 | 0.14 | y | 624 | 160 | |||
