Magnitude |
:2.5 |
| Date & Time (UTC) | 2016-03-16 05:55:17.4 |
| Date & Time (Local) | 1394/12/26 09:25:17.4 |

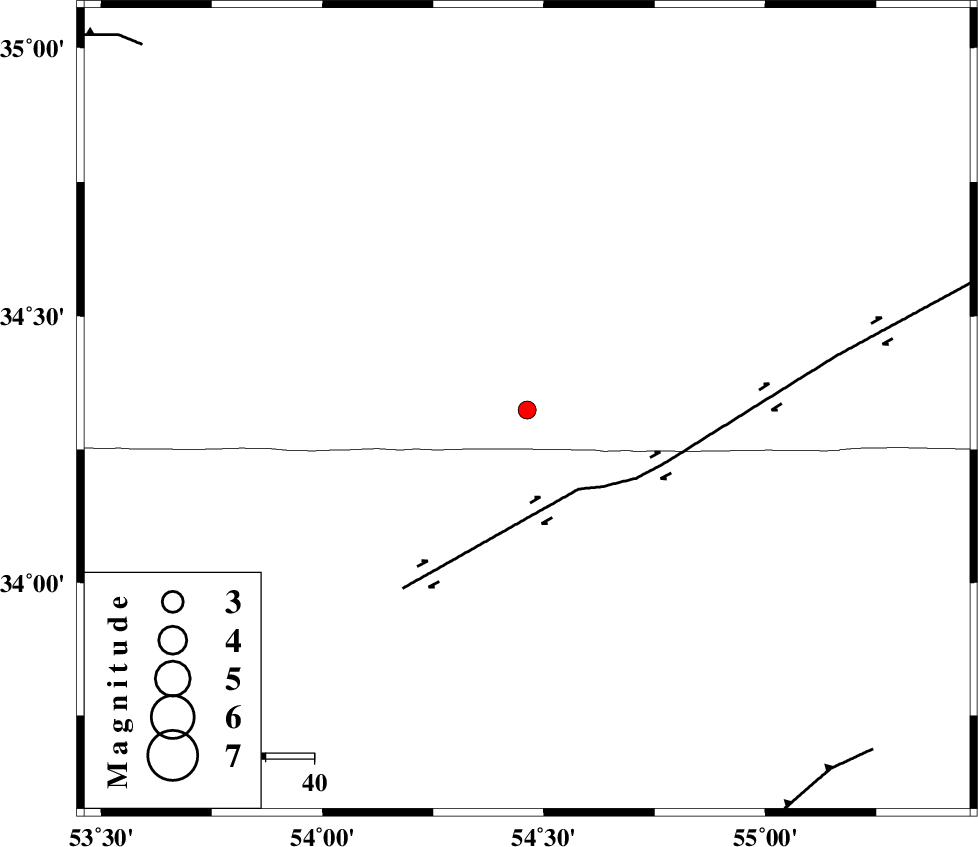

| Location | Lat:34.324 Lon: 54.462 |
| Region | Semnan Province, 205 km South-East of Damghan |
Nearest Cities |
|
| 31 km North of Jondaq, Esfahan Province | |
| 69 km North West of Farrokhi, Esfahan Province | |
| 79 km North of Chupanan, Esfahan Province | |
| 84 km North West of Khur, Esfahan Province | |
| 112 km North West of Mehranjan, Esfahan Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 20 km | |
| BIABANAK_F (Length: 162 km) , Distance to epicenter: 98 km | |
| TORUD_F (Length: 136 km) , Distance to epicenter: 103 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 105034 | IIEES | YZKH | E | 21.1 | 0.24 | 2016-03-16 05:56:27 | 2016-03-16 11:17:00 | n |
| 105035 | IIEES | SHRO | E | 37.3 | 0.53 | 2016-03-16 05:56:27 | 2016-03-16 11:17:00 | n |
| 105036 | IIEES | SHRO | N | 21 | 0.33 | 2016-03-16 05:56:35 | 2016-03-16 11:17:00 | n |
| 105037 | IIEES | DAMV | E | 26.5 | 0.54 | 2016-03-16 05:56:43 | 2016-03-16 11:17:00 | n |
| 105038 | IIEES | DAMV | N | 16.9 | 0.46 | 2016-03-16 05:56:45 | 2016-03-16 11:17:00 | n |
| 105039 | IIEES | GHVR | N | 12.4 | 0.29 | 2016-03-16 05:56:46 | 2016-03-16 11:17:00 | n |
| 105040 | IIEES | GHVR | E | 21.7 | 0.46 | 2016-03-16 05:56:51 | 2016-03-16 11:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pn | E | 2016-03-16 05:55:51 | -0.38 | y | 215 | 177 | |||
| IIEES | YZKH | N | Sg | E | 2016-03-16 05:56:18 | 0.04 | y | 215 | 177 | |||
| IIEES | NASN | Z | Pn | E | 2016-03-16 05:55:53 | -0.36 | y | 228 | 223 | |||
| IIEES | SHRO | Z | Pn | E | 2016-03-16 05:55:53 | -0.23 | y | 234 | 37 | |||
| IIEES | SHRO | N | Sg | E | 2016-03-16 05:56:23 | -0.04 | y | 234 | 37 | |||
| IIEES | TABS | Z | Pn | E | 2016-03-16 05:55:57 | 0.35 | y | 257 | 106 | |||
| IIEES | DAMV | Z | Pn | E | 2016-03-16 05:55:58 | -0.05 | y | 270 | 303 | |||
| IIEES | GHVR | Z | Pn | E | 2016-03-16 05:56:02 | 0.61 | y | 296 | 274 | |||
| IIEES | MRVT | Z | Pn | E | 2016-03-16 05:56:14 | -0.15 | y | 398 | 21 | |||
| IIEES | BSRN | Z | Pn | E | 2016-03-16 05:56:28 | 0.35 | y | 508 | 120 | |||
