Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-03-12 04:26:24.5 |
| Date & Time (Local) | 1394/12/22 07:56:24.5 |

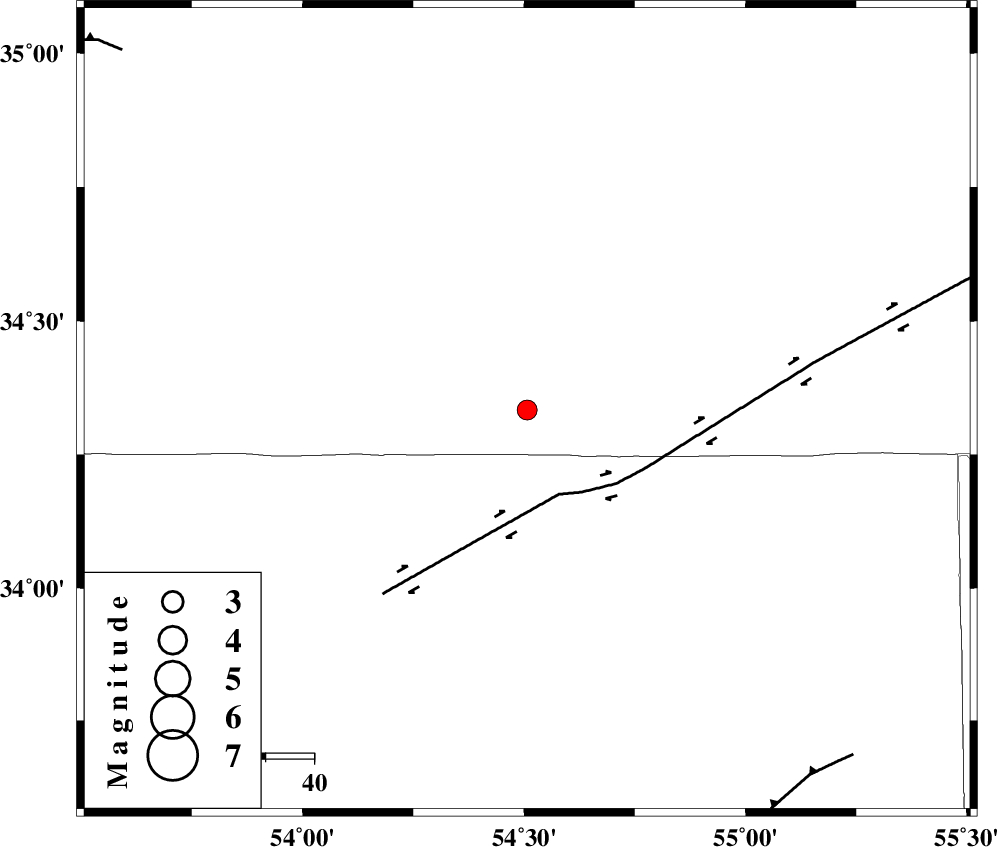

| Location | Lat:34.334 Lon: 54.507 |
| Region | Semnan Province, 204 km South-East of Damghan |
Nearest Cities |
|
| 33 km North of Jondaq, Esfahan Province | |
| 68 km North West of Farrokhi, Esfahan Province | |
| 80 km North East of Chupanan, Esfahan Province | |
| 82 km North West of Khur, Esfahan Province | |
| 110 km North West of Mehranjan, Esfahan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 19 km | |
| BIABANAK_F (Length: 162 km) , Distance to epicenter: 96 km | |
| TORUD_F (Length: 136 km) , Distance to epicenter: 102 km | |
| Number of Phases | 13 |
| RMS | 0.2 |
| Number of Stations | 11 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 4.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 104847 | IIEES | SHRO | E | 62.9 | 0.45 | 2016-03-12 04:27:34 | 2016-03-12 06:23:00 | n |
| 104848 | IIEES | SHRO | N | 35 | 0.85 | 2016-03-12 04:27:35 | 2016-03-12 06:23:00 | n |
| 104849 | IIEES | DAMV | E | 45.6 | 0.38 | 2016-03-12 04:27:51 | 2016-03-12 06:23:00 | n |
| 104850 | IIEES | DAMV | N | 26.8 | 0.54 | 2016-03-12 04:27:52 | 2016-03-12 06:23:00 | n |
| 104851 | IIEES | GHVR | E | 32.5 | 0.26 | 2016-03-12 04:27:53 | 2016-03-12 06:23:00 | n |
| 104852 | IIEES | THKV | N | 29.9 | 0.45 | 2016-03-12 04:28:10 | 2016-03-12 06:23:00 | n |
| 104853 | IIEES | THKV | E | 28.8 | 0.34 | 2016-03-12 04:28:13 | 2016-03-12 06:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2016-03-12 04:26:59 | -0.22 | y | 216 | 178 | |||
| IIEES | YZKH | N | Sg | E | 2016-03-12 04:27:25 | -0.15 | y | 216 | 178 | |||
| IIEES | SHRO | Z | Pn | E | 2016-03-12 04:27:00 | -0.02 | y | 231 | 36 | |||
| IIEES | SHRO | N | Sg | E | 2016-03-12 04:27:29 | -0.18 | y | 231 | 36 | |||
| IIEES | NASN | Z | Pn | E | 2016-03-12 04:27:01 | -0.02 | y | 232 | 223 | |||
| IIEES | TABS | Z | Pn | E | 2016-03-12 04:27:03 | 0.17 | y | 253 | 107 | |||
| IIEES | DAMV | Z | Pn | E | 2016-03-12 04:27:06 | -0.13 | y | 273 | 303 | |||
| IIEES | GHVR | Z | Pn | E | 2016-03-12 04:27:09 | 0.36 | y | 300 | 274 | |||
| IIEES | CHTH | Z | Pn | E | 2016-03-12 04:27:16 | -0.3 | y | 354 | 300 | |||
| IIEES | THKV | Z | Pn | E | 2016-03-12 04:27:18 | -0.08 | y | 374 | 299 | |||
| IIEES | MRVT | Z | Pn | E | 2016-03-12 04:27:21 | 0.14 | y | 396 | 21 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-03-12 04:27:25 | 0.26 | y | 425 | 262 | |||
| IIEES | BSRN | Z | Pn | E | 2016-03-12 04:27:35 | 0.34 | y | 505 | 120 | |||
