Magnitude |
:3.1 |
| Date & Time (UTC) | 2016-01-04 10:40:12.0 |
| Date & Time (Local) | 1394/10/14 14:10:12.0 |
| Location | Lat:34.785 Lon: 50.407 |
| Region | Markazi Province, 27 km South of Saveh |
Nearest Cities |
|
| 11 km North West of Gazran, Qom Province | |
| 14 km South of Qareh chay, Markazi Province | |
| 20 km South East of Yalabad, Markazi Province | |
| 22 km South West of Taraznahid, Markazi Province | |
| 27 km South of Saveh, Markazi Province | |
| Depth | 15 km |
| Agency | |

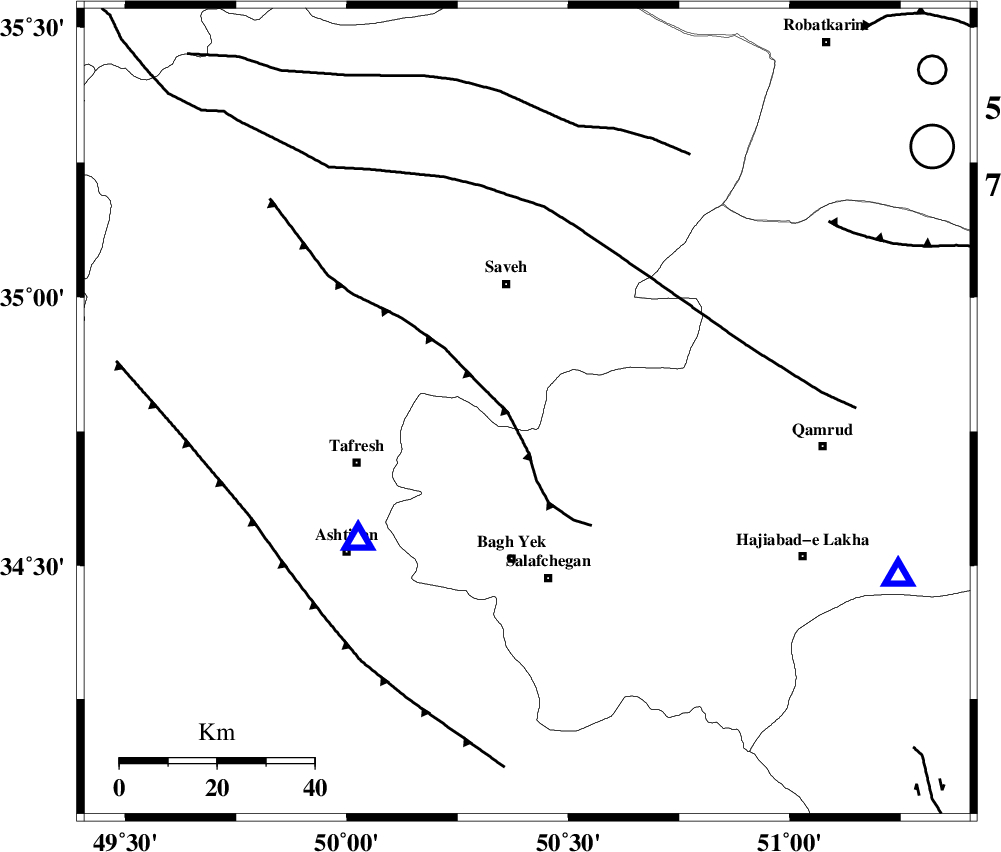

Faults within 150 km: |
|
| INDES_F (Length: 98 km) , Distance to epicenter: 4 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 38 km | |
| TAFRESH_F (Length: 117 km) , Distance to epicenter: 59 km | |
| Number of Phases | 12 |
| RMS | 0.6 |
| Number of Stations | 10 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 103507 | IIEES | ASAO | E | 1987.3 | 0.46 | 2016-01-04 10:40:26 | 2016-01-04 11:38:00 | n |
| 103508 | IIEES | GHVR | E | 980.4 | 0.58 | 2016-01-04 10:40:38 | 2016-01-04 11:38:00 | n |
| 103509 | IIEES | GHVR | N | 554.2 | 0.29 | 2016-01-04 10:40:39 | 2016-01-04 11:38:00 | n |
| 103510 | IIEES | KHMZ | N | 596.9 | 0.35 | 2016-01-04 10:40:50 | 2016-01-04 11:38:00 | n |
| 103511 | IIEES | CHTH | E | 226.1 | 0.38 | 2016-01-04 10:40:58 | 2016-01-04 11:38:00 | n |
| 103512 | IIEES | DAMV | N | 328.8 | 0.42 | 2016-01-04 10:41:04 | 2016-01-04 11:38:00 | n |
| 103513 | IIEES | DAMV | E | 411.6 | 0.36 | 2016-01-04 10:41:04 | 2016-01-04 11:38:00 | n |
| 103514 | IIEES | SNGE | N | 44.4 | 0.4 | 2016-01-04 10:41:49 | 2016-01-04 11:38:00 | n |
| 103515 | IIEES | NASN | N | 41.5 | 0.42 | 2016-01-04 10:41:41 | 2016-01-04 11:38:00 | n |
| 103516 | IIEES | NASN | E | 47.8 | 0.29 | 2016-01-04 10:41:41 | 2016-01-04 11:38:00 | n |
| 103517 | IIEES | YZKH | N | 13.7 | 0.42 | 2016-01-04 10:42:33 | 2016-01-04 11:38:00 | n |
| 103518 | IIEES | YZKH | E | 15 | 0.49 | 2016-01-04 10:42:41 | 2016-01-04 11:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ASAO | Z | Pg | E | 2016-01-04 10:40:19 | -0.34 | y | 43.8 | 233 | |||
| IIEES | GHVR | Z | Pg | E | 2016-01-04 10:40:26 | -0.07 | y | 84 | 114 | |||
| IIEES | GHVR | N | Sg | E | 2016-01-04 10:40:37 | 0.4 | y | 84 | 114 | |||
| IIEES | KHMZ | Z | Pg | E | 2016-01-04 10:40:31 | -0.91 | y | 123 | 200 | |||
| IIEES | THKV | Z | Pg | E | 2016-01-04 10:40:33 | -0.68 | y | 133 | 19 | |||
| IIEES | CHTH | Z | Pg | E | 2016-01-04 10:40:35 | 0.28 | y | 141 | 27 | |||
| IIEES | DAMV | Z | Pg | E | 2016-01-04 10:40:39 | -0.45 | y | 170 | 56 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-01-04 10:40:55 | 3.19 | n | 4 | 261 | 324 | ||
| IIEES | SNGE | Z | Pn | E | 2016-01-04 10:40:56 | 1.31 | y | 282 | 278 | |||
| IIEES | NASN | Z | Pn | E | 2016-01-04 10:40:59 | 0.66 | y | 313 | 134 | |||
| IIEES | YZKH | Z | Pn | E | 2016-01-04 10:41:18 | -0.05 | y | 470 | 123 | |||
| IIEES | BSRN | Z | Pn | E | 2016-01-04 10:42:07 | -0.14 | y | 869 | 109 | |||
