Magnitude |
:2.7 |
| Date & Time (UTC) | 2015-12-19 19:10:05.4 |
| Date & Time (Local) | 1394/9/28 22:40:05.4 |

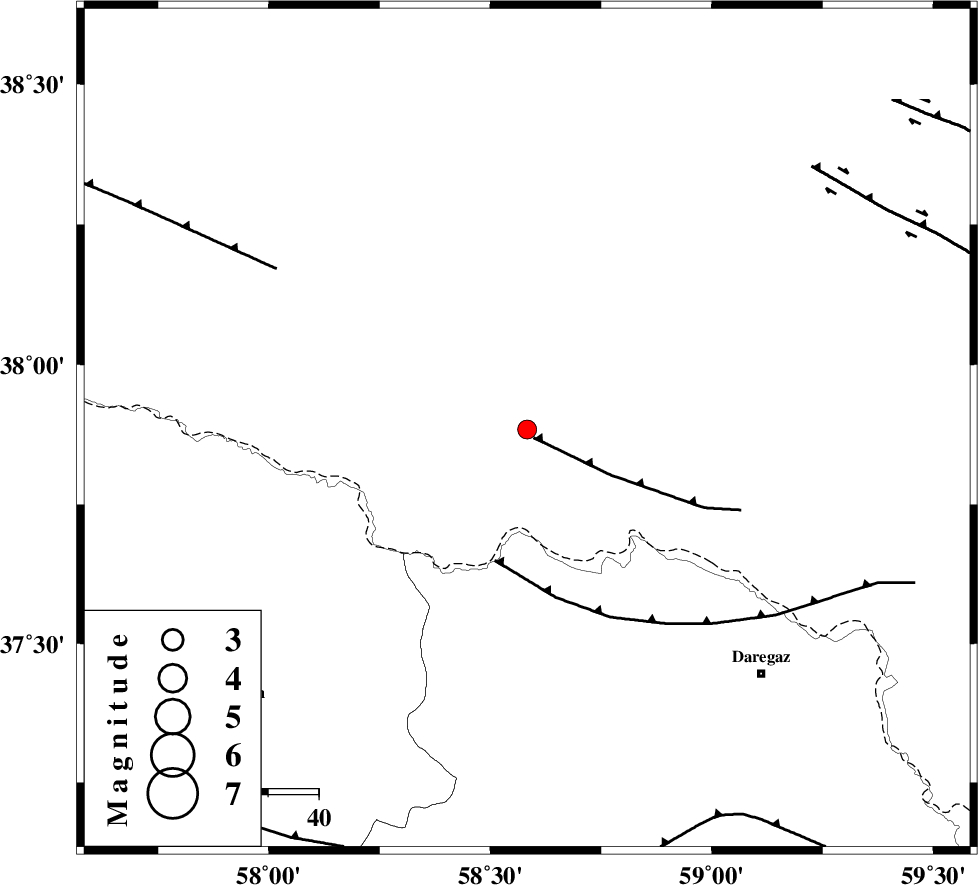

| Location | Lat:37.884 Lon: 58.583 |
| Region | Turkmenistan, 19 km -East of Ashgabat |
Nearest Cities |
|
| 19 km East of Ashgabat, Turkmenistan Province | |
| 33 km North East of Bajgiran, Khorasan(center) Province | |
| 49 km North West of Borj ghaleh, Khorasan(center) Province | |
| 55 km North of Emamqoli, Khorasan(center) Province | |
| 55 km North West of Nokhandan, Khorasan(center) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_KOPEHDAGH_F3 (Length: 96 km) , Distance to epicenter: 16 km | |
| GHUCHAN_F (Length: 50 km) , Distance to epicenter: 53 km | |
| BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 62 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >9.9 km |
| Error in Longitude | 7.5 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 102929 | IIEES | BJRD | N | 240 | 0.36 | 2015-12-19 19:10:43 | 2015-12-20 06:08:00 | n |
| 102930 | IIEES | BJRD | E | 170.4 | 0.25 | 2015-12-19 19:10:43 | 2015-12-20 06:08:00 | n |
| 102931 | IIEES | MRVT | E | 58.6 | 0.37 | 2015-12-19 19:11:11 | 2015-12-20 06:08:00 | n |
| 102932 | IIEES | MRVT | N | 59.8 | 0.37 | 2015-12-19 19:11:11 | 2015-12-20 06:08:00 | n |
| 102933 | IIEES | SHRO | N | 13 | 0.4 | 2015-12-19 19:11:39 | 2015-12-20 06:08:00 | n |
| 102934 | IIEES | SHRO | E | 13.6 | 0.45 | 2015-12-19 19:11:43 | 2015-12-20 06:08:00 | n |
| 102935 | IIEES | SHRT | E | 9 | 0.54 | 2015-12-19 19:12:30 | 2015-12-20 06:08:00 | n |
| 102936 | IIEES | SHRT | N | 8.8 | 0.68 | 2015-12-19 19:12:38 | 2015-12-20 06:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2015-12-19 19:10:22 | -0.55 | y | 105 | 259 | |||
| IIEES | BJRD | N | Sg | E | 2015-12-19 19:10:36 | 0.09 | y | 105 | 259 | |||
| IIEES | MRVT | Z | Pn | E | 2015-12-19 19:10:40 | 0.35 | y | 221 | 264 | |||
| IIEES | SHRO | Z | Pn | E | 2015-12-19 19:10:51 | 0.13 | y | 309 | 228 | |||
| IIEES | TABS | Z | Pn | E | 2015-12-19 19:11:13 | 0.12 | y | 488 | 196 | |||
| IIEES | SHRT | Z | Pn | E | 2015-12-19 19:11:14 | -0.06 | y | 495 | 161 | |||
| IIEES | BSRN | Z | Pn | E | 2015-12-19 19:11:34 | -0.13 | y | 658 | 176 | |||
