Magnitude |
:4.7 |
| Date & Time (UTC) | 2015-09-15 17:35:49.8 |
| Date & Time (Local) | 1394/6/24 22:05:49.8 |

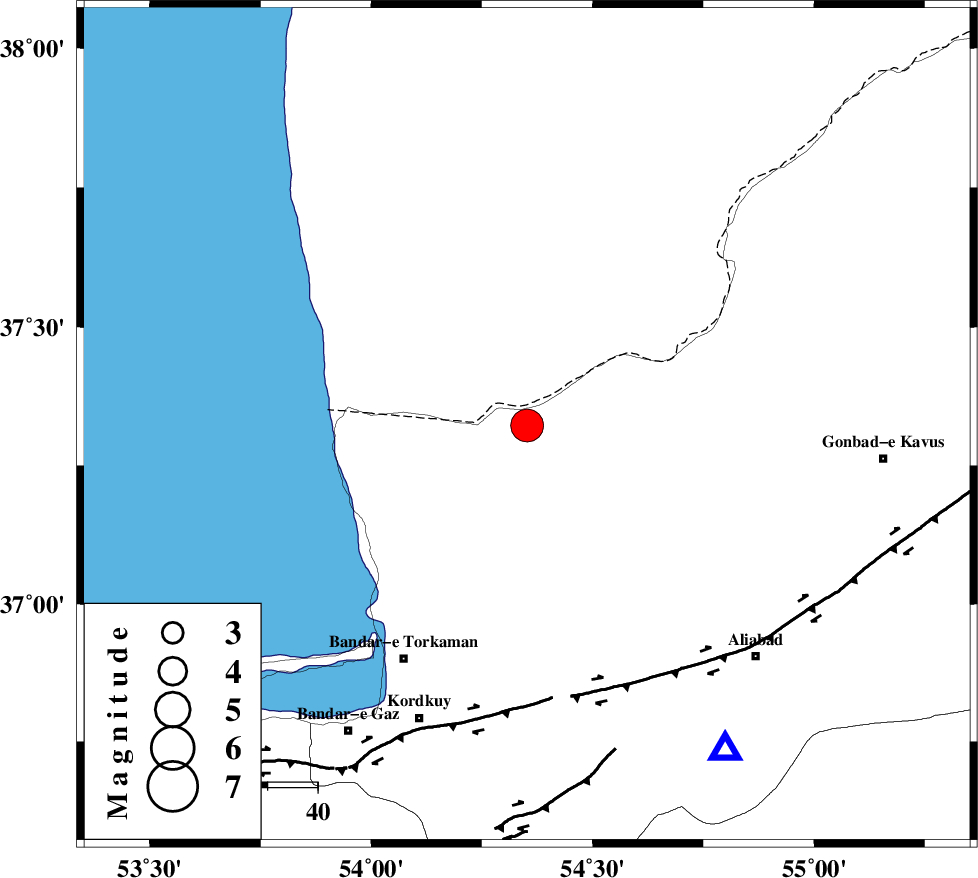

| Location | Lat:37.322 Lon: 54.352 |
| Region | Golestan Province, 36 km North-West of Aq Qaleh |
Nearest Cities |
|
| 34 km North East of Gomishtappeh, Golestan Province | |
| 36 km North West of Aq Qaleh, Golestan Province | |
| 36 km South West of Enchehborun, Golestan Province | |
| 36 km North East of Banavar, Golestan Province | |
| 37 km North West of Qanqarmeh, Golestan Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 54 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 79 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 84 km | |
| Number of Phases | 21 |
| RMS | 0.4 |
| Number of Stations | 19 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 100938 | IIEES | MRVT | N | 10070.3 | 0.3 | 2015-09-15 17:36:39 | 2015-09-16 10:54:00 | n |
| 100939 | IIEES | MRVT | E | 6887.8 | 0.42 | 2015-09-15 17:36:39 | 2015-09-16 10:54:00 | n |
| 100940 | IIEES | SHRO | N | 11049.3 | 0.33 | 2015-09-15 17:36:55 | 2015-09-16 10:54:00 | n |
| 100941 | IIEES | THKV | N | 2102.2 | 0.66 | 2015-09-15 17:37:37 | 2015-09-16 10:54:00 | n |
| 100942 | IIEES | GHVR | E | 702.7 | 0.37 | 2015-09-15 17:38:00 | 2015-09-16 10:54:00 | n |
| 100943 | IIEES | GHVR | N | 572.8 | 0.46 | 2015-09-15 17:38:01 | 2015-09-16 10:54:00 | n |
| 100944 | IIEES | TABS | E | 1089.5 | 0.74 | 2015-09-15 17:38:27 | 2015-09-16 10:54:00 | n |
| 100945 | IIEES | NASN | E | 1042.7 | 0.82 | 2015-09-15 17:38:27 | 2015-09-16 10:54:00 | n |
| 100946 | IIEES | NASN | N | 427.5 | 0.45 | 2015-09-15 17:38:31 | 2015-09-16 10:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2015-09-15 17:36:16 | 0.48 | y | 158 | 76 | |||
| IIEES | MRVT | N | Sg | E | 2015-09-15 17:36:34 | -0.24 | y | 158 | 76 | |||
| IIEES | SHRO | Z | Pn | E | 2015-09-15 17:36:23 | -0.13 | y | 208 | 134 | |||
| IIEES | SHRO | E | Sg | E | 2015-09-15 17:36:48 | -0.24 | y | 208 | 134 | |||
| IIEES | BJRD | Z | Pn | E | 2015-09-15 17:36:31 | 0.15 | y | 273 | 80 | |||
| IIEES | DAMV | Z | Pn | E | 2015-09-15 17:36:33 | 0.4 | y | 284 | 229 | |||
| IIEES | CHTH | Z | Pn | E | 2015-09-15 17:36:38 | 0.33 | y | 329 | 242 | |||
| IIEES | THKV | Z | Pn | E | 2015-09-15 17:36:40 | -0.18 | y | 348 | 244 | |||
| IIEES | GHVR | Z | Pn | E | 2015-09-15 17:36:50 | 0.31 | y | 422 | 223 | |||
| IIEES | TABS | Z | Pn | E | 2015-09-15 17:36:56 | 0.12 | y | 479 | 148 | |||
| IIEES | ASAO | Z | Pn | E | 2015-09-15 17:36:59 | 0.05 | y | 497 | 233 | |||
| IIEES | ZNJK | Z | Pn | E | 2015-09-15 17:37:00 | -0.06 | y | 510 | 264 | |||
| IIEES | NASN | Z | Pn | E | 2015-09-15 17:37:01 | -0.5 | y | 521 | 196 | |||
| IIEES | YZKH | Z | Pn | E | 2015-09-15 17:37:05 | 0.06 | y | 548 | 178 | |||
| IIEES | KHMZ | Z | Pn | E | 2015-09-15 17:37:07 | 0.11 | y | 562 | 226 | |||
| IIEES | GRMI | Z | Pn | E | 2015-09-15 17:37:09 | -1.14 | y | 590 | 288 | |||
| IIEES | SHRT | Z | Pn | E | 2015-09-15 17:37:21 | 0.5 | y | 676 | 125 | |||
| IIEES | BSRN | Z | Pn | E | 2015-09-15 17:37:28 | -0.07 | y | 738 | 142 | |||
| IIEES | KRBR | Z | Pn | E | 2015-09-15 17:37:42 | 0.03 | y | 844 | 164 | |||
| IIEES | AHRM | Z | Pn | E | 2015-09-15 17:37:58 | -0.25 | y | 980 | 198 | |||
| IIEES | ZHSF | Z | Pn | E | 2015-09-15 17:38:06 | -0.86 | y | 1042 | 143 | |||
