Magnitude |
:4 |
| Date & Time (UTC) | 2015-08-24 16:23:45.9 |
| Date & Time (Local) | 1394/6/2 20:53:45.9 |

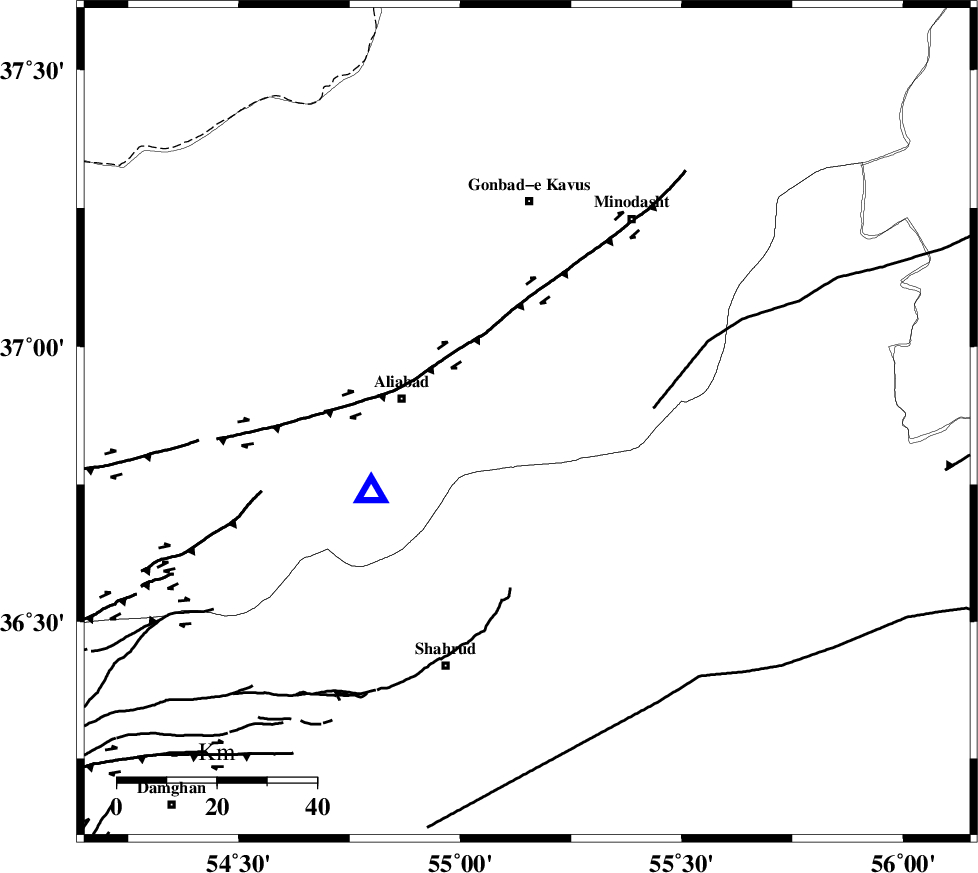

| Location | Lat:36.861 Lon: 55.151 |
| Region | Golestan Province, 17 km South of Ramian |
Nearest Cities |
|
| 17 km South of Ramian, Golestan Province | |
| 21 km South of Deland, Golestan Province | |
| 22 km South East of Khanbebin, Golestan Province | |
| 23 km South of Khanduz, Golestan Province | |
| 25 km South of Azadshahr, Golestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 11 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 23 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 26 km | |
| Number of Phases | 13 |
| RMS | 0.3 |
| Number of Stations | 12 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 4 km |
| Error in Depth | 7.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 100459 | IIEES | SHRO | E | 2624.8 | 0.6 | 2015-08-24 16:24:24 | 2015-08-25 11:53:00 | n |
| 100460 | IIEES | THKV | N | 313.4 | 0.71 | 2015-08-24 16:25:30 | 2015-08-25 11:53:00 | n |
| 100461 | IIEES | TABS | N | 356.1 | 0.63 | 2015-08-24 16:25:53 | 2015-08-25 11:53:00 | n |
| 100462 | IIEES | GHVR | E | 216.5 | 0.55 | 2015-08-24 16:26:07 | 2015-08-25 11:53:00 | n |
| 100463 | IIEES | YZKH | N | 138.4 | 0.63 | 2015-08-24 16:25:53 | 2015-08-25 11:53:00 | n |
| 100464 | IIEES | BSRN | N | 60.4 | 0.93 | 2015-08-24 16:27:17 | 2015-08-25 11:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | Z | Pg | E | 2015-08-24 16:24:06 | -0.2 | y | 122 | 141 | |||
| IIEES | MRVT | Z | Pg | E | 2015-08-24 16:24:06 | -0.13 | y | 122 | 43 | |||
| IIEES | MRVT | N | Sg | E | 2015-08-24 16:24:21 | 0.12 | y | 122 | 43 | |||
| IIEES | SHRO | N | Sg | E | 2015-08-24 16:24:21 | 0.22 | y | 122 | 141 | |||
| IIEES | BJRD | Z | Pn | E | 2015-08-24 16:24:20 | -0.13 | y | 221 | 64 | |||
| IIEES | DAMV | Z | Pn | E | 2015-08-24 16:24:32 | -0.67 | y | 317 | 245 | |||
| IIEES | CHTH | Z | Pn | E | 2015-08-24 16:24:41 | 0.8 | y | 376 | 255 | |||
| IIEES | TABS | Z | Pn | E | 2015-08-24 16:24:43 | -0.16 | y | 399 | 153 | |||
| IIEES | GHVR | Z | Pn | E | 2015-08-24 16:24:48 | -0.07 | y | 441 | 234 | |||
| IIEES | YZKH | Z | Pn | E | 2015-08-24 16:24:55 | -0.08 | y | 499 | 186 | |||
| IIEES | ZNJK | Z | Pn | E | 2015-08-24 16:25:05 | 0.21 | y | 578 | 270 | |||
| IIEES | SHRT | Z | Pn | E | 2015-08-24 16:25:06 | 0.26 | y | 588 | 126 | |||
| IIEES | BSRN | Z | Pn | E | 2015-08-24 16:25:15 | 0.06 | y | 654 | 145 | |||
