Magnitude |
:3.3 |
| Date & Time (UTC) | 2015-08-04 17:09:02.7 |
| Date & Time (Local) | 1394/5/13 21:39:02.7 |

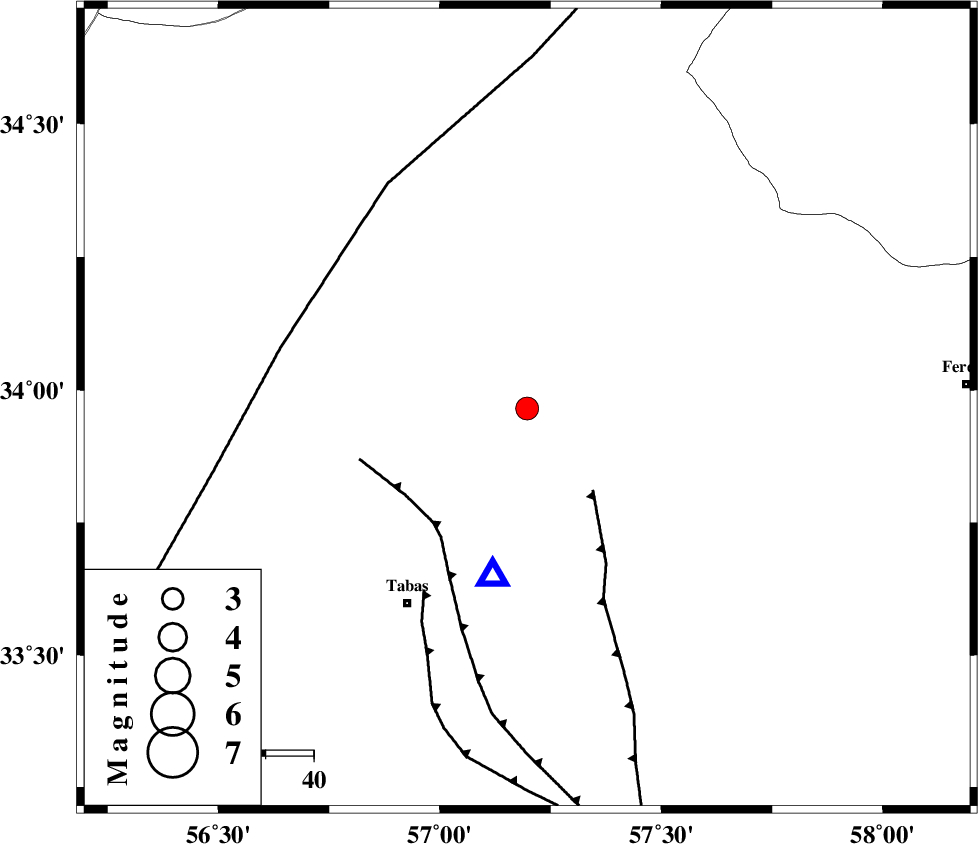

| Location | Lat:33.965 Lon: 57.197 |
| Region | Khorasan(center) Province, 48 km North-East of Tabas |
Nearest Cities |
|
| 16 km West of Qaniabad, Khorasan(center) Province | |
| 17 km North of Reqqeh, Khorasan(center) Province | |
| 24 km North West of Boshravieh, Khorasan(center) Province | |
| 35 km North West of Arsak, Khorasan(center) Province | |
| 46 km North East of Jokhvah, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 22 km | |
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 31 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 44 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 4.3 km |
| Error in Depth | 6.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 100251 | IIEES | TABS | E | 3309.9 | 0.25 | 2015-08-04 17:09:16 | 2015-08-05 06:01:00 | n |
| 100252 | IIEES | YZKH | N | 106.8 | 0.51 | 2015-08-04 17:10:37 | 2015-08-05 06:01:00 | n |
| 100253 | IIEES | YZKH | E | 89.4 | 0.51 | 2015-08-04 17:10:39 | 2015-08-05 06:01:00 | n |
| 100254 | IIEES | KRBR | E | 45.1 | 0.59 | 2015-08-04 17:11:14 | 2015-08-05 06:01:00 | n |
| 100255 | IIEES | KRBR | N | 43.1 | 0.59 | 2015-08-04 17:11:20 | 2015-08-05 06:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2015-08-04 17:09:09 | -0.38 | y | 35.8 | 192 | |||
| IIEES | TABS | E | Sg | E | 2015-08-04 17:09:14 | 0.36 | y | 35.8 | 192 | |||
| IIEES | SHRO | Z | Pn | E | 2015-08-04 17:09:41 | -0.39 | y | 251 | 335 | |||
| IIEES | SHRO | E | Sg | E | 2015-08-04 17:10:13 | -0.17 | y | 251 | 335 | |||
| IIEES | BSRN | Z | Pn | E | 2015-08-04 17:09:45 | -0.3 | y | 286 | 140 | |||
| IIEES | BSRN | N | Sg | E | 2015-08-04 17:10:23 | -0.11 | y | 286 | 140 | |||
| IIEES | SHRT | Z | Pn | E | 2015-08-04 17:09:46 | 0.2 | y | 289 | 96 | |||
| IIEES | YZKH | Z | Pn | E | 2015-08-04 17:09:47 | -0.4 | y | 299 | 235 | |||
| IIEES | MRVT | Z | Pn | E | 2015-08-04 17:10:03 | 0.83 | y | 422 | 347 | |||
| IIEES | NASN | Z | Pn | E | 2015-08-04 17:10:04 | 0.4 | y | 428 | 254 | |||
| IIEES | KRBR | Z | Pn | E | 2015-08-04 17:10:06 | 0.3 | y | 443 | 185 | |||
