مشخصات زلزله

Magnitude	:3.1
Date & Time (UTC)	2012-10-14 17:48:04.8
Date & Time (Local)	1391/7/23  21:18:04.8

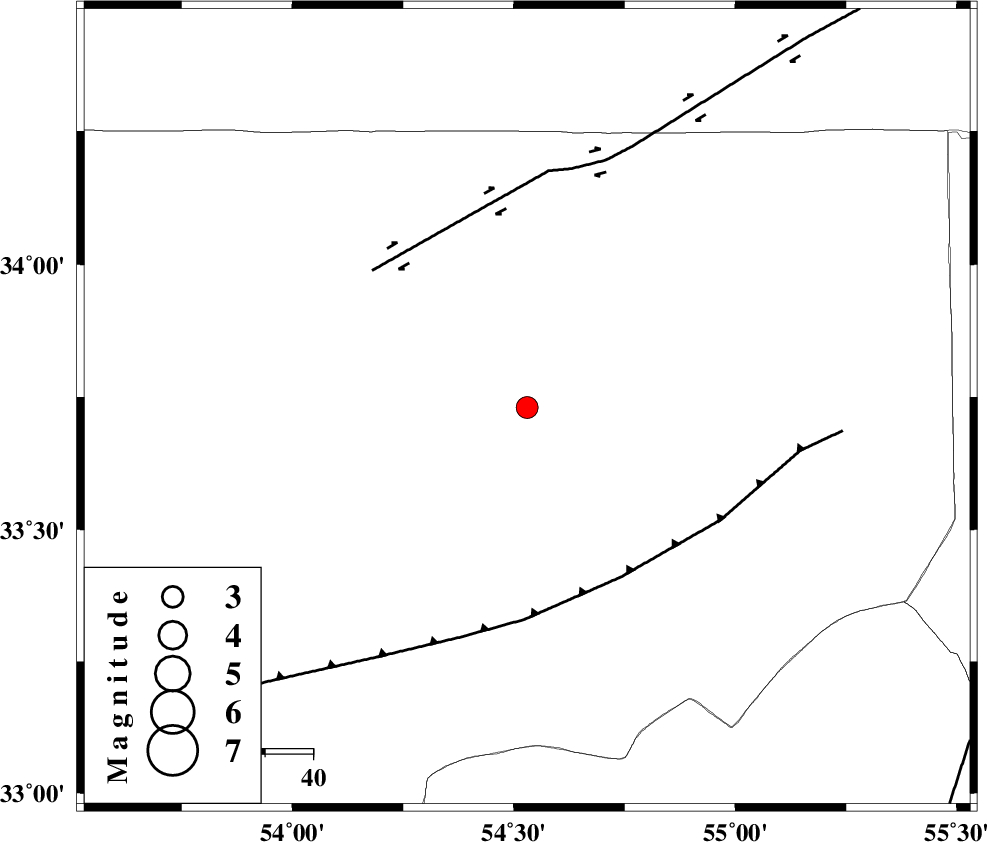

Location	Lat:33.73 Lon: 54.53
Region	Esfahan Province, 164 km North-East of Ardakan
Nearest Cities
	19 km North East of Chupanan, Esfahan Province
	36 km South East of Jondaq, Esfahan Province
	40 km South West of Farrokhi, Esfahan Province
	52 km West of Khur, Esfahan Province
	64 km North West of Mehranjan, Esfahan Province
Depth	18 km
Agency
Faults within 150 km:
	BIABANAK_F (Length: 162 km) , Distance to epicenter: 41 km
	DORUNEH_F (Length: 713 km) , Distance to epicenter: 43 km
	POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 115 km
Number of Phases	7
RMS	0.1
Number of Stations	5
Error in Latitude	>2 km
Error in Longitude	1.8 km
Error in Depth	4.7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
86587	IIEES	YZKH	E	270.1	0.48	2012-10-14 17:48:53	2012-10-14 05:58:00	n
86588	IIEES	TABS	N	114.9	0.52	2012-10-14 17:49:22	2012-10-14 05:58:00	n
86589	IIEES	SHRO	N	64.9	0.36	2012-10-14 17:49:26	2012-10-14 05:58:00	n
86590	IIEES	SHRO	E	92	0.52	2012-10-14 17:49:39	2012-10-14 05:58:00	n
86591	IIEES	GHVR	E	63.8	0.48	2012-10-14 17:49:52	2012-10-14 05:58:00	n
86592	IIEES	BSRN	E	17.1	0.48	2012-10-14 17:50:33	2012-10-14 05:58:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	YZKH	Z	Pg	E		2012-10-14 17:48:29	0.03	y		148	178
IIEES	YZKH	E	Sg	E		2012-10-14 17:48:47	-0.06	y		148	178
IIEES	TABS	Z	Pn	E		2012-10-14 17:48:42	0.11	y		240	91
IIEES	TABS	N	Sg	E		2012-10-14 17:49:12	0.06	y		240	91
IIEES	SHRO	Z	Pn	E		2012-10-14 17:48:47	-0.18	y		287	28
IIEES	GHVR	Z	Pn	E		2012-10-14 17:48:51	0.11	y		315	286
IIEES	BSRN	Z	Pn	E		2012-10-14 17:49:10	-0.11	y		472	113
