Magnitude |
:3.7 |
| Date & Time (UTC) | 2010-08-09 21:39:36.7 |
| Date & Time (Local) | 1389/5/19 02:09:36.7 |

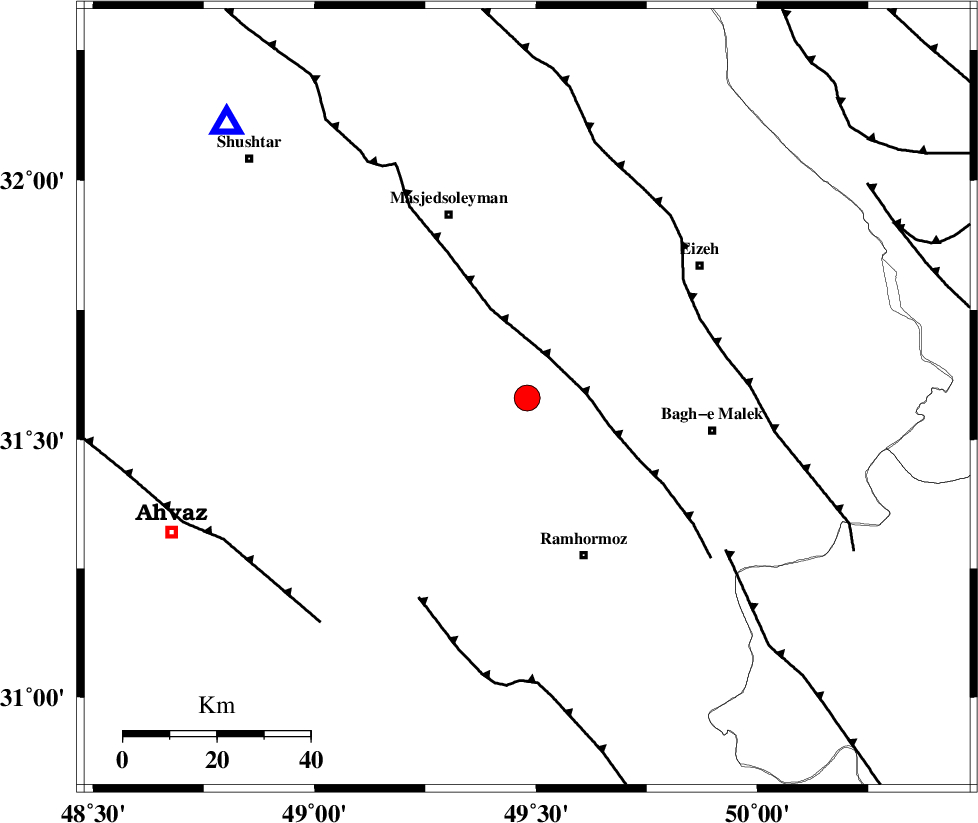

| Location | Lat:31.58 Lon: 49.48 |
| Region | Khoozestan Province, 36 km North-West of Ramhormoz |
Nearest Cities |
|
| 7 km North of Jaru, Khoozestan Province | |
| 10 km North of Gazin, Khoozestan Province | |
| 16 km North of Haftgol, Khoozestan Province | |
| 26 km North West of Midavood-e sofla, Khoozestan Province | |
| 35 km North of Marbacheh, Khoozestan Province | |
| Depth | 33 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 10 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 41 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 49 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 8 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 68310 | IIEES | KHMZ | E | 610.6 | 0.48 | 2010-08-09 21:40:43 | 2010-08-09 09:55:00 | n |
| 68311 | IIEES | KHMZ | N | 593.3 | 0.52 | 2010-08-09 21:40:43 | 2010-08-09 09:55:00 | n |
| 68312 | IIEES | ASAO | N | 164.8 | 0.8 | 2010-08-09 21:41:09 | 2010-08-09 09:55:00 | n |
| 68313 | IIEES | ASAO | E | 212.7 | 0.52 | 2010-08-09 21:41:12 | 2010-08-09 09:55:00 | n |
| 68314 | IIEES | GHVR | E | 170.9 | 0.68 | 2010-08-09 21:41:27 | 2010-08-09 09:55:00 | n |
| 68315 | IIEES | GHIR | N | 64.1 | 0.4 | 2010-08-09 21:41:44 | 2010-08-09 09:55:00 | n |
| 68316 | IIEES | GHIR | E | 64.9 | 0.68 | 2010-08-09 21:41:46 | 2010-08-09 09:55:00 | n |
| 68317 | IIEES | DAMV | N | 48 | 0.68 | 2010-08-09 21:41:59 | 2010-08-09 09:55:00 | n |
| 68318 | IIEES | DAMV | E | 55.2 | 0.6 | 2010-08-09 21:42:02 | 2010-08-09 09:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2010-08-09 21:39:51 | 0 | y | 86.9 | 313 | |||
| IIEES | KHMZ | E | Pn | E | 2010-08-09 21:40:13 | 0.1 | y | 244 | 11 | |||
| IIEES | ASAO | Z | Pn | E | 2010-08-09 21:40:24 | 0 | y | 334 | 9 | |||
| IIEES | NASN | Z | Pn | E | 2010-08-09 21:40:25 | -0.2 | y | 342 | 66 | |||
| IIEES | GHVR | Z | Pn | E | 2010-08-09 21:40:27 | 0.1 | y | 362 | 27 | |||
| IIEES | SNGE | Z | Pn | E | 2010-08-09 21:40:37 | -0.1 | y | 437 | 334 | |||
| IIEES | GHIR | Z | Pn | E | 2010-08-09 21:40:44 | 0.1 | y | 498 | 136 | |||
