مشخصات زلزله

Magnitude	:4.1
Date & Time (UTC)	2010-01-30 18:43:44.8
Date & Time (Local)	1388/11/10  22:13:44.8

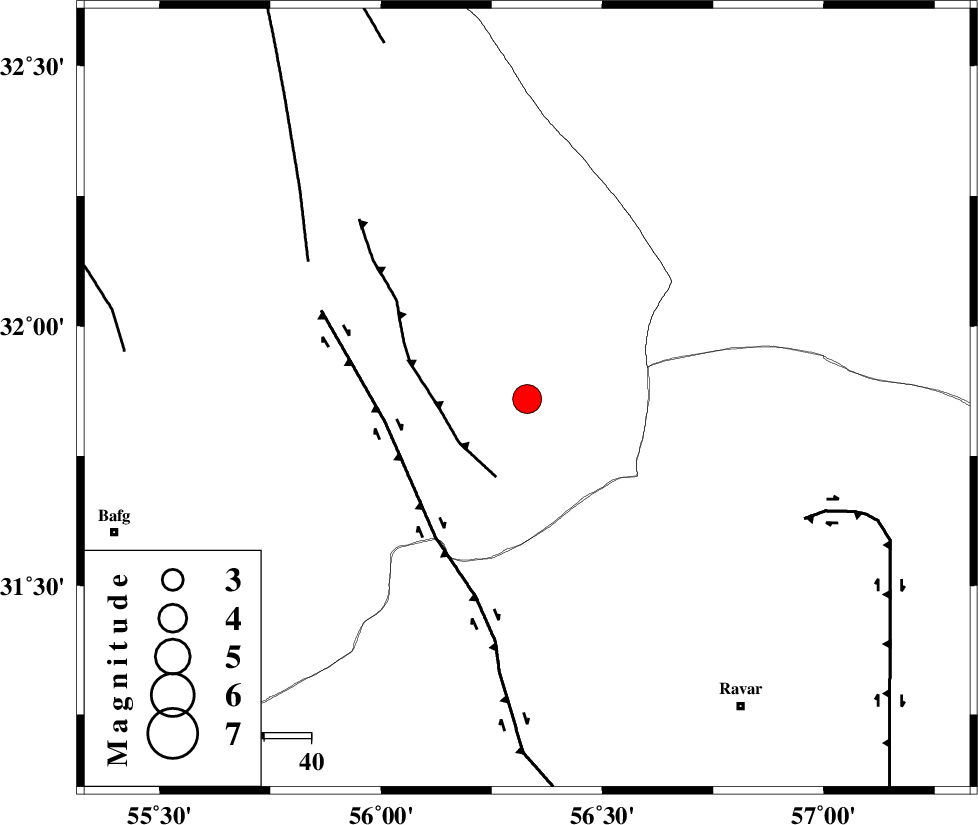

Location	Lat:31.86 Lon: 56.33
Region	80 km North-West of Ravar, Kerman Province
Nearest Cities
	23 km North East of Asfih, Yazd Province
	27 km North East of Benestan, Yazd Province
	29 km East of Behabad, Yazd Province
	49 km North of Kuhbanan, Kerman Province
	53 km North East of Kushk, Yazd Province
Depth	17 km
Agency
Faults within 150 km:
	JAFARABAD_F (Length: 60 km) , Distance to epicenter: 17 km
	KUHBANAN_F (Length: 189 km) , Distance to epicenter: 31 km
	SARBALA_F (Length: 92 km) , Distance to epicenter: 55 km
Number of Phases	6
RMS	0.2
Number of Stations	5
Error in Latitude	>2.4 km
Error in Longitude	6 km
Error in Depth	8.1 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
54670	IIEES	KRBR	N	8318	1.01	2010-01-30 18:44:48	2010-01-30 07:00:00	n
54671	IIEES	TABS	N	878.1	0.87	2010-01-30 18:44:54	2010-01-30 07:00:00	n
54672	IIEES	KRBR	E	7652.9	0.76	2010-01-30 18:44:47	2010-01-30 07:00:00	n
54673	IIEES	NASN	N	299.6	0	2010-01-30 18:45:31	2010-01-30 07:00:00	n
54674	IIEES	NASN	E	272.4	0	2010-01-30 18:45:34	2010-01-30 07:00:00	n
54675	IIEES	ZHSF	E	96.8	0.19	2010-01-30 18:46:17	2010-01-30 07:00:00	n
54676	IIEES	GHVR	E	89.9	0.14	2010-01-30 18:46:32	2010-01-30 07:00:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KRBR	Z	Pg	E		2010-01-30 18:44:19	-0.3	y		212	169
IIEES	KRBR	N	Sg	E		2010-01-30 18:44:45	0.2	y		212	169
IIEES	TABS	Z	Pg	E		2010-01-30 18:44:19	0.1	y		212	20
IIEES	NASN	Z	Pn	E		2010-01-30 18:44:35	-0.1	y		347	288
IIEES	ZHSF	Z	Pn	E		2010-01-30 18:44:53	-0.1	y		493	119
IIEES	GHVR	Z	Pn	E		2010-01-30 18:45:01	0.2	y		556	303
