Magnitude |
:3.1 |
| Date & Time (UTC) | 2010-01-28 13:35:42.1 |
| Date & Time (Local) | 1388/11/8 17:05:42.1 |

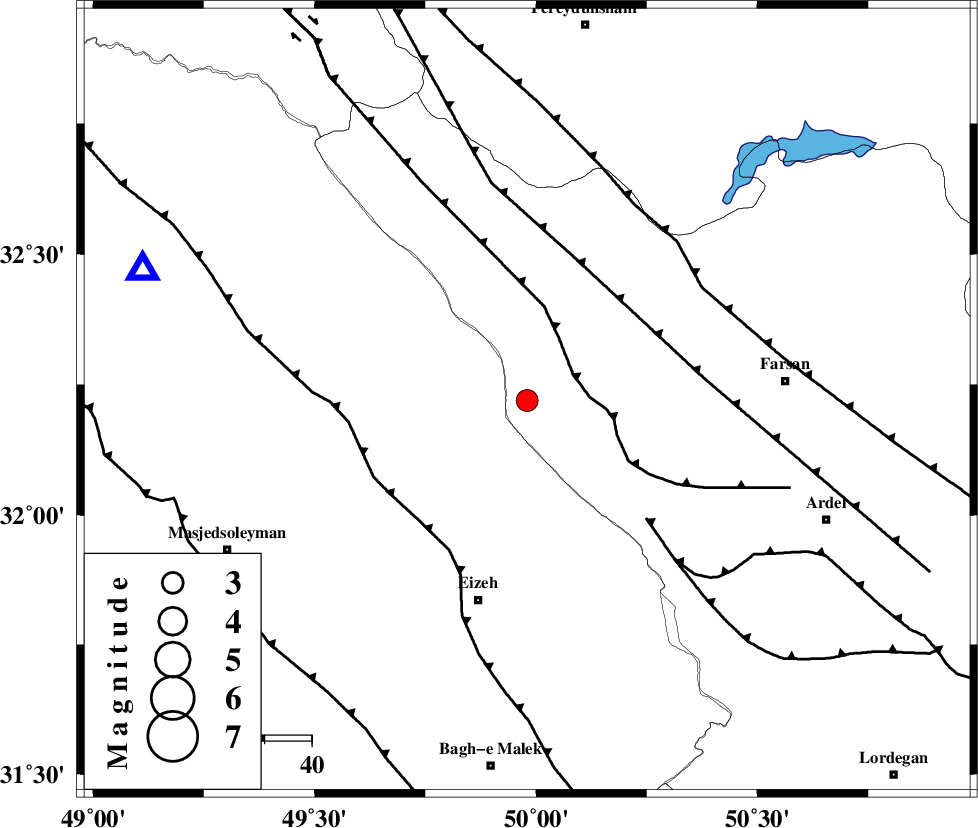

| Location | Lat:32.22 Lon: 49.98 |
| Region | 30 km South-West of Chelgard, Chaharmahal Bakhtiari Province |
Nearest Cities |
|
| 29 km North East of Torshak, Khoozestan Province | |
| 30 km South West of Chelgard, Chaharmahal Bakhtiari Province | |
| 40 km East of Paabshalal, Khoozestan Province | |
| 43 km North East of Rasvand, Khoozestan Province | |
| 44 km North East of Izeh, Khoozestan Province | |
| Depth | 44 km |
| Agency | |
Faults within 150 km: |
|
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 11 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 32 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 34 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 2.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 54510 | IIEES | SHGR | E | 425.1 | 0.48 | 2010-01-28 13:36:22 | 2010-01-28 01:49:00 | n |
| 54511 | IIEES | SHGR | N | 310.6 | 0.48 | 2010-01-28 13:36:24 | 2010-01-28 01:49:00 | n |
| 54512 | IIEES | KHMZ | N | 152.7 | 0.48 | 2010-01-28 13:36:34 | 2010-01-28 01:49:00 | n |
| 54513 | IIEES | KHMZ | E | 327.2 | 0.84 | 2010-01-28 13:36:35 | 2010-01-28 01:49:00 | n |
| 54514 | IIEES | ASAO | N | 103.6 | 0.6 | 2010-01-28 13:36:56 | 2010-01-28 01:49:00 | n |
| 54515 | IIEES | ASAO | E | 78.4 | 0.56 | 2010-01-28 13:37:08 | 2010-01-28 01:49:00 | n |
| 54516 | IIEES | GHVR | N | 103.4 | 0.64 | 2010-01-28 13:37:02 | 2010-01-28 01:49:00 | n |
| 54517 | IIEES | GHVR | E | 88 | 0.64 | 2010-01-28 13:37:07 | 2010-01-28 01:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2010-01-28 13:36:01 | 0 | y | 112 | 264 | |||
| IIEES | KHMZ | Z | Pn | E | 2010-01-28 13:36:08 | -0.1 | y | 169 | 359 | |||
| IIEES | KHMZ | E | Sg | E | 2010-01-28 13:36:30 | 0 | y | 169 | 359 | |||
| IIEES | ASAO | Z | Pn | E | 2010-01-28 13:36:19 | 0.2 | y | 258 | 1 | |||
| IIEES | GHVR | Z | Pn | E | 2010-01-28 13:36:21 | 0.1 | y | 277 | 25 | |||
| IIEES | GHVR | N | Sg | E | 2010-01-28 13:36:58 | -0.1 | y | 277 | 25 | |||
| IIEES | SNGE | Z | Pn | E | 2010-01-28 13:36:37 | -0.1 | y | 402 | 323 | |||
