Magnitude |
:3.1 |
| Date & Time (UTC) | 2009-02-05 23:44:46.4 |
| Date & Time (Local) | 1387/11/18 03:14:46.4 |

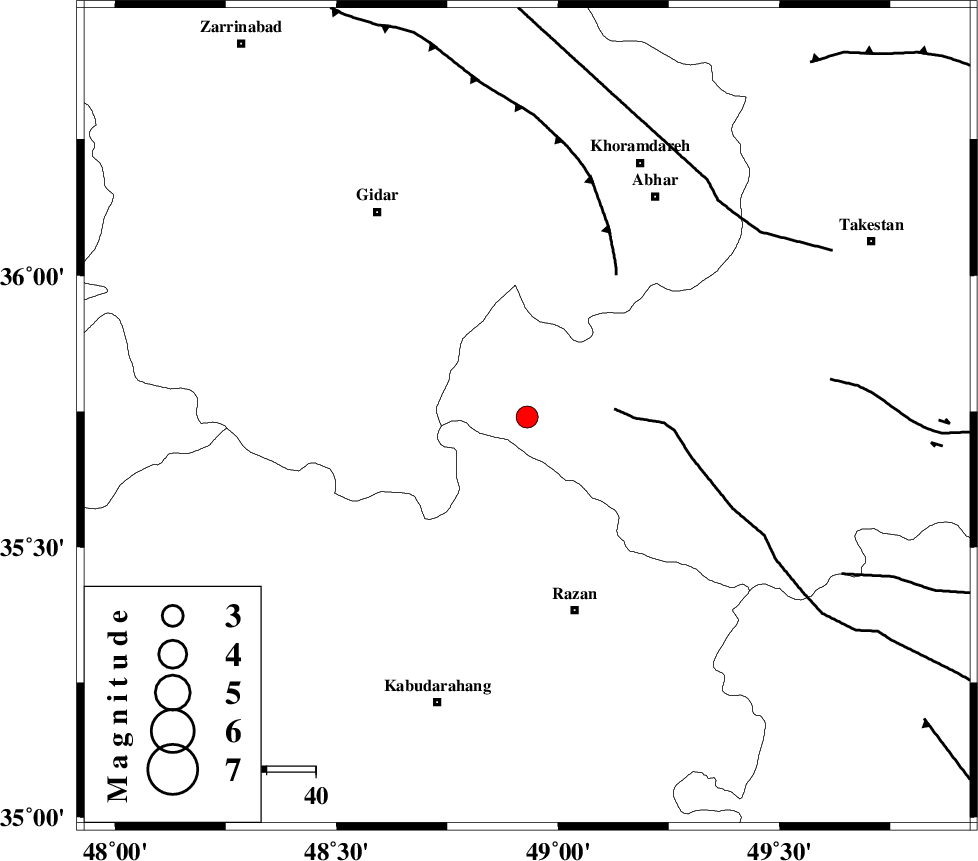

| Location | Lat:35.74 Lon: 48.93 |
| Region | 40 km North-West of Razan, Hamedan Province |
Nearest Cities |
|
| 24 km North East of Kahla, Zanjan Province | |
| 27 km North East of Khorandeh, Hamedan Province | |
| 32 km West of Ab-e garm, Ghazvin Province | |
| 33 km North West of Avaj, Ghazvin Province | |
| 35 km North East of Damag, Hamedan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 18 km | |
| SOLTANIYEH_F (Length: 119 km) , Distance to epicenter: 34 km | |
| ZANJAN_F (Length: 137 km) , Distance to epicenter: 59 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 51839 | IIEES | SNGE | N | 343.8 | 0.56 | 2009-02-05 23:45:34 | 2009-06-27 08:52:00 | n |
| 51840 | IIEES | SNGE | E | 207.6 | 0.48 | 2009-02-05 23:45:38 | 2009-06-27 08:52:00 | n |
| 51841 | IIEES | THKV | E | 186.9 | 0.56 | 2009-02-05 23:45:43 | 2009-06-27 08:52:00 | n |
| 51842 | IIEES | DAMV | N | 91.7 | 0.64 | 2009-02-05 23:46:06 | 2009-06-27 08:52:00 | n |
| 51843 | IIEES | DAMV | E | 85.9 | 0.44 | 2009-02-05 23:46:11 | 2009-06-27 08:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2009-02-05 23:45:04 | -0.2 | y | 105 | 348 | |||
| IIEES | SNGE | Z | Pg | E | 2009-02-05 23:45:13 | 0.1 | y | 161 | 244 | |||
| IIEES | SNGE | E | Sg | E | 2009-02-05 23:45:32 | 0.2 | y | 161 | 244 | |||
| IIEES | ASAO | Z | Pg | E | 2009-02-05 23:45:14 | 0.2 | y | 166 | 143 | |||
| IIEES | THKV | Z | Pg | E | 2009-02-05 23:45:15 | 0.1 | y | 177 | 83 | |||
| IIEES | THKV | N | Sg | E | 2009-02-05 23:45:37 | 0.4 | y | 177 | 83 | |||
| IIEES | CHTH | Z | Pg | E | 2009-02-05 23:45:18 | -0.5 | y | 199 | 84 | |||
| IIEES | CHTH | E | Sg | E | 2009-02-05 23:45:43 | 0.2 | y | 199 | 84 | |||
| IIEES | KHMZ | Z | Pg | E | 2009-02-05 23:45:25 | -0.5 | y | 241 | 157 | |||
| IIEES | DAMV | Z | Pn | E | 2009-02-05 23:45:28 | 0 | y | 275 | 92 | |||
