Magnitude |
:4.2 |
| Date & Time (UTC) | 2008-02-13 20:55:31.5 |
| Date & Time (Local) | 1386/11/25 00:25:31.5 |

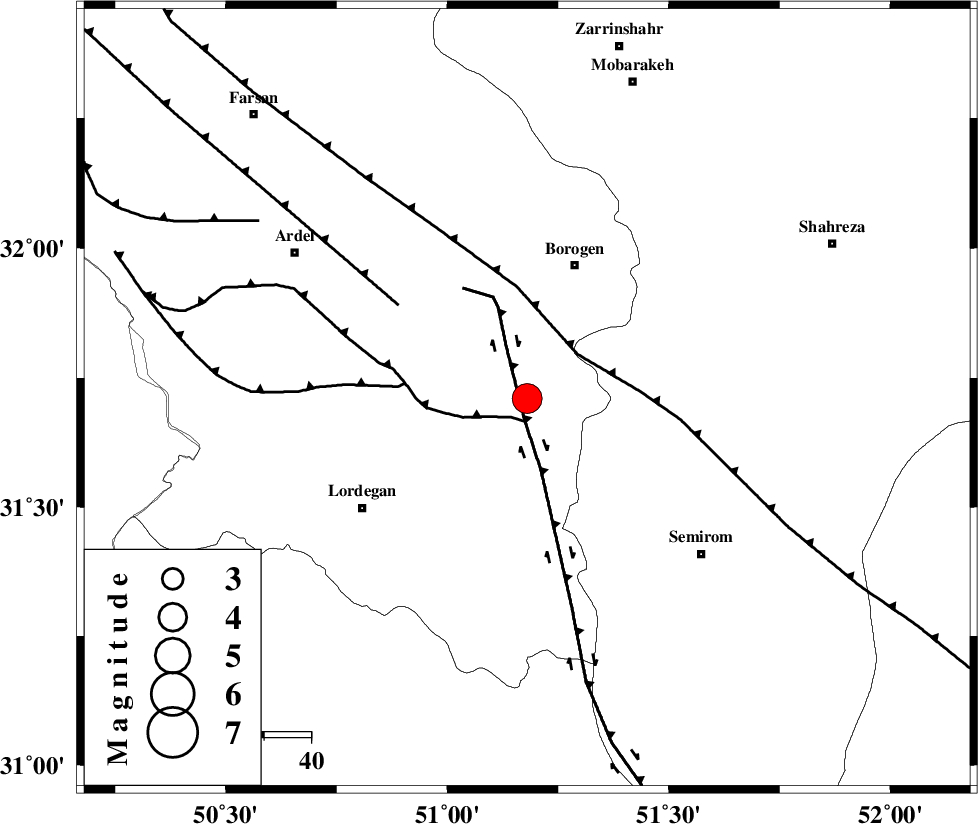

| Location | Lat:31.71 Lon: 51.18 |
| Region | 30 km South-West of Borujen, Chaharmahal Bakhtiari Province |
Nearest Cities |
|
| 17 km South of Gandoman, Chaharmahal Bakhtiari Province | |
| 21 km North East of Aluni, Chaharmahal Bakhtiari Province | |
| 25 km North West of Vanak, Esfahan Province | |
| 27 km South East of Baladaji, Chaharmahal Bakhtiari Province | |
| 30 km South West of Borujen, Chaharmahal Bakhtiari Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DENA_F (Length: 137 km) , Distance to epicenter: 5 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 5 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 14 km | |
| Number of Phases | 10 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | >6.1 km |
| Error in Longitude | 8.5 km |
| Error in Depth | 12.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 48266 | IIEES | SHGR | N | 2371.2 | 0.77 | 2008-02-13 20:56:49 | 2008-12-28 01:25:00 | n |
| 48267 | IIEES | SHGR | E | 2484.4 | 0.77 | 2008-02-13 20:56:51 | 2008-12-28 01:25:00 | n |
| 48268 | IIEES | GHVR | E | 734.2 | 0.85 | 2008-02-13 20:57:11 | 2008-12-28 01:25:00 | n |
| 48269 | IIEES | ASAO | N | 723.3 | 0.64 | 2008-02-13 20:57:15 | 2008-12-28 01:25:00 | n |
| 48270 | IIEES | GHIR | N | 259.1 | 0.79 | 2008-02-13 20:57:51 | 2008-12-28 01:25:00 | n |
| 48271 | IIEES | DAMV | N | 237.4 | 0.65 | 2008-02-13 20:57:43 | 2008-12-28 01:25:00 | n |
| 48272 | IIEES | THKV | E | 205.7 | 0.72 | 2008-02-13 20:57:51 | 2008-12-28 01:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pg | E | 2008-02-13 20:56:03 | -0.7 | y | 195 | 51 | |||
| IIEES | SHGR | Z | Pg | E | 2008-02-13 20:56:08 | -0.4 | y | 229 | 282 | |||
| IIEES | GHVR | Z | Pn | E | 2008-02-13 20:56:18 | 1 | y | 307 | 1 | |||
| IIEES | ASAO | Z | Pn | E | 2008-02-13 20:56:20 | -0.3 | y | 332 | 341 | |||
| IIEES | ASAO | E | Sg | E | 2008-02-13 20:57:05 | 0.3 | y | 332 | 341 | |||
| IIEES | GHIR | Z | Pn | E | 2008-02-13 20:56:31 | 0.5 | y | 418 | 155 | |||
| IIEES | DAMV | Z | Pn | E | 2008-02-13 20:56:33 | -0.3 | y | 441 | 9 | |||
| IIEES | THKV | Z | Pn | E | 2008-02-13 20:56:37 | 0.3 | y | 467 | 357 | |||
| IIEES | ZNJK | Z | Pn | E | 2008-02-13 20:56:53 | -0.3 | y | 596 | 338 | |||
| IIEES | BNDS | Z | Pn | E | 2008-02-13 20:57:03 | -0.1 | y | 680 | 133 | |||
