Magnitude |
:3.2 |
| Date & Time (UTC) | 2007-08-01 14:45:04.1 |
| Date & Time (Local) | 1386/5/10 18:15:04.1 |

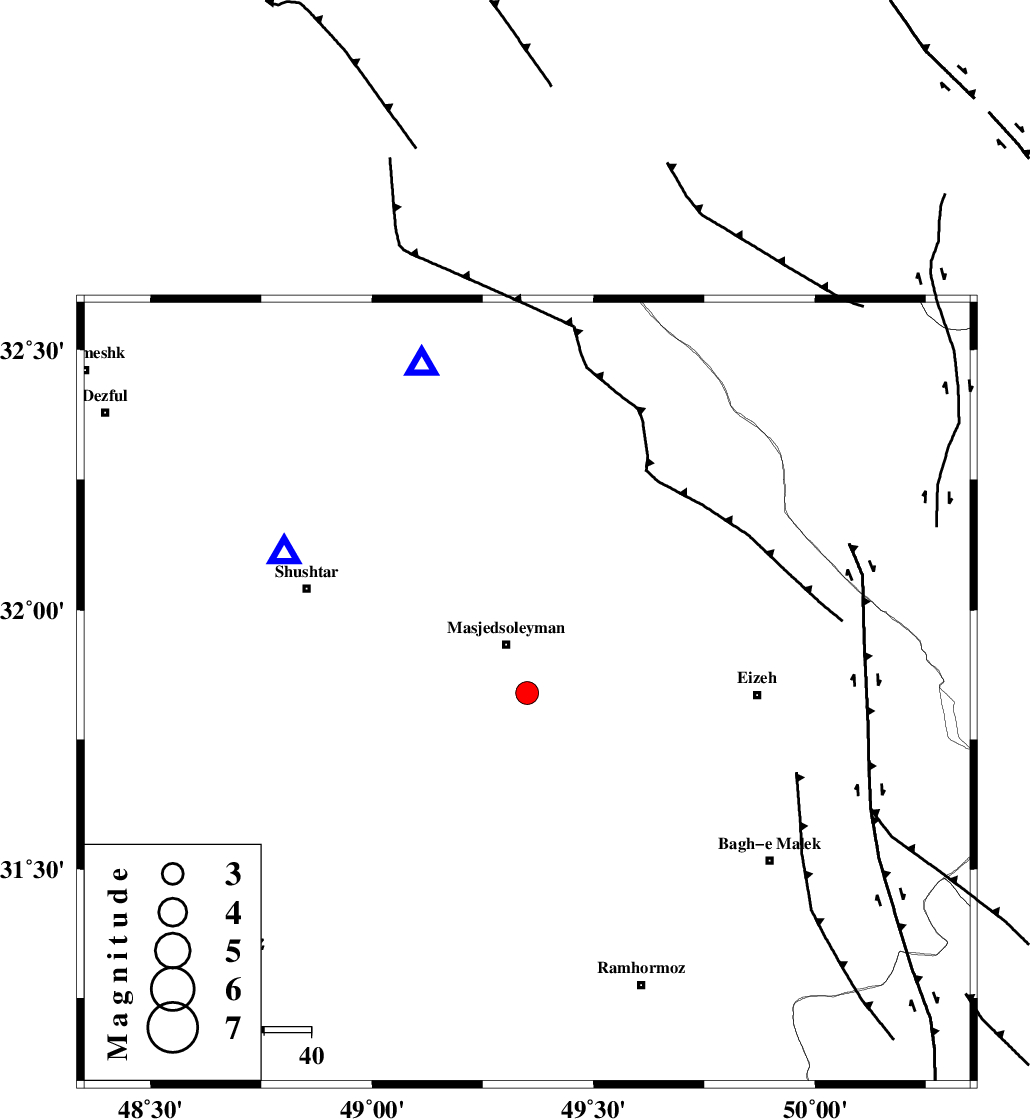

| Location | Lat:31.84 Lon: 49.35 |
| Region | 11 km Masjed Soleyman, Khoozestan Province |
Nearest Cities |
|
| 11 km of Masjed Soleyman, Khoozestan Province | |
| 31 km North of Gazin, Khoozestan Province | |
| 37 km North West of Jaru, Khoozestan Province | |
| 41 km North West of Chenarestan, Khoozestan Province | |
| 42 km South of Qale-yekhvaju, Khoozestan Province | |
| Depth | 33 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 6 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 37 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 73 km | |
| Number of Phases | 11 |
| RMS | 0.5 |
| Number of Stations | 8 |
| Error in Latitude | >7.6 km |
| Error in Longitude | 8.8 km |
| Error in Depth | 11.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 38778 | IIEES | SHGR | N | 829.6 | 0.72 | 2007-08-01 14:45:29 | 2007-11-04 01:43:00 | n |
| 38779 | IIEES | SHGR | E | 972 | 0.56 | 2007-08-01 14:45:35 | 2007-11-04 01:43:00 | n |
| 38780 | IIEES | ASAO | N | 129.9 | 0.68 | 2007-08-01 14:46:38 | 2007-11-04 01:43:00 | n |
| 38781 | IIEES | ASAO | E | 80 | 0.56 | 2007-08-01 14:46:40 | 2007-11-04 01:43:00 | n |
| 38782 | IIEES | GHVR | N | 98.5 | 0.88 | 2007-08-01 14:46:45 | 2007-11-04 01:43:00 | n |
| 38783 | IIEES | GHVR | E | 79.2 | 0.52 | 2007-08-01 14:46:49 | 2007-11-04 01:43:00 | n |
| 38784 | IIEES | SNGE | N | 42.9 | 0.32 | 2007-08-01 14:46:47 | 2007-11-04 01:43:00 | n |
| 38785 | IIEES | SNGE | E | 50.6 | 0.36 | 2007-08-01 14:46:47 | 2007-11-04 01:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2007-08-01 14:45:14 | -0.3 | y | 60.2 | 300 | |||
| IIEES | SHGR | N | Sg | E | 2007-08-01 14:45:23 | 0.1 | y | 60.2 | 300 | |||
| IIEES | ASAO | Z | Pn | E | 2007-08-01 14:45:48 | 0.5 | y | 307 | 12 | |||
| IIEES | ASAO | N | Sg | E | 2007-08-01 14:46:28 | 0.1 | y | 307 | 12 | |||
| IIEES | GHVR | Z | Pn | E | 2007-08-01 14:45:53 | 0.8 | y | 342 | 31 | |||
| IIEES | NASN | Z | Pn | E | 2007-08-01 14:45:52 | -0.4 | y | 342 | 71 | |||
| IIEES | GHVR | E | Sg | E | 2007-08-01 14:46:37 | 0.1 | y | 342 | 31 | |||
| IIEES | SNGE | Z | Pn | E | 2007-08-01 14:46:00 | 0.1 | y | 406 | 333 | |||
| IIEES | CHTH | Z | Pn | E | 2007-08-01 14:46:09 | -0.9 | y | 480 | 19 | |||
| IIEES | DAMV | Z | Pn | E | 2007-08-01 14:46:09 | -0.9 | y | 486 | 29 | |||
| IIEES | GHIR | Z | Pn | E | 2007-08-01 14:46:16 | 0.5 | y | 527 | 137 | |||
