مشخصات زلزله

Magnitude	:3.7
Date & Time (UTC)	2004-12-26 19:37:41.5
Date & Time (Local)	1383/10/6  23:07:41.5

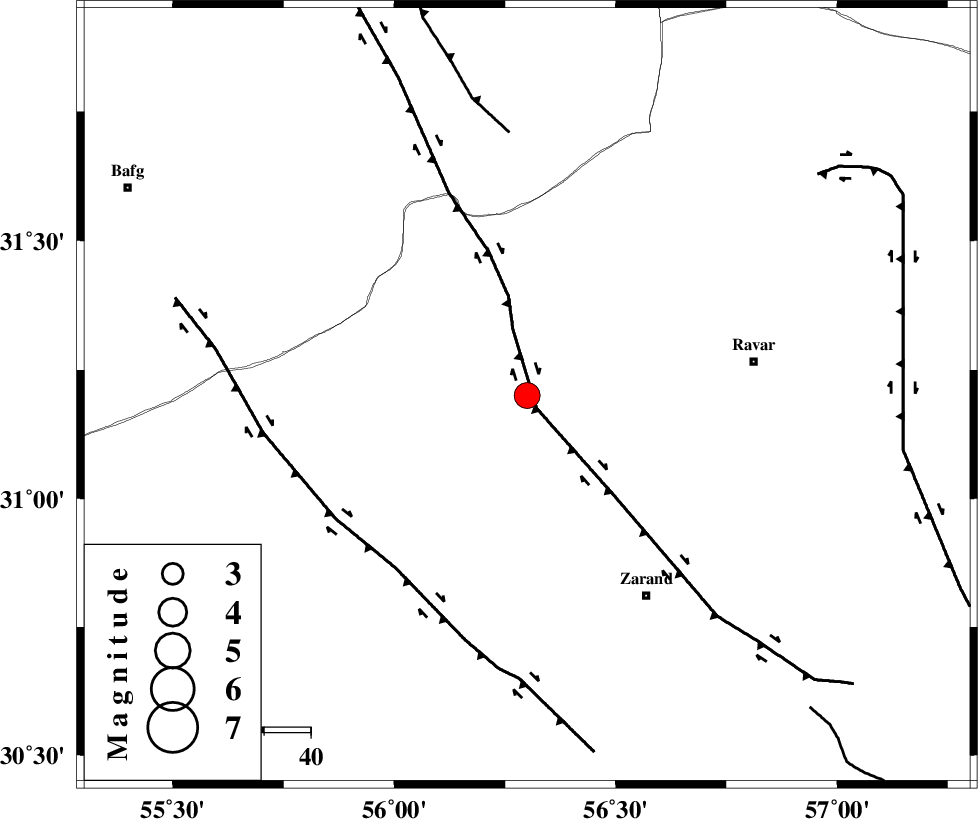

Location	Lat:31.2 Lon: 56.3
Region	49 km West of Ravar, Kerman Province
Nearest Cities
	13 km North West of Toghroljerd, Kerman Province
	18 km South of Jor, Kerman Province
	24 km South of Kuhbanan, Kerman Province
	29 km North West of Dasht-e khak, Kerman Province
	37 km North East of Seyriz, Kerman Province
Depth	14 km
Agency
Faults within 150 km:
	KUHBANAN_F (Length: 189 km) , Distance to epicenter: 3 km
	DARIVAN_F (Length: 131 km) , Distance to epicenter: 47 km
	JAFARABAD_F (Length: 60 km) , Distance to epicenter: 57 km
Number of Phases	7
RMS	0.2
Number of Stations	5
Error in Latitude	>7.3 km
Error in Longitude	10.7 km
Error in Depth	7.7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude
UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
31435	IIEES	KRBR	N	1123.5	0.23	2004-12-26 19:38:27	2006-03-15 11:56:00	n
31436	IIEES	KRBR	E	1370.2	0.22	2004-12-26 19:38:29	2006-03-15 11:56:00	n
31437	IIEES	NASN	N	255.1	0.64	2004-12-26 19:39:30	2006-03-15 11:56:00	n
31438	IIEES	NASN	E	233.5	0.48	2004-12-26 19:39:31	2006-03-15 11:56:00	n
31439	IIEES	BNDS	E	105.7	0.48	2004-12-26 19:39:48	2006-03-15 11:56:00	n
31440	IIEES	BNDS	N	92.7	0.64	2004-12-26 19:39:50	2006-03-15 11:56:00	n

Phase
Agency	Station	Component	Phase Type	Phase Quality	First Motion	Observed Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KRBR	Z	PG	E		2004-12-26 19:38:04	-0.3	y		141	162
IIEES	KRBR	N	SG	E		2004-12-26 19:38:22	0.1	y		141	162
IIEES	NASN	Z	PN	E		2004-12-26 19:38:36	0.1	y		375	299
IIEES	NASN	N	SG	E		2004-12-26 19:39:26	-0.1	y		375	299
IIEES	BNDS	Z	PN	E		2004-12-26 19:38:41	0.2	y		421	182
IIEES	DAMV	Z	PN	E		2004-12-26 19:39:08	0.2	y		636	322
IIEES	ASAO	Z	PN	E		2004-12-26 19:39:15	-0.3	y		695	304
