Magnitude |
:3 |
| Date & Time (UTC) | 2013-08-31 21:21:31.2 |
| Date & Time (Local) | 1392/6/10 01:51:31.2 |

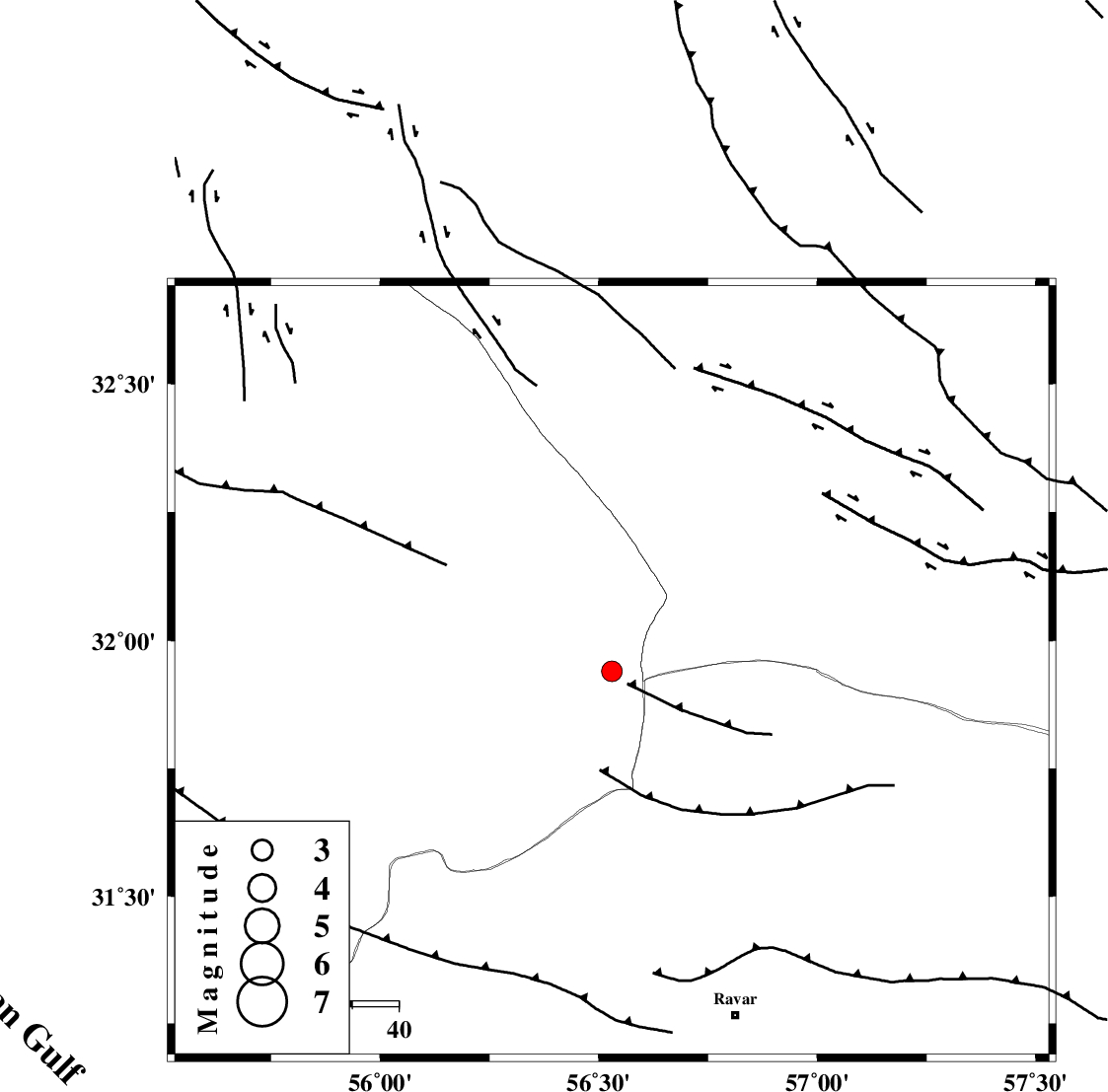

| Location | Lat:31.94 Lon: 56.53 |
| Region | Yazd Province, 80 km North-West of Ravar |
Nearest Cities |
|
| 42 km North East of Asfih, Yazd Province | |
| 48 km North East of Behabad, Yazd Province | |
| 48 km North East of Benestan, Yazd Province | |
| 62 km North East of Kuhbanan, Kerman Province | |
| 68 km North East of Jor, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 36 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 51 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 53 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90413 | IIEES | YZKH | E | 134.5 | 0.28 | 2013-08-31 21:22:28 | 2013-08-31 10:44:00 | n |
| 90414 | IIEES | TABS | N | 75.8 | 0.32 | 2013-08-31 21:22:32 | 2013-08-31 10:44:00 | n |
| 90415 | IIEES | KRBR | N | 189.2 | 0.56 | 2013-08-31 21:22:38 | 2013-08-31 10:44:00 | n |
| 90416 | IIEES | KRBR | E | 141 | 0.32 | 2013-08-31 21:22:40 | 2013-08-31 10:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2013-08-31 21:22:02 | 0.04 | y | 189 | 286 | |||
| IIEES | TABS | Z | Pg | E | 2013-08-31 21:22:03 | -0.06 | y | 198 | 16 | |||
| IIEES | KRBR | Z | Pg | E | 2013-08-31 21:22:07 | -0.05 | y | 218 | 174 | |||
| IIEES | BSRN | Z | Pn | E | 2013-08-31 21:22:09 | 0.07 | y | 246 | 89 | |||
