Magnitude |
:2.6 |
| Date & Time (UTC) | 2013-08-08 02:17:43.0 |
| Date & Time (Local) | 1392/5/17 06:47:43.0 |

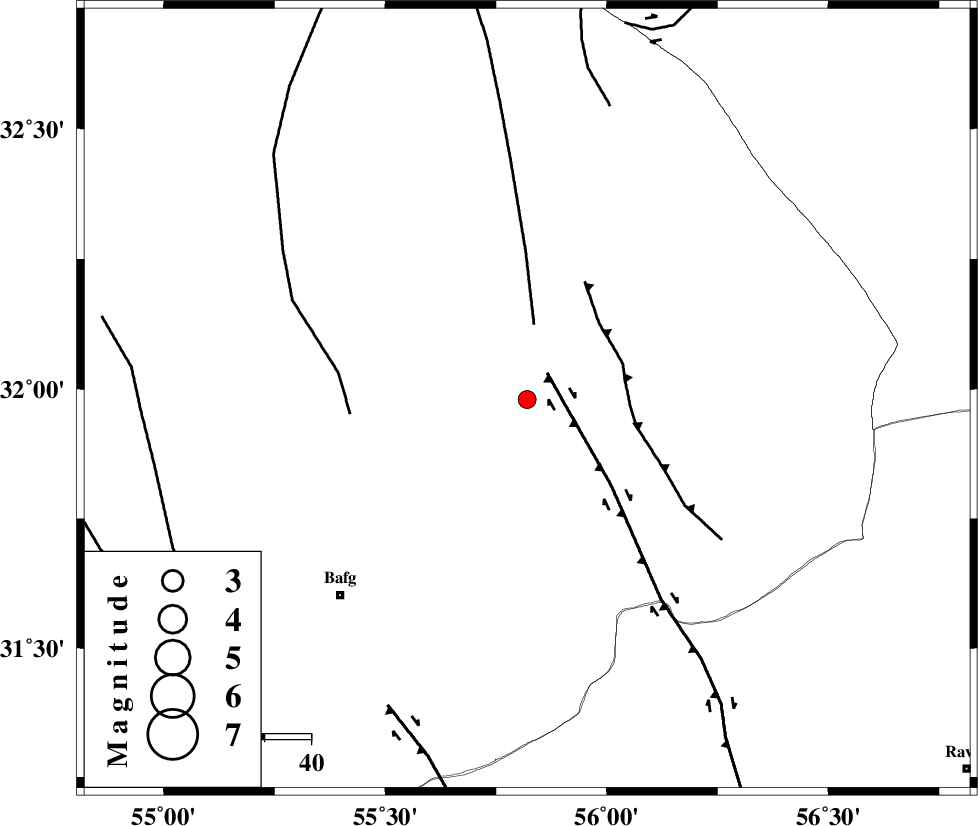

| Location | Lat:31.98 Lon: 55.82 |
| Region | Yazd Province, 58 km North-East of Bafq |
Nearest Cities |
|
| 23 km North West of Behabad, Yazd Province | |
| 27 km North of Kushk, Yazd Province | |
| 37 km North West of Benestan, Yazd Province | |
| 52 km North West of Asfih, Yazd Province | |
| 54 km North East of Mobarake, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 7 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 16 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 21 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >3.7 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90155 | IIEES | YZKH | N | 76.2 | 0.28 | 2013-08-08 02:18:25 | 2013-08-08 04:16:00 | n |
| 90156 | IIEES | KRBR | N | 48.6 | 0.44 | 2013-08-08 02:18:57 | 2013-08-08 04:16:00 | n |
| 90157 | IIEES | KRBR | E | 43.3 | 0.24 | 2013-08-08 02:18:58 | 2013-08-08 04:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2013-08-08 02:18:03 | -0.07 | y | 125 | 292 | |||
| IIEES | YZKH | N | Sg | E | 2013-08-08 02:18:19 | 0.05 | y | 125 | 292 | |||
| IIEES | TABS | Z | Pn | E | 2013-08-08 02:18:18 | 0.16 | y | 222 | 33 | |||
| IIEES | TABS | E | Sg | E | 2013-08-08 02:18:45 | -0.06 | y | 222 | 33 | |||
| IIEES | BSRN | Z | Pn | E | 2013-08-08 02:18:29 | -0.09 | y | 312 | 89 | |||
