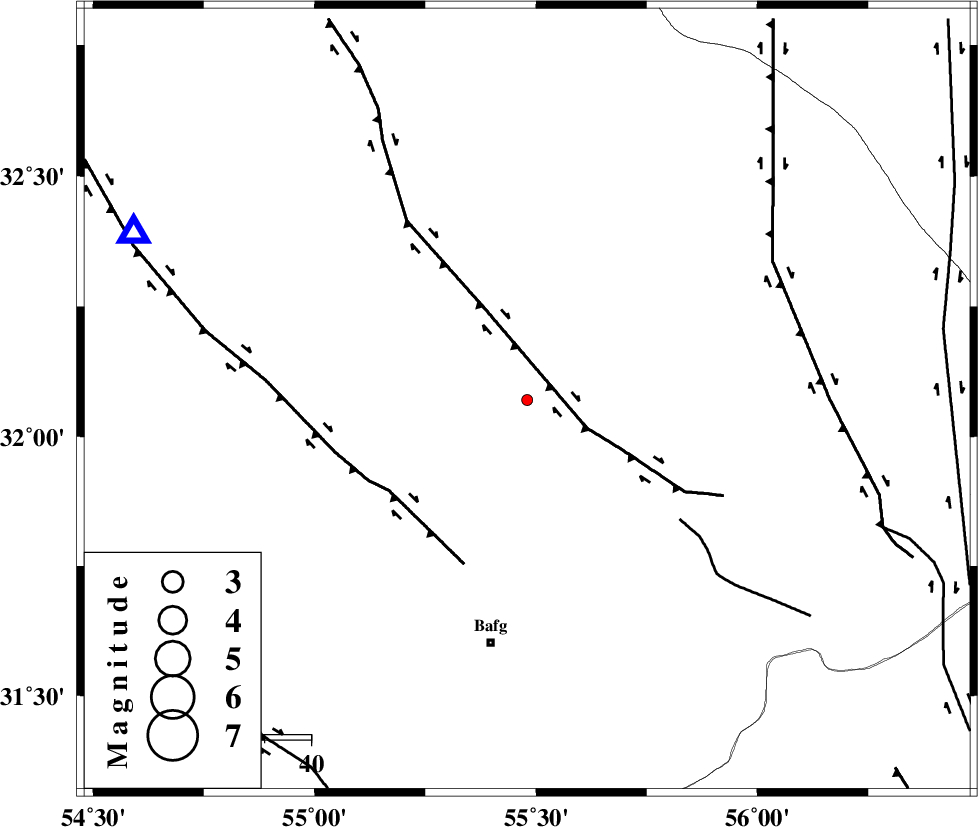

Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 :1.5
Date & Time (UTC) 2013-05-20 10:04:12.9
Date & Time (Local) 1392/2/30  14:34:12.9
Location Lat:32.07 Lon: 55.48
Region Yazd Province, 53 km North of Bafq
Nearest Cities
47 km North West of Kushk, Yazd Province
50 km North of Mobarake, Yazd Province
53 km North of Bafq, Yazd Province
56 km North West of Behabad, Yazd Province
68 km North West of Benestan, Yazd Province
Depth 18 km
Agency
Faults within 150 km:
POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 9 km
SARBALA_F (Length: 92 km) , Distance to epicenter: 34 km
KUHBANAN_F (Length: 189 km) , Distance to epicenter: 37 km
Number of Phases 4
RMS 0
Number of Stations 3
Error in Latitude >4.4 km
Error in Longitude 2.8 km
Error in Depth 6.1 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
89370IIEESYZKHE 11.20.282013-05-20 10:04:422013-05-21 12:17:00n
89371IIEESYZKHN 11.60.322013-05-20 10:04:522013-05-21 12:17:00n
89372IIEESTABSE 3.20.322013-05-20 10:05:232013-05-21 12:17:00n
89373IIEESTABSN 5.80.562013-05-20 10:05:252013-05-21 12:17:00n
89374IIEESBSRNE 1.40.362013-05-20 10:05:562013-05-21 12:17:00n
89375IIEESBSRNN 1.50.482013-05-20 10:05:592013-05-21 12:17:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESYZKHZ Pg E2013-05-20 10:04:280y90.5293
IIEESTABSZ Pn E2013-05-20 10:04:49-0.06y23341
IIEESTABSN Sg E2013-05-20 10:05:180.01y23341
IIEESBSRNZ Pn E2013-05-20 10:05:030.05y34591
