Magnitude |
:2.6 |
| Date & Time (UTC) | 2013-05-20 18:09:42.9 |
| Date & Time (Local) | 1392/2/30 22:39:42.9 |

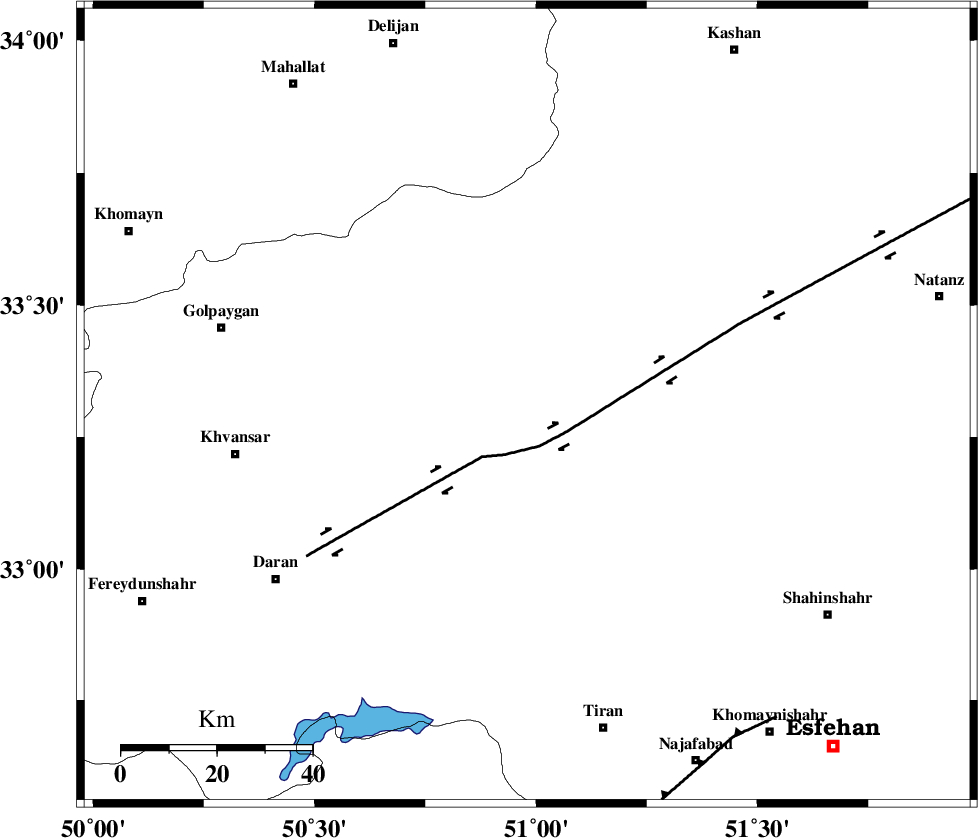

| Location | Lat:33.31 Lon: 50.98 |
| Region | Esfahan Province, 62 km East of Khvansar |
Nearest Cities |
|
| 19 km South East of Hasan robat, Esfahan Province | |
| 22 km West of Vandadeh, Esfahan Province | |
| 22 km South West of Vazvan, Esfahan Province | |
| 22 km North of Dehaq, Esfahan Province | |
| 23 km South West of Meymeh, Esfahan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZEFREH_F (Length: 124 km) , Distance to epicenter: 74 km | |
| KASHAN_F (Length: 44 km) , Distance to epicenter: 74 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 105 km | |
| Number of Phases | 5 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >5.8 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89366 | IIEES | KHMZ | N | 191.7 | 0.27 | 2013-05-20 18:10:16 | 2013-05-20 08:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2013-05-20 18:10:01 | 0.25 | y | 106 | 297 | |||
| IIEES | GHVR | Z | Pg | E | 2013-05-20 18:10:05 | 0.26 | y | 133 | 11 | |||
| IIEES | ASAO | Z | Pg | E | 2013-05-20 18:10:09 | -0.46 | y | 164 | 328 | |||
| IIEES | NASN | Z | Pn | E | 2013-05-20 18:10:13 | 0 | y | 180 | 108 | |||
| IIEES | NASN | E | Sg | E | 2013-05-20 18:10:34 | -0.05 | y | 180 | 108 | |||
