Magnitude |
:2 |
| Date & Time (UTC) | 2013-04-02 00:50:20.3 |
| Date & Time (Local) | 1392/1/13 05:20:20.3 |
| Location | Lat:34.37 Lon: 54.33 |
| Region | Semnan Province, 200 km South of Damghan |
Nearest Cities |
|
| 37 km North of Jondaq, Esfahan Province | |
| 81 km North West of Farrokhi, Esfahan Province | |
| 84 km North of Chupanan, Esfahan Province | |
| 96 km North West of Khur, Esfahan Province | |
| 120 km North East of Maedan, Esfahan Province | |
| Depth | 14 km |
| Agency | |

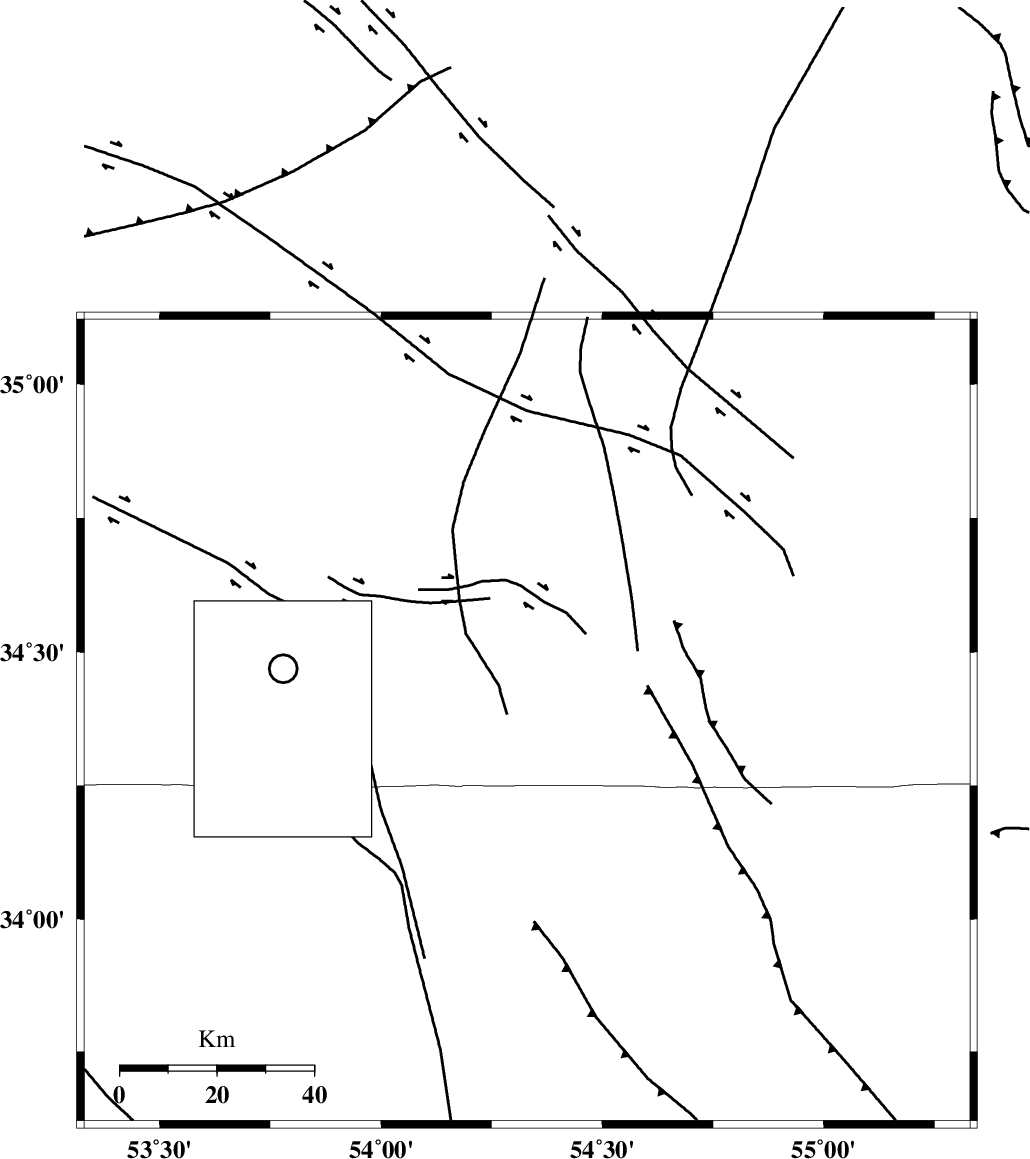

Faults within 150 km: |
|
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 31 km | |
| TORUD_F (Length: 136 km) , Distance to epicenter: 94 km | |
| KUH_E_GUGERD_F (Length: 73 km) , Distance to epicenter: 98 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 6.3 km |
| Error in Depth | 3.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88389 | IIEES | SHRO | E | 11.1 | 0.32 | 2013-04-02 00:51:29 | 2013-04-03 03:58:00 | n |
| 88390 | IIEES | SHRO | N | 10.8 | 0.28 | 2013-04-02 00:51:32 | 2013-04-03 03:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pn | E | 2013-04-02 00:50:55 | 0.02 | y | 221 | 174 | |||
| IIEES | YZKH | E | Sg | E | 2013-04-02 00:51:23 | -0.04 | y | 221 | 174 | |||
| IIEES | SHRO | Z | Pn | E | 2013-04-02 00:50:57 | -0.04 | y | 238 | 40 | |||
| IIEES | SHRO | E | Sg | E | 2013-04-02 00:51:27 | -0.03 | y | 238 | 40 | |||
| IIEES | TABS | E | Pn | E | 2013-04-02 00:51:01 | 0.1 | y | 269 | 106 | |||
