Magnitude
 :3.2
Date & Time (UTC) 2013-01-18 01:12:47.4
Date & Time (Local) 1391/10/29  04:42:47.4

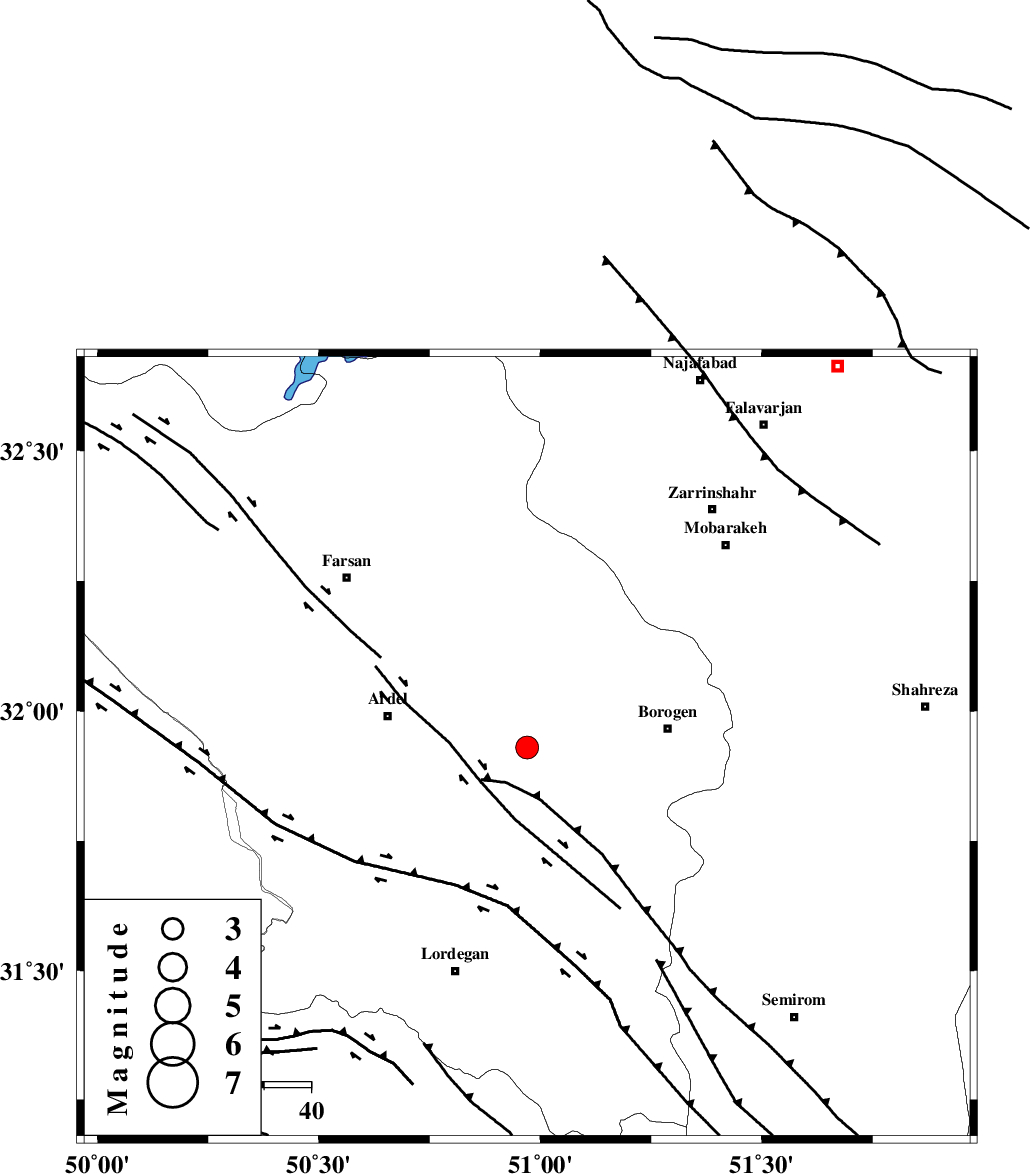

Location Lat:31.93 Lon: 50.97
Region Chaharmahal Bakhtiari Province, 31 km West of Borujen
Nearest Cities
8 km North of Baladaji, Chaharmahal Bakhtiari Province
19 km North West of Gandoman, Chaharmahal Bakhtiari Province
20 km South East of Shalamzar, Chaharmahal Bakhtiari Province
22 km East of Naghan, Chaharmahal Bakhtiari Province
22 km West of Faradonbeh, Chaharmahal Bakhtiari Province
Depth 46 km
Agency
Faults within 150 km:
DENA_F (Length: 137 km) , Distance to epicenter: 6 km
ARDAL_F (Length: 170 km) , Distance to epicenter: 9 km
MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 13 km
Number of Phases 8
RMS 0.2
Number of Stations 5
Error in Latitude >3.2 km
Error in Longitude 3.7 km
Error in Depth 5.8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
87644IIEESSHGRN 264.40.642013-01-18 01:13:562013-01-18 01:43:00n
87645IIEESSHGRE 179.60.562013-01-18 01:13:572013-01-18 01:43:00n
87646IIEESKHMZE 156.70.722013-01-18 01:13:532013-01-18 01:43:00n
87647IIEESKHMZN 120.40.642013-01-18 01:13:542013-01-18 01:43:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESSHGRZ Pn E2013-01-18 01:13:17-0.42y205276
IIEESSHGRN Sg E2013-01-18 01:13:450.29y205276
IIEESKHMZZ Pn E2013-01-18 01:13:19-0.02y221335
IIEESKHMZE Sg E2013-01-18 01:13:49-0.14y221335
IIEESGHVRZ Pn E2013-01-18 01:13:270.24y2845
IIEESASAOZ Pn E2013-01-18 01:13:29-0.02y303343
IIEESASAOE Sg E2013-01-18 01:14:110.02y303343
IIEESYZKHZ Pn E2013-01-18 01:13:350.06y34681
