Magnitude |
:3.2 |
| Date & Time (UTC) | 2012-11-22 17:47:37.1 |
| Date & Time (Local) | 1391/9/2 21:17:37.1 |
| Location | Lat:34.74 Lon: 53.08 |
| Region | Semnan Province, 97 km South-West of Semnan |
Nearest Cities |
|
| 72 km South East of Kohanabad, Semnan Province | |
| 74 km South of Lasjerd, Semnan Province | |
| 76 km South East of Aradan, Semnan Province | |
| 77 km South East of Davarabad, Semnan Province | |
| 77 km South East of Gardovan, Semnan Province | |
| Depth | 14 km |
| Agency | |

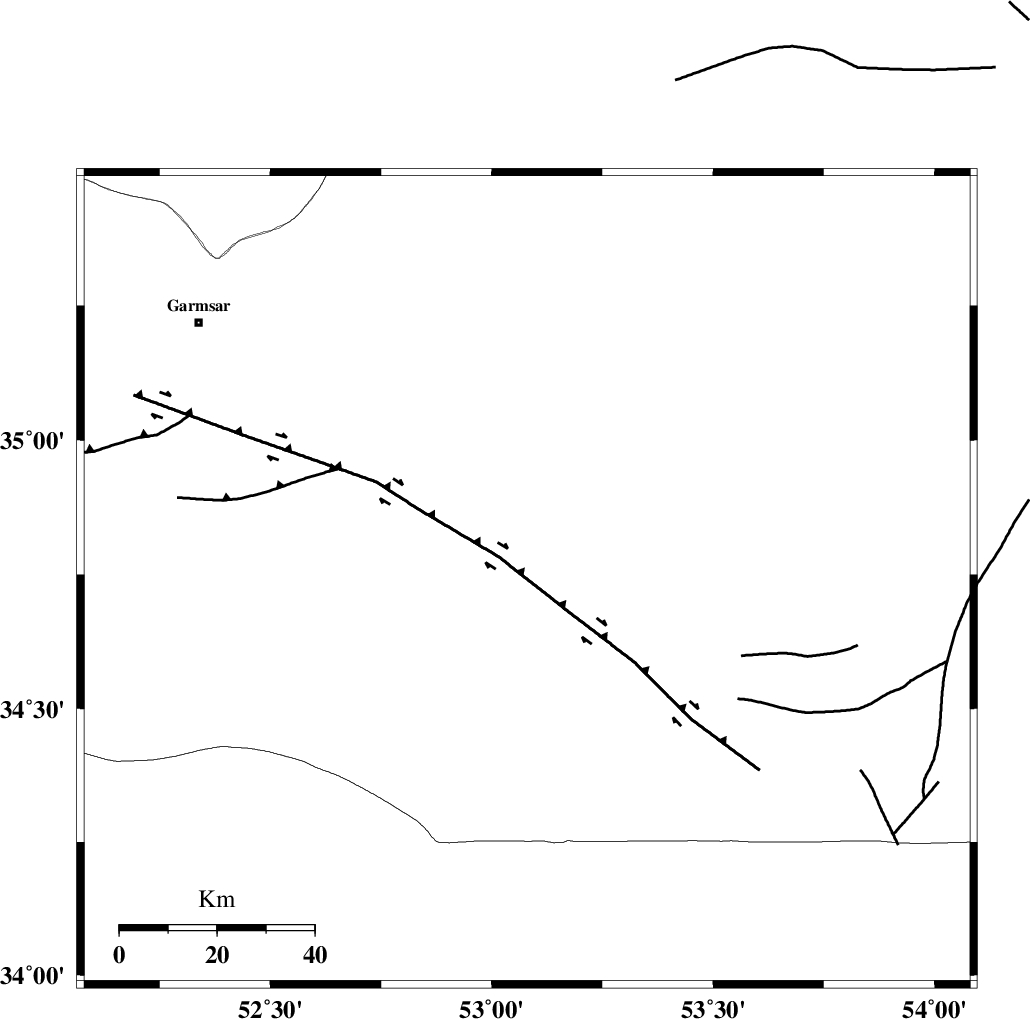

Faults within 150 km: |
|
| KUH_E_GUGERD_F (Length: 73 km) , Distance to epicenter: 18 km | |
| KUH_E_GACHAB_F1 (Length: 53 km) , Distance to epicenter: 34 km | |
| SIAHKUH_F (Length: 154 km) , Distance to epicenter: 53 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87111 | IIEES | GHVR | E | 294.8 | 0.48 | 2012-11-22 17:48:28 | 2012-11-22 05:13:00 | n |
| 87112 | IIEES | GHVR | N | 184.4 | 0.72 | 2012-11-22 17:48:30 | 2012-11-22 05:13:00 | n |
| 87113 | IIEES | THKV | N | 214.8 | 0.68 | 2012-11-22 17:48:51 | 2012-11-22 05:13:00 | n |
| 87114 | IIEES | THKV | E | 180.1 | 0.52 | 2012-11-22 17:48:52 | 2012-11-22 05:13:00 | n |
| 87115 | IIEES | ASAO | E | 72.2 | 0.44 | 2012-11-22 17:49:02 | 2012-11-22 05:13:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHTH | Z | Pn | E | 2012-11-22 17:48:12 | -0.25 | y | 220 | 307 | |||
| IIEES | THKV | Z | Pn | E | 2012-11-22 17:48:14 | 0.18 | y | 239 | 304 | |||
| IIEES | ASAO | Z | Pn | E | 2012-11-22 17:48:19 | -0.01 | y | 281 | 267 | |||
| IIEES | ASAO | E | Sg | E | 2012-11-22 17:48:56 | -0.07 | y | 281 | 267 | |||
| IIEES | YZKH | Z | Pn | E | 2012-11-22 17:48:21 | -0.11 | y | 296 | 151 | |||
| IIEES | SHRO | Z | Pn | E | 2012-11-22 17:48:22 | 0.06 | y | 302 | 61 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-11-22 17:48:23 | 0.14 | y | 307 | 250 | |||
| IIEES | KHMZ | N | Sg | E | 2012-11-22 17:49:03 | 0.06 | y | 307 | 250 | |||
