Magnitude |
:3.6 |
| Date & Time (UTC) | 2011-02-07 21:35:39.3 |
| Date & Time (Local) | 1389/11/19 01:05:39.3 |

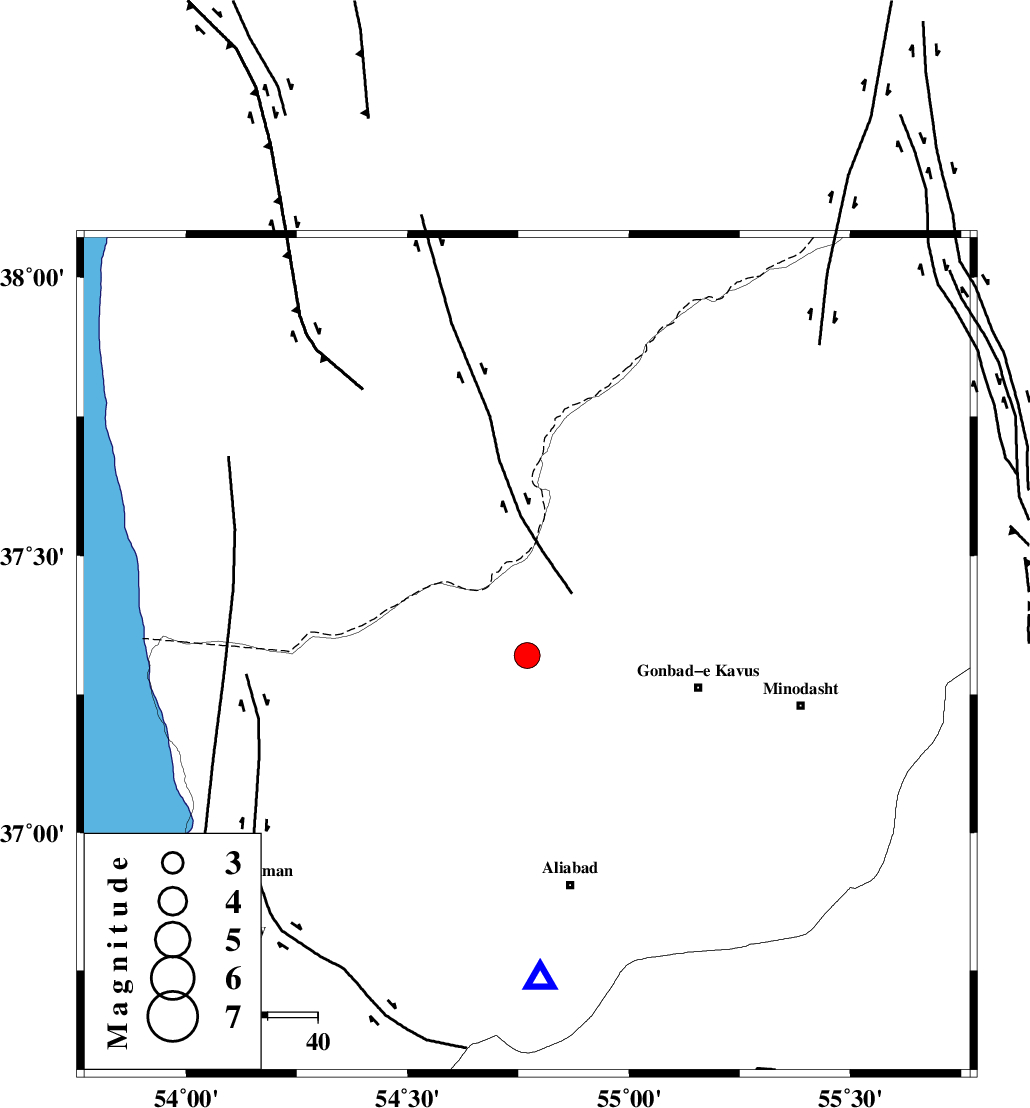

| Location | Lat:37.32 Lon: 54.77 |
| Region | Golestan Province, 34 km West of Gonbad-e kavus |
Nearest Cities |
|
| 15 km South of Enchehborun, Golestan Province | |
| 26 km North of Gariduji, Golestan Province | |
| 31 km North West of Baghli marma, Golestan Province | |
| 31 km North West of Soltanali, Golestan Province | |
| 34 km South of Dashliborun, Golestan Province | |
| Depth | 41 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 39 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 71 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 76 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >4.6 km |
| Error in Longitude | 6.2 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 77840 | IIEES | MRVT | N | 1486.2 | 0.36 | 2011-02-07 21:36:19 | 2011-02-07 09:51:00 | n |
| 77841 | IIEES | MRVT | E | 1427.4 | 0.24 | 2011-02-07 21:36:20 | 2011-02-07 09:51:00 | n |
| 77842 | IIEES | DAMV | E | 222.1 | 0.48 | 2011-02-07 21:37:11 | 2011-02-07 09:51:00 | n |
| 77843 | IIEES | DAMV | N | 180.2 | 0.52 | 2011-02-07 21:37:17 | 2011-02-07 09:51:00 | n |
| 77844 | IIEES | THKV | N | 110.6 | 0.44 | 2011-02-07 21:37:30 | 2011-02-07 09:51:00 | n |
| 77845 | IIEES | THKV | E | 146.4 | 0.6 | 2011-02-07 21:37:34 | 2011-02-07 09:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pn | E | 2011-02-07 21:35:59 | -0.2 | y | 122 | 72 | |||
| IIEES | MRVT | N | Sg | E | 2011-02-07 21:36:15 | 0.2 | y | 122 | 72 | |||
| IIEES | SHRO | Z | Pn | E | 2011-02-07 21:36:07 | 0.2 | y | 183 | 142 | |||
| IIEES | SHRO | N | Sg | E | 2011-02-07 21:36:30 | -0.2 | y | 183 | 142 | |||
| IIEES | BJRD | E | Pn | E | 2011-02-07 21:36:13 | -0.1 | y | 237 | 79 | |||
| IIEES | DAMV | Z | Pn | E | 2011-02-07 21:36:24 | 0.6 | y | 313 | 234 | |||
| IIEES | THKV | Z | Pn | E | 2011-02-07 21:36:31 | -0.6 | y | 382 | 247 | |||
| IIEES | TABS | Z | Pn | E | 2011-02-07 21:36:41 | 0.1 | y | 459 | 152 | |||
