Magnitude |
:3.5 |
| Date & Time (UTC) | 2010-05-02 15:34:40.5 |
| Date & Time (Local) | 1389/2/12 20:04:40.5 |

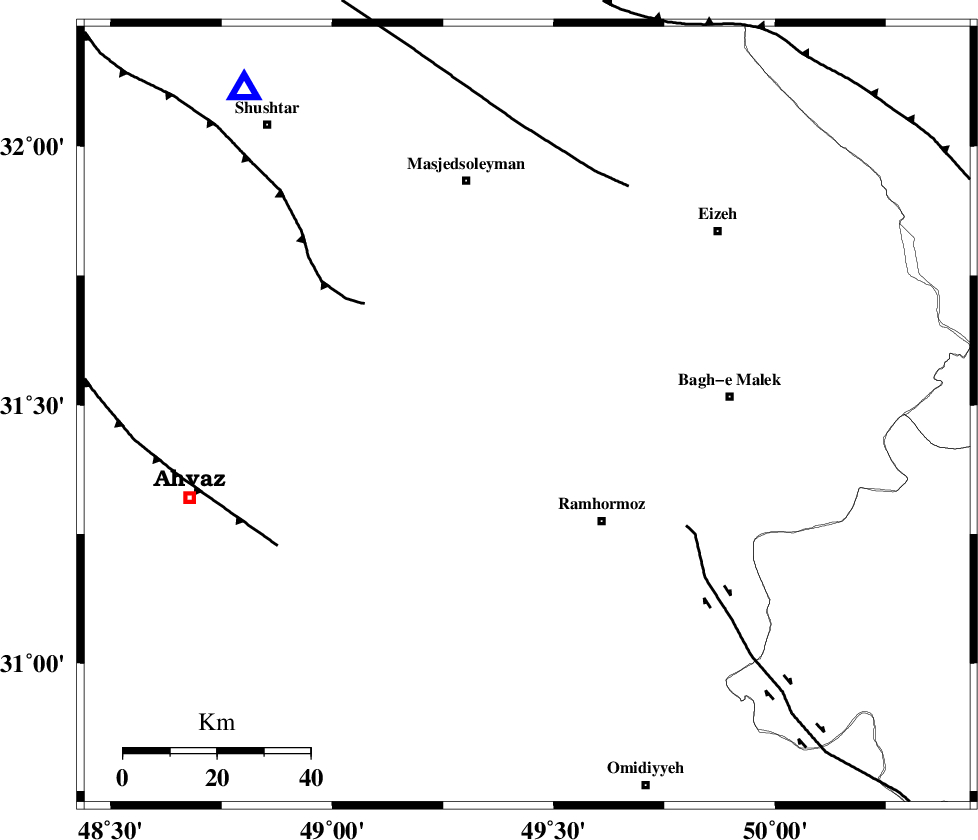

| Location | Lat:31.48 Lon: 49.44 |
| Region | Khoozestan Province, 28 km North-West of Ramhormoz |
Nearest Cities |
|
| 9 km North of Haftgol, Khoozestan Province | |
| 10 km of Gazin, Khoozestan Province | |
| 13 km West of Jaru, Khoozestan Province | |
| 24 km North of Marbacheh, Khoozestan Province | |
| 26 km North West of Midavood-e sofla, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 20 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 37 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 50 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >5.8 km |
| Error in Longitude | 7.3 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 61570 | IIEES | KHMZ | E | 362.7 | 0.72 | 2010-05-02 15:35:50 | 2010-05-02 04:11:00 | n |
| 61571 | IIEES | KHMZ | N | 248.8 | 0.6 | 2010-05-02 15:35:50 | 2010-05-02 04:11:00 | n |
| 61572 | IIEES | ASAO | E | 147.5 | 0.68 | 2010-05-02 15:36:24 | 2010-05-02 04:11:00 | n |
| 61573 | IIEES | ASAO | N | 114.6 | 0.6 | 2010-05-02 15:36:25 | 2010-05-02 04:11:00 | n |
| 61574 | IIEES | GHVR | N | 89.3 | 0.56 | 2010-05-02 15:36:29 | 2010-05-02 04:11:00 | n |
| 61575 | IIEES | GHVR | E | 120.2 | 0.72 | 2010-05-02 15:36:31 | 2010-05-02 04:11:00 | n |
| 61576 | IIEES | SNGE | N | 49 | 0.52 | 2010-05-02 15:36:51 | 2010-05-02 04:11:00 | n |
| 61577 | IIEES | SNGE | E | 45.6 | 0.64 | 2010-05-02 15:36:56 | 2010-05-02 04:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ASAO | Z | Pn | E | 2010-05-02 15:35:31 | 0 | y | 345 | 9 | |||
| IIEES | ASAO | E | Sg | E | 2010-05-02 15:36:17 | 0 | y | 345 | 9 | |||
| IIEES | NASN | Z | Pn | E | 2010-05-02 15:35:31 | -0.2 | y | 350 | 64 | |||
| IIEES | GHVR | Z | P | E | 2010-05-02 15:35:34 | 0.3 | y | 374 | 26 | |||
| IIEES | SNGE | Z | Pn | E | 2010-05-02 15:35:43 | 0 | y | 446 | 335 | |||
| IIEES | SNGE | N | S | E | 2010-05-02 15:36:29 | -0.1 | y | 446 | 335 | |||
