Magnitude |
:4.1 |
| Date & Time (UTC) | 2009-08-07 18:59:33.9 |
| Date & Time (Local) | 1388/5/16 23:29:33.9 |

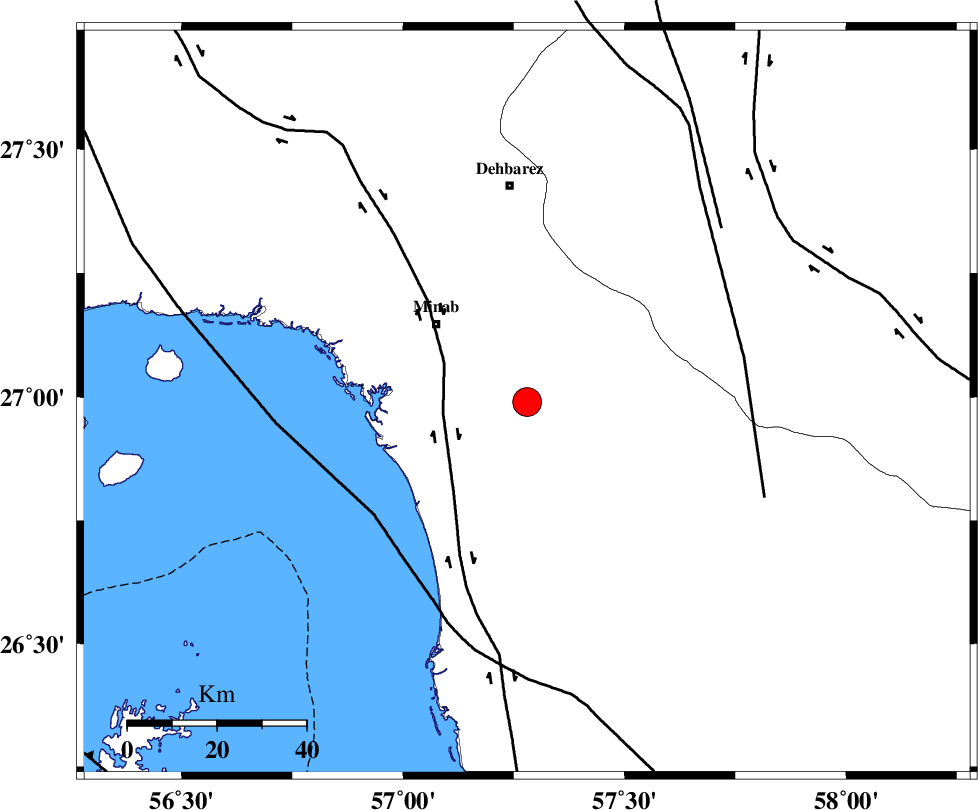

| Location | Lat:26.99 Lon: 57.28 |
| Region | Hormozgan Province, 27 km South-East of Minab |
Nearest Cities |
|
| 7 km North of Koryan, Hormozgan Province | |
| 23 km North West of Sanadrak, Hormozgan Province | |
| 27 km South East of Minab, Hormozgan Province | |
| 48 km North West of Darpahn, Hormozgan Province | |
| 49 km South of Dehbarez, Hormozgan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 3 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 3 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 19 km | |
| Number of Phases | 5 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >6.3 km |
| Error in Longitude | 10.4 km |
| Error in Depth | 14.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 58129 | IIEES | BNDS | N | 5058.2 | 0 | 2009-08-07 19:00:21 | 2009-10-27 01:19:00 | n |
| 58130 | IIEES | KRBR | N | 664 | 0.1 | 2009-08-07 19:01:27 | 2009-10-27 01:19:00 | n |
| 58131 | IIEES | KRBR | E | 587.3 | 0.49 | 2009-08-07 19:01:28 | 2009-10-27 01:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2009-08-07 18:59:54 | 0.1 | y | 119 | 293 | |||
| IIEES | KRBR | Z | Pn | E | 2009-08-07 19:00:22 | -0.4 | y | 335 | 351 | |||
| IIEES | KRBR | N | Sg | E | 2009-08-07 19:01:08 | 0.1 | y | 335 | 351 | |||
| IIEES | ZHSF | Z | Pn | E | 2009-08-07 19:00:37 | 0.3 | y | 449 | 49 | |||
| IIEES | TABS | Z | Pn | E | 2009-08-07 19:01:12 | -0.2 | y | 738 | 359 | |||
