Magnitude
 :3.4
Date & Time (UTC) 2009-06-18 11:45:47.6
Date & Time (Local) 1388/3/28  16:15:47.6

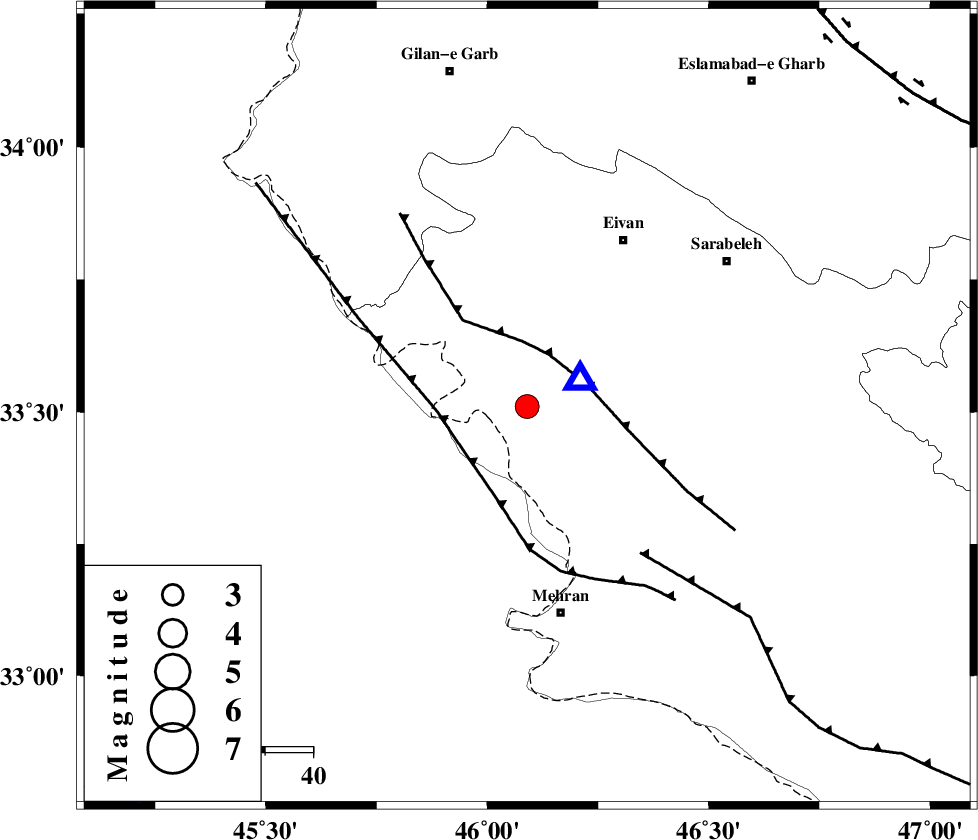

Location Lat:33.51 Lon: 46.09
Region 34 km South-West of Ilam, Ilam Province
Nearest Cities
10 km North of Salehabad, Ilam Province
26 km South West of Chavar, Ilam Province
35 km South West of Ilam, Ilam Province
36 km North West of Mehr, Ilam Province
37 km North West of Galeh-yedarre-hemalakshahi, Ilam Province
Depth 18 km
Agency
Faults within 150 km:
MFF7 (Length: 99 km) , Distance to epicenter: 12 km
ZFF4 (Length: 128 km) , Distance to epicenter: 19 km
MFF6 (Length: 144 km) , Distance to epicenter: 39 km
Number of Phases 6
RMS 0.1
Number of Stations 4
Error in Latitude >7.7 km
Error in Longitude 20.4 km
Error in Depth 13.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
52993IIEESSNGEN 237.20.42009-06-18 11:46:542009-07-13 01:52:00n
52994IIEESSNGEE 253.60.522009-06-18 11:47:022009-07-13 01:52:00n
52995IIEESSHGRN 142.30.282009-06-18 11:47:172009-07-13 01:52:00n
52996IIEESSHGRE 214.40.642009-06-18 11:47:242009-07-13 01:52:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESSNGEZ Pg E2009-06-18 11:46:220y21033
IIEESSNGEN Sg E2009-06-18 11:46:470y21033
IIEESSHGRZ Pn E2009-06-18 11:46:320.2y298121
IIEESKHMZZ Pn E2009-06-18 11:46:39-0.1y36085
IIEESASAOZ Pn E2009-06-18 11:46:42-0.2y38171
IIEESASAOE Sn 2009-06-18 11:47:220y38171
