Magnitude |
:2.9 |
| Date & Time (UTC) | 2009-04-20 03:47:42.8 |
| Date & Time (Local) | 1388/1/31 08:17:42.8 |

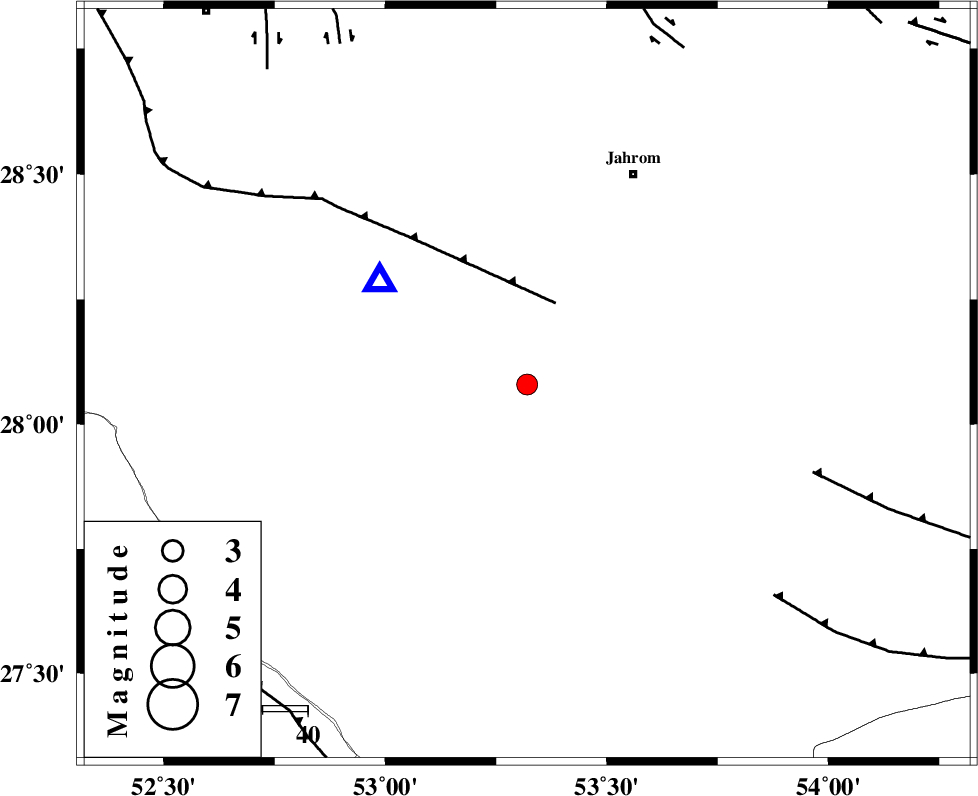

| Location | Lat:28.08 Lon: 53.32 |
| Region | 51 km South-East of Qir va Karzin, Fars Province |
Nearest Cities |
|
| 19 km East of Seyfabad, Fars Province | |
| 25 km North West of Khonj, Fars Province | |
| 28 km West of Balafan, Fars Province | |
| 32 km South of Mobarakabad, Fars Province | |
| 38 km South West of Hasanabad, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 19 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 66 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 72 km | |
| Number of Phases | 4 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >11.3 km |
| Error in Longitude | 6 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 52483 | IIEES | GHIR | N | 1003.8 | 0.39 | 2009-04-20 03:48:06 | 2009-07-13 01:52:00 | n |
| 52484 | IIEES | GHIR | E | 1615.3 | 0.38 | 2009-04-20 03:48:08 | 2009-07-13 01:52:00 | n |
| 52485 | IIEES | BNDS | N | 53.7 | 0.52 | 2009-04-20 03:49:23 | 2009-07-13 01:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2009-04-20 03:47:50 | -0.1 | y | 39.9 | 305 | |||
| IIEES | BNDS | Z | Pn | E | 2009-04-20 03:48:27 | 0.3 | y | 291 | 104 | |||
| IIEES | BNDS | N | Sg | E | 2009-04-20 03:49:04 | -0.2 | y | 291 | 104 | |||
| IIEES | KRBR | Z | Pn | E | 2009-04-20 03:48:40 | 0.1 | y | 396 | 57 | |||
