Magnitude
 :2.8
Date & Time (UTC) 2009-02-10 15:30:25.2
Date & Time (Local) 1387/11/22  19:00:25.2

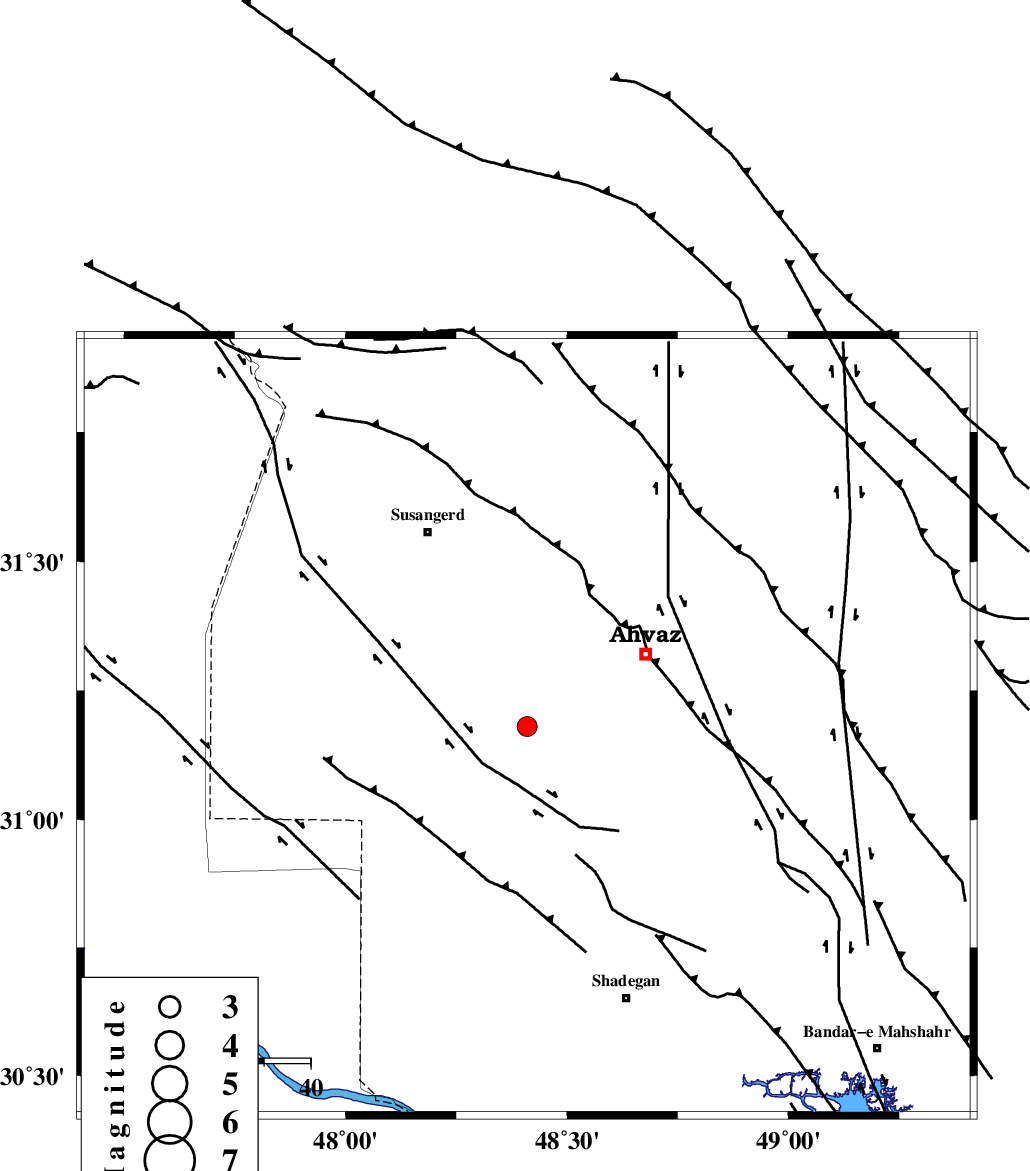

Location Lat:31.18 Lon: 48.41
Region 30 km South-West of Ahvaz, Khoozestan Province
Nearest Cities
13 km North West of Bahr, Khoozestan Province
20 km North West of Abunangeh, Khoozestan Province
30 km South West of Ahvaz, Khoozestan Province
32 km South of Dehkade, Khoozestan Province
34 km South of Hamidiyeh, Khoozestan Province
Depth 14 km
Agency
Faults within 150 km:
AHVAZ_F (Length: 99 km) , Distance to epicenter: 33 km
AGHAJARI_F (Length: 88 km) , Distance to epicenter: 78 km
DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 113 km
Number of Phases 5
RMS 0
Number of Stations 4
Error in Latitude >4.7 km
Error in Longitude 6.7 km
Error in Depth 5.2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
51911IIEESSHGRE 251.30.842009-02-10 15:31:062009-06-27 08:52:00n
51912IIEESSHGRN 284.40.722009-02-10 15:31:062009-06-27 08:52:00n
51913IIEESASAON 16.50.842009-02-10 15:32:242009-06-27 08:52:00n
51914IIEESSNGEE 11.10.642009-02-10 15:32:182009-06-27 08:52:00n
51915IIEESSNGEN 14.60.722009-02-10 15:32:202009-06-27 08:52:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESSHGRZ Pg E2009-02-10 15:30:430y11020
IIEESSHGRE Sg E2009-02-10 15:30:570y11020
IIEESKHMZZ Pn E2009-02-10 15:31:120.1y32027
IIEESASAOZ Pn E2009-02-10 15:31:230y40322
IIEESSNGEZ Pn E2009-02-10 15:31:280y445347
