Magnitude
 :3.2
Date & Time (UTC) 2009-02-07 10:31:09.3
Date & Time (Local) 1387/11/19  14:01:09.3

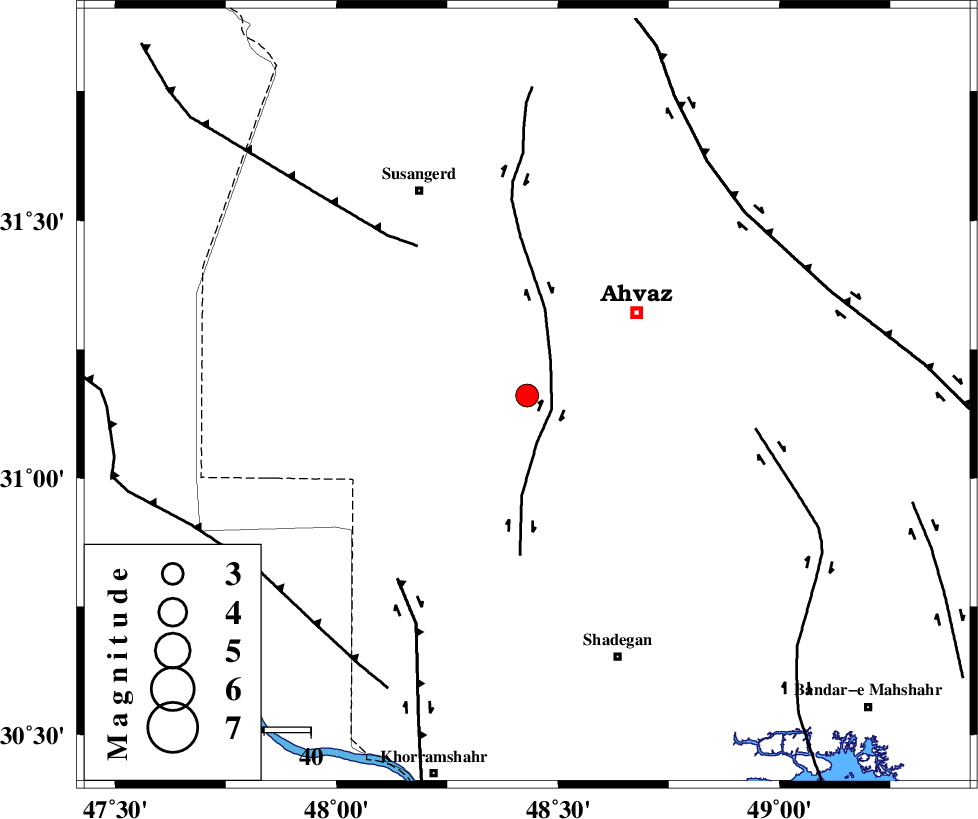

Location Lat:31.16 Lon: 48.43
Region 29 km South-West of Ahvaz, Khoozestan Province
Nearest Cities
11 km West of Bahr, Khoozestan Province
17 km North West of Abunangeh, Khoozestan Province
30 km South West of Ahvaz, Khoozestan Province
34 km South of Dehkade, Khoozestan Province
36 km South of Hamidiyeh, Khoozestan Province
Depth 30 km
Agency
Faults within 150 km:
AHVAZ_F (Length: 99 km) , Distance to epicenter: 33 km
AGHAJARI_F (Length: 88 km) , Distance to epicenter: 77 km
DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 113 km
Number of Phases 6
RMS 0.2
Number of Stations 5
Error in Latitude >11.4 km
Error in Longitude 14.4 km
Error in Depth 9.7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
51858IIEESSHGRN 788.40.862009-02-07 10:32:002009-06-27 08:52:00n
51859IIEESSHGRE 911.60.572009-02-07 10:32:102009-06-27 08:52:00n
51860IIEESASAON 27.10.672009-02-07 10:33:162009-06-27 08:52:00n
51861IIEESSNGEE 39.21.162009-02-07 10:33:012009-06-27 08:52:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESSHGRZ Pg E2009-02-07 10:31:270y11119
IIEESSHGRN Sg E2009-02-07 10:31:410y11119
IIEESKHMZZ Pn E2009-02-07 10:31:550.3y32026
IIEESASAOZ Pn E2009-02-07 10:32:05-0.2y40421
IIEESSNGEZ Pn E2009-02-07 10:32:110.3y447347
IIEESZNJKZ Pn E2009-02-07 10:32:31-0.5y6122
