Magnitude |
:3 |
| Date & Time (UTC) | 2020-07-28 04:45:47.8 |
| Date & Time (Local) | 1399/5/7 09:15:47.8 |

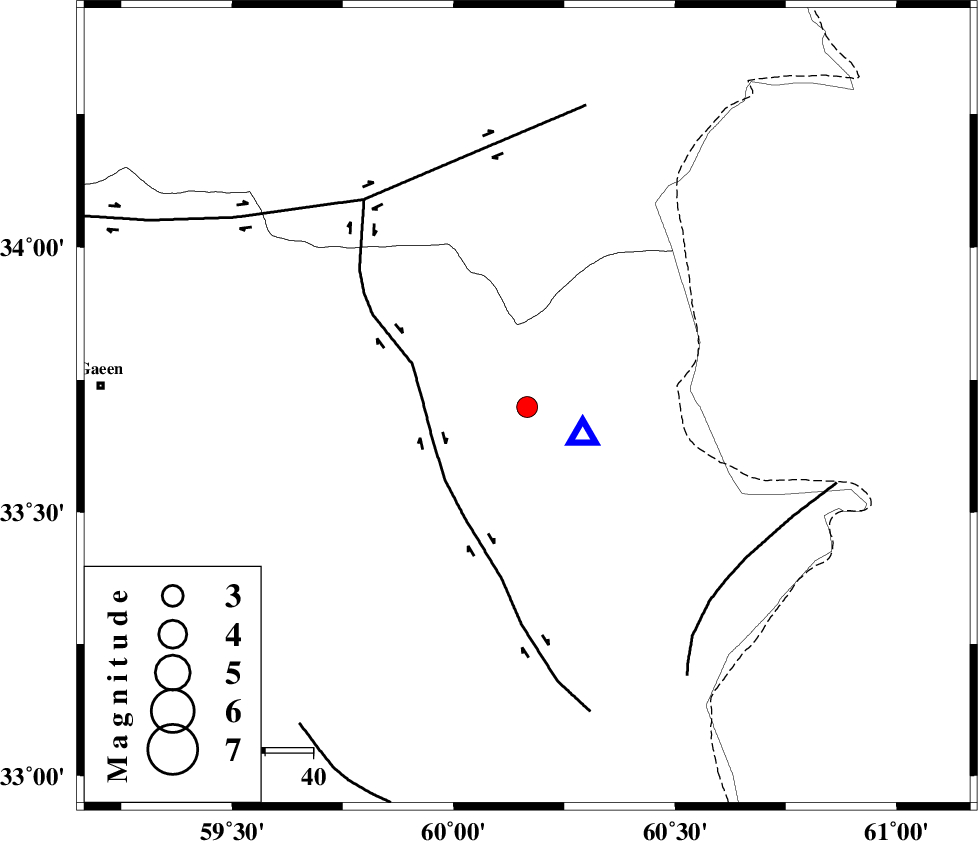

| Location | Lat:33.699 Lon: 60.166 |
| Region | , 97 km South of Khaf |
Nearest Cities |
|
| 6 km North of Shahdokht, Khorasan(south) Province | |
| 20 km North East of Abiz, Khorasan(south) Province | |
| 26 km North East of Hajiabad, Khorasan(south) Province | |
| 42 km South West of Sirkhun, Khorasan(center) Province | |
| 47 km North East of Zahan, Khorasan(south) Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ABRIZ_F (Length: 114 km) , Distance to epicenter: 21 km | |
| DASHT_E_BAYAZ_F (Length: 177 km) , Distance to epicenter: 55 km | |
| PATARGAN_F (Length: 52 km) , Distance to epicenter: 55 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | >2 km |
| Error in Longitude | 2 km |
| Error in Depth | 2.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 195044 | IIEES SC | SHRT | Z | 20 | 1 | 2020-07-28 04:45:51 | 2024-09-17 11:41:00 | n |
| 195045 | IIEES SC | ZHSF | Z | 0.01 | 1 | 2020-07-28 04:46:52 | 2024-09-17 11:41:00 | n |
| 195046 | IIEES SC | BJRD | Z | 0.01 | 1 | 2020-07-28 04:46:58 | 2024-09-17 11:41:00 | n |
| 195047 | IIEES SC | KRBR | Z | 0.02 | 1 | 2020-07-28 04:47:00 | 2024-09-17 11:41:00 | n |
| 195048 | IIEES SC | MRVT | Z | 0.03 | 1 | 2020-07-28 04:47:07 | 2024-09-17 11:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SHRT | Z | EPg | E | 2020-07-28 04:45:51 | 0.3 | y | 0 | 13 | 117 | ||
| IIEES SC | BSRN | Z | EPn | E | 2020-07-28 04:46:22 | -0.1 | y | 0 | 216 | 207 | ||
| IIEES SC | BSRN | Z | ES | E | 2020-07-28 04:46:48 | 0.1 | y | 0 | 216 | 207 | ||
| IIEES SC | TABS | Z | EPn | E | 2020-07-28 04:46:31 | 0.3 | y | 0 | 283 | 269 | ||
| IIEES SC | KAGH | Z | EPn | E | 2020-07-28 04:46:40 | -0.4 | y | 0 | 360 | 357 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2020-07-28 04:46:52 | -0.2 | y | 0 | 457 | 173 | ||
| IIEES SC | SHRO | Z | EPn | E | 2020-07-28 04:46:52 | -0.2 | y | 0 | 458 | 304 | ||
| IIEES SC | BJRD | Z | EPn | E | 2020-07-28 04:46:58 | -0.3 | y | 0 | 509 | 331 | ||
| IIEES SC | KRBR | Z | EPn | E | 2020-07-28 04:47:00 | -0.1 | y | 0 | 523 | 218 | ||
| IIEES SC | MRVT | Z | EPn | E | 2020-07-28 04:47:07 | 0.8 | y | 0 | 574 | 320 | ||
