Magnitude |
:3.8 |
| Date & Time (UTC) | 2023-08-15 05:57:41.6 |
| Date & Time (Local) | 1402/5/24 09:27:41.6 |
| Location | Lat:33.097 Lon: 57.514 |
| Region | Yazd Province, 78 km South-East of Tabas |
Nearest Cities |
|
| 16 km North West of Arababad, Yazd Province | |
| 22 km South of Dihuk, Yazd Province | |
| 67 km South East of Kerit, Yazd Province | |
| 68 km South East of Arsak, Khorasan(center) Province | |
| 76 km South East of Oshtoqran, Yazd Province | |
| Depth | 12 km |
| Agency | |

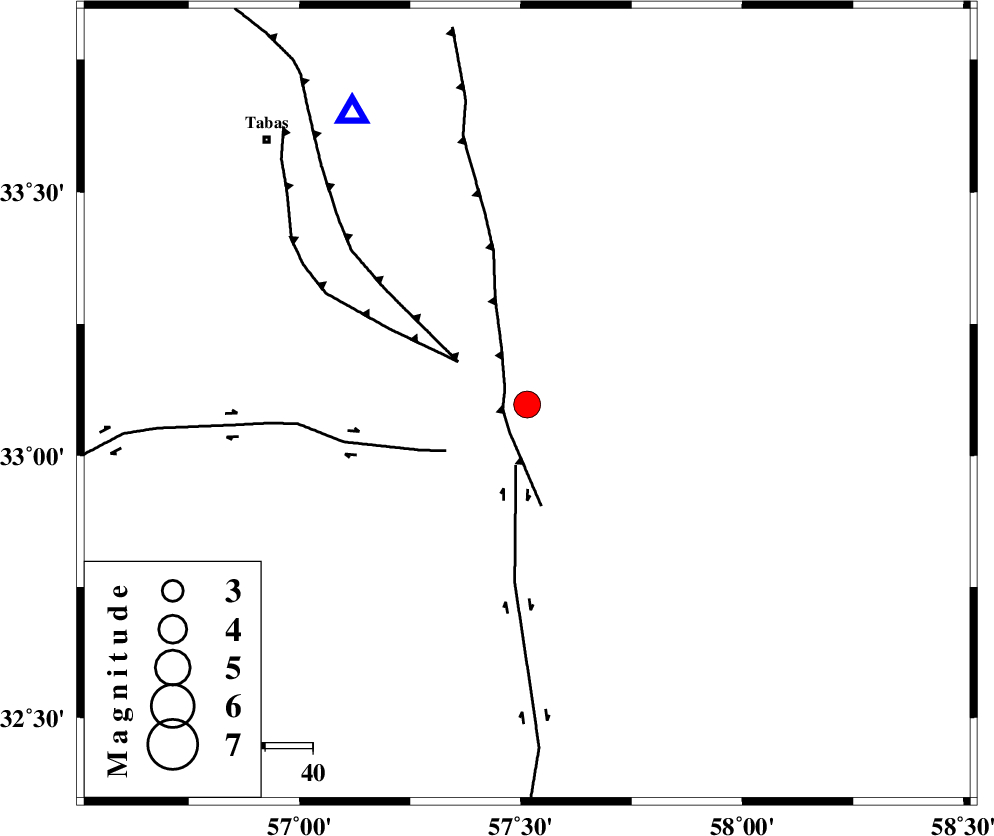

Faults within 150 km: |
|
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 5 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 13 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 17 km | |
| Number of Phases | 25 |
| RMS | 0.3 |
| Number of Stations | 25 |
| Error in Latitude | >1 km |
| Error in Longitude | 1 km |
| Error in Depth | 5.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 185017 | IIEES SC | TABS | Z | 3 | 1 | 2023-08-15 05:57:54 | 2023-08-19 04:31:00 | n |
| 185018 | IIEES SC | KKHK | Z | 5 | 1 | 2023-08-15 05:58:07 | 2023-08-19 04:31:00 | n |
| 185019 | IIEES SC | BSRN | Z | 2 | 1 | 2023-08-15 05:58:13 | 2023-08-19 04:31:00 | n |
| 185020 | IIEES SC | SHRT | Z | 0.3 | 1 | 2023-08-15 05:58:22 | 2023-08-19 04:31:00 | n |
| 185021 | IIEES SC | YZKH | Z | 1 | 1 | 2023-08-15 05:58:24 | 2023-08-19 04:31:00 | n |
| 185022 | IIEES SC | TAFT | Z | 0.4 | 1 | 2023-08-15 05:58:32 | 2023-08-19 04:31:00 | n |
| 185023 | IIEES SC | TBJM | Z | 0.5 | 1 | 2023-08-15 05:58:33 | 2023-08-19 04:31:00 | n |
| 185024 | IIEES SC | NASN | Z | 0.2 | 1 | 2023-08-15 05:58:43 | 2023-08-19 04:31:00 | n |
| 185025 | IIEES SC | MRVT | Z | 0.03 | 1 | 2023-08-15 05:58:55 | 2023-08-19 04:31:00 | n |
| 185026 | IIEES SC | GHVR | Z | 0.2 | 1 | 2023-08-15 05:59:04 | 2023-08-19 04:31:00 | n |
| 185027 | IIEES SC | KLNJ | Z | 0.07 | 1 | 2023-08-15 05:59:04 | 2023-08-19 04:31:00 | n |
| 185028 | IIEES SC | CHTH | Z | 0.03 | 1 | 2023-08-15 05:59:12 | 2023-08-19 04:31:00 | n |
| 185029 | IIEES SC | ASAO | Z | 0.03 | 1 | 2023-08-15 05:59:17 | 2023-08-19 04:31:00 | n |
| 185030 | IIEES SC | GTMR | Z | 0.03 | 1 | 2023-08-15 05:59:28 | 2023-08-19 04:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | TABS | Z | EPg | E | 2023-08-15 05:57:54 | -0.1 | y | 0 | 71 | 329 | ||
| IIEES SC | KKHK | Z | EPg | E | 2023-08-15 05:58:07 | -0.1 | y | 0 | 155 | 42 | ||
| IIEES SC | BSRN | Z | EPg | E | 2023-08-15 05:58:13 | 0.1 | y | 0 | 197 | 130 | ||
| IIEES SC | SHRT | Z | EPn | E | 2023-08-15 05:58:22 | 0.3 | y | 0 | 266 | 77 | ||
| IIEES SC | YZKH | Z | EPn | E | 2023-08-15 05:58:24 | -0.2 | y | 0 | 285 | 254 | ||
| IIEES SC | MEH | Z | EPn | E | 2023-08-15 05:58:31 | 0.2 | y | 0 | 333 | 235 | ||
| IIEES SC | TAFT | Z | EPn | E | 2023-08-15 05:58:32 | -0.2 | y | 0 | 350 | 244 | ||
| IIEES SC | SHRO | Z | EPn | E | 2023-08-15 05:58:26 | -6.7 | n | 4 | 351 | 337 | ||
| IIEES SC | KRBR | Z | EPn | E | 2023-08-15 05:58:25 | -7.7 | n | 4 | 353 | 192 | ||
| IIEES SC | TBJM | Z | EPn | E | 2023-08-15 05:58:33 | -0.6 | y | 0 | 354 | 47 | ||
| IIEES SC | SBZV | Z | EPn | E | 2023-08-15 05:58:36 | 0.9 | y | 0 | 365 | 1 | ||
| IIEES SC | JRKH | Z | EPn | E | 2023-08-15 05:58:39 | -0.5 | y | 0 | 406 | 40 | ||
| IIEES SC | ANJ | Z | EPn | E | 2023-08-15 05:58:42 | 0.2 | y | 0 | 423 | 308 | ||
| IIEES SC | NASN | Z | EPn | E | 2023-08-15 05:58:43 | -0.9 | y | 0 | 441 | 266 | ||
| IIEES SC | KAGH | Z | EPn | E | 2023-08-15 05:58:49 | 0.1 | y | 0 | 481 | 28 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2023-08-15 05:58:45 | -5.7 | n | 4 | 495 | 141 | ||
| IIEES SC | GLO | Z | EPn | E | 2023-08-15 05:58:52 | 0.3 | y | 0 | 506 | 318 | ||
| IIEES SC | BJRD | Z | EPn | E | 2023-08-15 05:58:53 | 0.5 | y | 0 | 511 | 359 | ||
| IIEES SC | MRVT | Z | EPn | E | 2023-08-15 05:58:55 | 0.8 | y | 0 | 522 | 346 | ||
| IIEES SC | GHVR | Z | EPn | E | 2023-08-15 05:59:04 | -0.1 | y | 0 | 600 | 285 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2023-08-15 05:59:04 | -0.5 | y | 0 | 605 | 248 | ||
| IIEES SC | CHTH | Z | EPn | E | 2023-08-15 05:59:12 | 0.3 | y | 0 | 664 | 298 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-08-15 05:59:17 | -0.4 | y | 0 | 712 | 283 | ||
| IIEES SC | QABG | Z | EPn | E | 2023-08-15 05:59:27 | 0 | y | 0 | 785 | 292 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-08-15 05:59:28 | 0.7 | y | 0 | 790 | 265 | ||
