Magnitude |
:3.9 |
| Date & Time (UTC) | 2023-06-16 09:54:54.2 |
| Date & Time (Local) | 1402/3/26 13:24:54.2 |

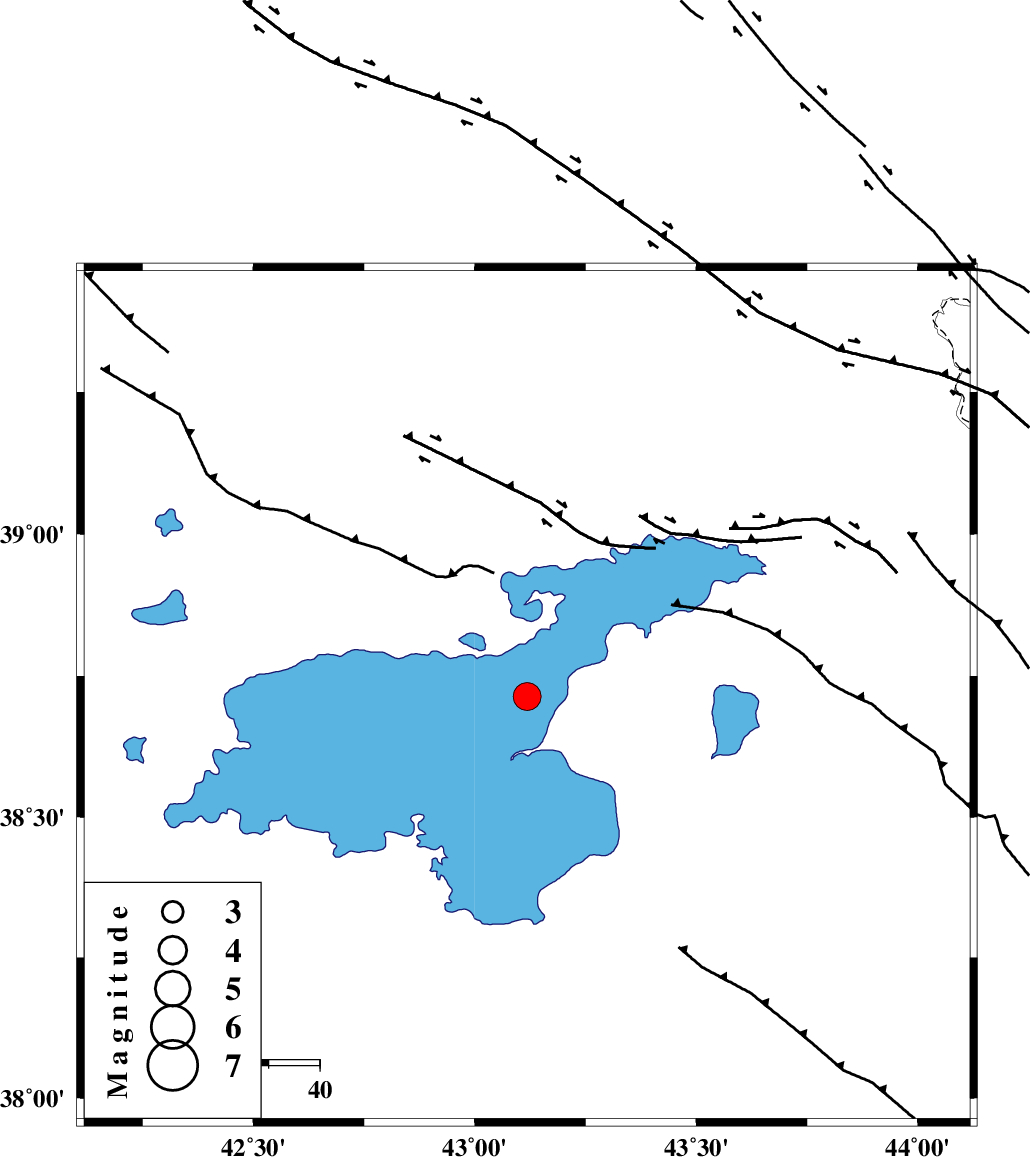

| Location | Lat:38.713 Lon: 43.118 |
| Region | Turkey |
Nearest Cities |
|
| 105 km South West of Sheykh selu-e paein, Azarbaijan Gharbi Province | |
| 106 km South West of Sheykh selu-e bala, Azarbaijan Gharbi Province | |
| 116 km North West of Gatur, Azarbaijan Gharbi Province | |
| 117 km South West of Arab dizaj, Azarbaijan Gharbi Province | |
| 118 km South West of Zavieh, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 98 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 135 km | |
| Number of Phases | 29 |
| RMS | 0.2 |
| Number of Stations | 29 |
| Error in Latitude | >0.4 km |
| Error in Longitude | 0.4 km |
| Error in Depth | 2.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 183089 | IIEES SC | GNI | Z | 2 | 1 | 2023-06-16 09:55:28 | 2023-06-17 07:10:00 | n |
| 183090 | IIEES SC | MRD | Z | 3 | 1 | 2023-06-16 09:55:29 | 2023-06-17 07:10:00 | n |
| 183091 | IIEES SC | SRSL | Z | 0.7 | 1 | 2023-06-16 09:55:44 | 2023-06-17 07:10:00 | n |
| 183092 | IIEES SC | DHR | Z | 0.2 | 1 | 2023-06-16 09:56:08 | 2023-06-17 07:10:00 | n |
| 183093 | IIEES SC | SNGE | Z | 0.03 | 1 | 2023-06-16 09:56:10 | 2023-06-17 07:10:00 | n |
| 183094 | IIEES SC | KCHF | Z | 0.2 | 1 | 2023-06-16 09:56:16 | 2023-06-17 07:10:00 | n |
| 183095 | IIEES SC | GIDE | Z | 0.02 | 1 | 2023-06-16 09:56:20 | 2023-06-17 07:10:00 | n |
| 183096 | IIEES SC | HGHA | Z | 0.06 | 1 | 2023-06-16 09:56:19 | 2023-06-17 07:10:00 | n |
| 183097 | IIEES SC | ILBA | Z | 0.08 | 1 | 2023-06-16 09:56:20 | 2023-06-17 07:10:00 | n |
| 183098 | IIEES SC | GTMR | Z | 0.03 | 1 | 2023-06-16 09:56:51 | 2023-06-17 07:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GURO | Z | EPg | E | 2023-06-16 09:55:10 | 0 | y | 0 | 96 | 259 | ||
| IIEES SC | GURO | Z | ESg | E | 2023-06-16 09:55:22 | -0.1 | y | 0 | 96 | 259 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-06-16 09:55:19 | -0.5 | y | 0 | 153 | 62 | ||
| IIEES SC | GNI | Z | EPn | E | 2023-06-16 09:55:28 | 0 | y | 0 | 212 | 41 | ||
| IIEES SC | MRD | Z | EPn | E | 2023-06-16 09:55:29 | -0.9 | y | 0 | 225 | 90 | ||
| IIEES SC | AZR | Z | EPn | E | 2023-06-16 09:55:37 | 0.3 | y | 0 | 276 | 115 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-06-16 09:55:44 | -0.3 | y | 0 | 345 | 144 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-06-16 09:55:48 | -5.6 | n | 4 | 415 | 89 | ||
| IIEES SC | ARPR | Z | EPn | E | 2023-06-16 09:56:01 | 7.5 | n | 4 | 417 | 276 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-06-16 09:56:08 | 0.4 | y | 0 | 533 | 147 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-06-16 09:56:10 | 0.5 | y | 0 | 541 | 115 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-06-16 09:56:10 | -0.6 | y | 0 | 551 | 137 | ||
| IIEES SC | KIV | Z | EPn | E | 2023-06-16 09:56:19 | 5.1 | n | 4 | 583 | 356 | ||
| IIEES SC | KCHF | Z | EPn | E | 2023-06-16 09:56:16 | -0.9 | y | 0 | 605 | 144 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-06-16 09:56:20 | 0.5 | y | 0 | 623 | 109 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-06-16 09:56:19 | -0.7 | y | 0 | 623 | 125 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-06-16 09:56:20 | 0.1 | y | 0 | 629 | 154 | ||
| IIEES SC | QABG | Z | EPn | E | 2023-06-16 09:56:25 | 0.4 | y | 0 | 664 | 120 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-06-16 09:56:34 | -3.8 | n | 4 | 772 | 127 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-06-16 09:56:51 | -0.5 | y | 0 | 880 | 142 | ||
| IIEES SC | GLO | Z | EPn | E | 2023-06-16 09:57:03 | -0.1 | y | 0 | 977 | 105 | ||
| IIEES SC | ABGH | Z | EPn | E | 2023-06-16 09:57:12 | -0.5 | y | 0 | 1053 | 102 | ||
| IIEES SC | NASN | Z | EPn | E | 2023-06-16 09:57:17 | -0.5 | y | 0 | 1095 | 127 | ||
| IIEES SC | ANAR | Z | EPn | E | 2023-06-16 09:57:23 | 0.1 | y | 0 | 1137 | 123 | ||
| IIEES SC | MRVT | Z | EPn | E | 2023-06-16 09:57:23 | -0.9 | y | 0 | 1142 | 96 | ||
| IIEES SC | SBZV | Z | EPn | E | 2023-06-16 09:57:44 | 0.1 | y | 0 | 1306 | 101 | ||
| IIEES SC | AHRM | Z | EPn | E | 2023-06-16 09:57:43 | -3.4 | n | 4 | 1329 | 145 | ||
| IIEES SC | KKHK | Z | EPn | E | 2023-06-16 09:58:06 | 0.5 | y | 0 | 1481 | 110 | ||
| IIEES SC | TBJM | Z | EPn | E | 2023-06-16 09:58:18 | 0.3 | y | 0 | 1579 | 104 | ||
